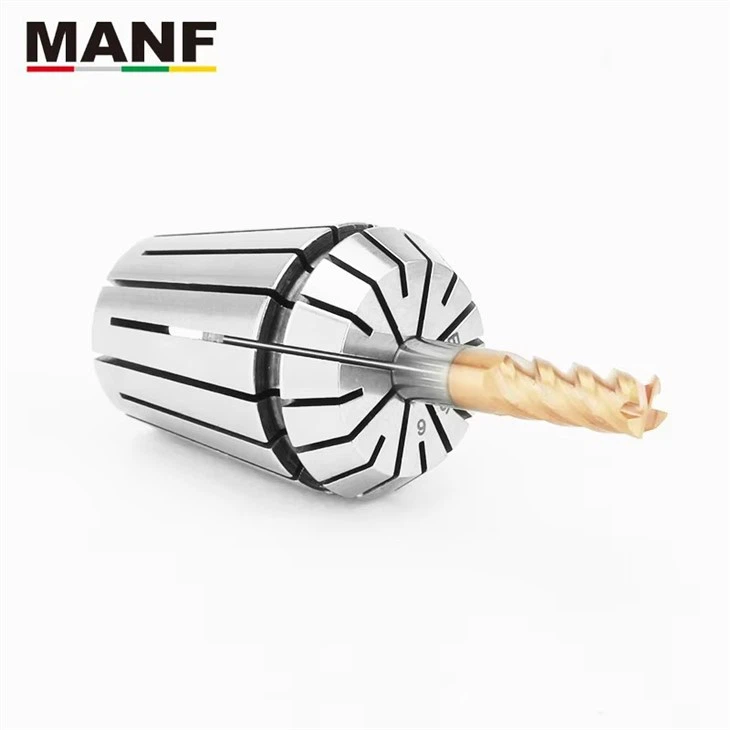

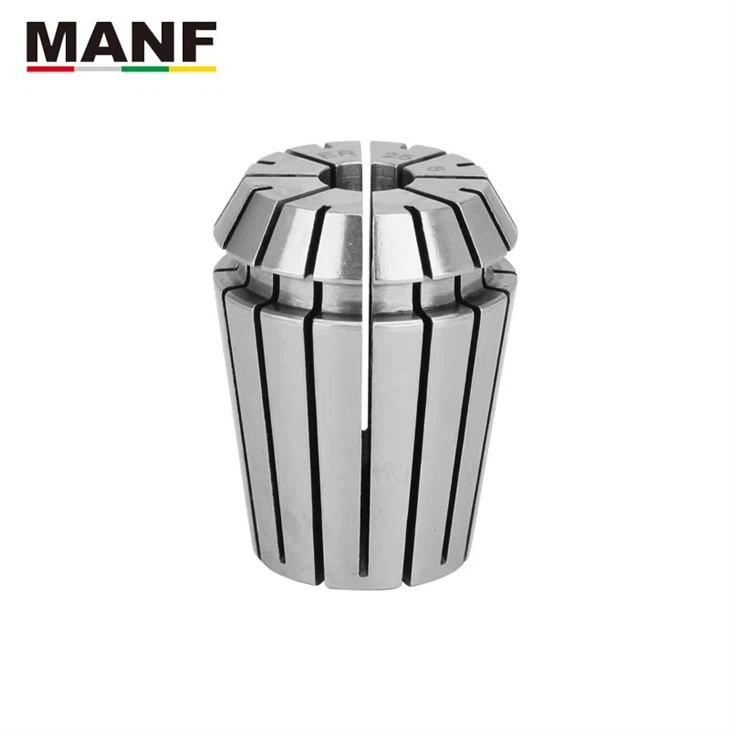

ER Spring Collet

1.Brand :MANF
2.Name :AA high precision collet clip

3.Specifications :ER8-ER50
4.Size :1mm-36mm

5.Accuracy: within 0.008mm

6.Features :65 manganese steel material, not easy to change
   High hardness, strong elasticity.

DM	ER8	ER11	ER16	ER20	ER25	ER32	ER40	ER50
DM	LD	LD	LD	LD	LD	LD	LD	LD
	13.5/8.45	18.5/11.5	27.5/17.0	31.5/21.0	34.0/26.0	40.0/33.0	46.0/41.0	60.0/51.0
1.0-0.5	ER8-1.0	ER11-1.0	ER16-1.0	ER20-1.0	ER25-1.0	ER32-1.0	ER40-1.0
1.5-1.0	ER8-1.5	ER11-1.5	ER16-1.5	ER20-1.5	ER25-1.5	ER32-1.5	ER40-1.5
2.0-1.5	ER8-2.0	ER11-2.0	ER16-2.0	ER20-2.0	ER25-2.0	ER32-2.0	ER40-2.0
2.5-2.0	ER8-2.5	ER11-2.5	ER16-2.5	ER20-2.5	ER25-2.5	ER32-2.5	ER40-2.5
3.0-2.5	ER8-3.0	ER11-3.0	ER16-3.0	ER20-3.0	ER25-3.0	ER32-3.0	ER40-3.0	ER50-3.0
3.5-3.0	ER8-3.5	ER11-3.5	ER16-3.5	ER20-3.5	ER25-3.5	ER32-3.5	ER40-3.5
4.0-3.5	ER8-4.0	ER11-4.0	ER16-4.0	ER20-4.0	ER25-4.0	ER32-4.0	ER40-4.0	ER50-4.0
4.5-4.0	ER8-4.5	ER11-4.5	ER16-4.5	ER20-4.5	ER25-4.5	ER32-4.5	ER40-4.5
5.0-4.5	ER8-5.0	ER11-5.0	ER16-5.0	ER20-5.0	ER25-5.0	ER32-5.0	ER40-5.0	ER50-5.0
5.5-5.0		ER11-5.5	ER16-5.5	ER20-5.5	ER25-5.5	ER32-5.5	ER40-5.5
5.0-5.5		ER11-16.0	ER16-6.0	ER20-6.0	ER25-6.0	ER32-6.0	ER40-6.0	ER50-6.0
6.5-6.0		ER11-6.5	ER16-6.5	ER20-6.5	ER25-6.5	ER32-6.5	ER40-6.5
7.0-6.5		ER11-7.0	ER16-7.0	ER20-7.0	ER25-7.0	ER32-7.0	ER40-7.0	ER50-7.0
7.5-7.0			ER16-7.5	ER20-7.5	ER25-7.5	ER32-7.5	ER40-7.5
8.0-7.5			ER16-8.0	ER20-8.0	ER25-8.0	ER32-8.0	ER40-8.0	ER50-8.0
8.5-8.0			ER16-8.5	ER20-8.5	ER25-8.5	ER32-8.5	ER40-8.5
9.0-8.5			ER16-9.0	ER20-9.0	ER25-9.0	ER32-9.0	ER40-9.0	ER50-9.0
9.5-9.0			ER16-9.5	ER20-9.5	ER25-9.5	ER32-9.5	ER40-9.5
10.0-9.5			ER16-10.0	ER20-10.0	ER25-10.0	ER32-10.0	ER40-10.0	ER50-10.0
10.5-10.0				ER20-10.5	ER25-10.5	ER32-10.5	ER40-10.5
11.0-10.5				ER20-11.0	ER25-11.0	ER32-11.0	ER40-11.0	ER50-11.0
11.5-11.0				ER20-11.5	ER25-11.5	ER32-11.5	ER40-11.5
12.0-11.5				ER20-12.0	ER25-12.0	ER32-12.0	ER40-12.0	ER50-12.0
12.5-12.0				ER20-12.5	ER25-12.5	ER32-12.5	ER40-12.5
13.0-12.5				ER20-13.0	ER25-13.0	ER32-13.0	ER40-13.0	ER50-13.0
14.0-13.0					ER25-13.5	ER32-14.0	ER40-14.0	ER50-14.0
15.0-14.0					ER25-14.0	ER32-15.0	ER40-15.0	ER50-15.0
16.0-15.0					ER25-14.5	ER32-16.0	ER40-16.0	ER50-16.0
17.0-16.0						ER32-17.0	ER40-17.0	ER50-17.0
18.0-17.0						ER32-18.0	ER40-18.0	ER50-18.0
19.0-18.0						ER32-19.0	ER40-19.0	ER50-19.0
20.0-19.0						ER32-20.0	ER40-20.0	ER50-20.0
21.0-20.0							ER40-21.0	ER50-21.0
22.0-21.0							ER40-22.0	ER50-22.0
23.0-22.0							ER40-23.0	ER50-23.0
25.0-24.0							ER40-24.0	ER50-24.0
26.0-25.0							ER40-25.0	ER50-25.0
27.0-26.0							ER40-26.0	ER50-26.0
28.0-27.0								ER50-27.0
29.0-28.0								ER50-28.0
30.0-29.0								ER50-29.0
31.0-30.0								ER50-30.0
32.0-31.0								ER50-31.0
33.0-32.0								ER50-32.0
34.0-33.0								ER50-33.0
35.0-34.0								ER50-34.0
36.0-35.0								ER50-35.0





High-precision ER collet, 65 manganese steel material, high hardness, strong clamping force. Martensitic heat treatment method,
effectively avoids deformation and cracking. Two-pass finishing process, high polishing design, high elasticity, strong tensile strength,
carbon black phosphating for rust prevention. Widely used in milling, boring, drilling, tapping, and operations. Suitable for all types of milling machines, CNC, and engraving equipment. Made of 65 manganese titanium hardened steel. Made of 65 manganese titanium hardened steel, it has high elasticity and strong rigidity
High tensile strength, good clamping and fastening, and stable cutting.



MANF is a manufacturer specializing in the production and sales of CNC tools. We have very rich CNC tool marketing experience and are a high-end machinery and tool manufacturer that integrates new technologies. Our products cover turning, milling, drilling and threading, and toolholder clamping systems; including carbide inserts, CNC tool holders, Tungsten steel milling cutters, drill bits, reamers, taps, boring heads, tool holders, etc. are widely used in many industries such as aviation, medical equipment, automobile manufacturing, mold processing, and electronic technology. Moreover, we mainly serve the international community and have provided help to more overseas customers. From selection to processing, we can provide free technical support and have a complete after-sales service team. We are a trustworthy international trader of CNC tools.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
