Milling Machine
Your Professional Milling Machine Supplier
Kunshan Meiyaxing Hardware Machinery Co., Ltd. is a company specializing in the production and sales of metal cutting tools. With more than 20 years of experience, we set new technology, high-end machinery and tool manufacturers as one, to provide customers with quality tools, is a direct branch of Hong Kong Meiya International Trading company. Since the establishment of the company - always uphold the "quality", "professional" and "efficient" business philosophy. Founded the MANF brand, and with Japan Kyocera, Sumitomo, Mitsubishi, Taiwan ECHAIN, Germany C.P.T and other international brands trade cooperation.
Why Choose Us
Reliable Product Quality
We are proud of our high quality, cost-effective and good service, and have won the praise of customers in various industries such as aviation, medical equipment, automobile manufacturing, mold processing and electronic technology.
Good Service
High-quality after-sales service, tracking usage, and positive feedback. Rapid response within 24 hours.
Product Application
Our widely used in aviation, medical equipment, automobile manufacturing, mold processing and electronic technology and many other industries.
Technical Team
We not only provide high quality and efficient cutting tools, but also have a superb technical team to provide professional and detailed processing solutions.
Advantages of Milling Machine
Unrivaled Precision
Milling machines, especially CNC milling machines, are synonymous with precision. These machines operate with utmost accuracy, meticulously executing programmed instructions.
Automation and Efficiency
CNC milling machines, in particular, offer automation and efficiency that manual machines like knee mills can’t match. Once programmed, CNC mills can operate continuously, day and night, delivering consistent and high-quality results without operator fatigue or the need for constant supervision.
Versatility and Complexity
Milling machines are incredibly versatile, capable of handling a wide array of machining tasks. From basic drilling and contouring to complex 3D machining and multi-axis operations, they adapt seamlessly to various manufacturing needs.
Repetitive Accuracy
In manufacturing, the ability to replicate parts with consistent precision is invaluable. CNC milling machines excel in this regard, producing identical components with unwavering accuracy. This capability is crucial for mass production where tight tolerances and uniformity are essential.
Reduced Material Waste
Milling machines, especially CNC models, are known for their material efficiency. Precise toolpath planning and optimized cutting strategies help minimize material waste, making them both cost-effective and environmentally friendly.
Quick Setup and Changeovers
Compared to manual knee mills and other conventional machines, CNC milling machines boast faster setup times and changeovers. This agility proves indispensable in industries characterized by frequent job changes, where CNC mills can swiftly transition from one part to another with minimal downtime.
Enhanced Safety and Operator Comfort
CNC milling machines prioritize operator safety. With minimal operator interaction during the machining process, the risk of accidents is significantly reduced, resulting in a safer and more comfortable working environment.
Scalability
The scalability of milling machines ensures that there’s a suitable solution for every operation, from small-scale production to heavy-duty machining. Whether you require a compact gantry milling machine or a massive gantry mill, there’s a milling machine to match your needs, allowing your machining capabilities to grow in tandem with your business.
Quality Control and Reporting
CNC milling machines integrate quality control measures directly into the machining process. Real-time sensors and measurement devices monitor critical dimensions, enabling immediate adjustments and reducing the likelihood of defective parts.
Future-Proof Technology
Investing in milling machines, particularly CNC ones, is an investment in the future. These machines continually evolve, with manufacturers incorporating the latest advancements in automation, software, and tooling.
Types Of Milling Machine
The vertical mills are established with the spindle’s movement in a vertical fashion along the Z-axis, while the cutting tool performs its operation on this axis. These designs make them suitable for plunge cutting, a process through which the tool goes straight into the material for holes or depressions.
Horizontal Mills: Unlike vertical mills, the spindle of horizontal milling machines is placed horizontally and parallel to the work table. Therefore, it is suitable for slotting, grooving, and planning flat surfaces.
CNC mills are computerized controlled machines used to fabricate metals through the computer numerical control machining process whereby the computer programs the path to follow by the cutting tool.
Universal mills are unique and effective tools combining vertical and horizontal milling machines. This makes it possible to mount the spindle vertically or horizontally to facilitate a wide range of operations, including boring, cutting, shaping, and slitting.
Bed mills have a fixed table and offer rigid support, which is best for heavy-duty milling operations. The table of a bed milling machine is stationary, and unlike other milling equipment in which the table runs on the X and Y axis, the spindle goes up and down on the Z axis.
Structure And Parts Of Milling Machines
Base
The base is the foundational base component of the milling machine. The entire machine is mounted on the base. It is made of rigid materials like cast iron that can support the machine’s weight. Additionally, the base also absorbs the shock generated in the milling operation.
Column
The column is the frame on which the machine’s moving parts are based. It provides fixtures for the driving mechanism of the machine.
Knee
The knee of the milling machine is present over the base. It supports the weight of the work table. The knee contains a guideway and screw mechanism to change its height. It is attached to the column for vertical movement and support.
Saddle
The saddle connects the worktable to the milling machine knee. The saddle is connected to the knee with guideways. This helps in the movement of the worktable perpendicular to the column.
Spindle
The spindle is the part that mounts the cutting tool on the machine. In multi-axis milling machines, the spindle is capable of rotary movements.

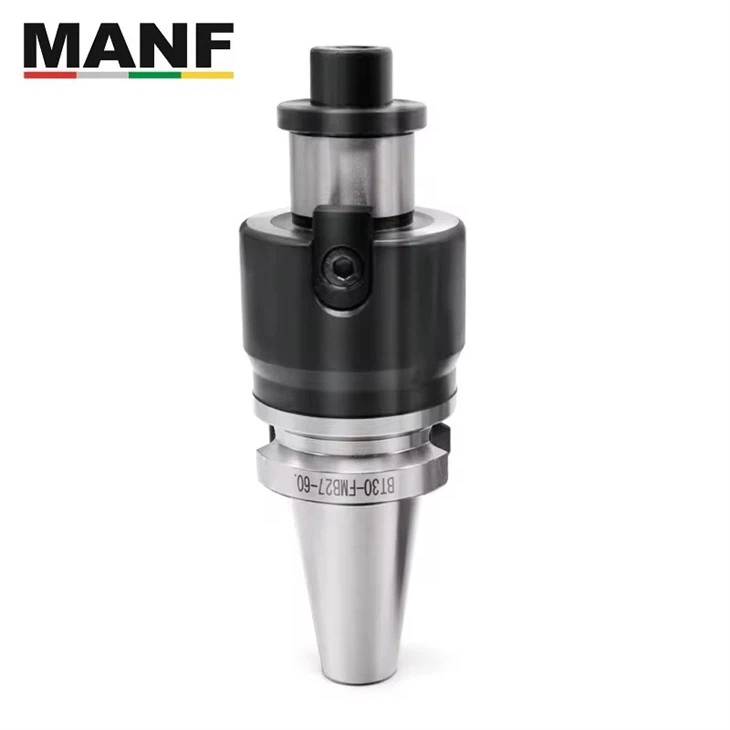

Arbor
Arbor is a type of tool adapter (or tool holder) that supports adding a side cutter or niche milling tools. It is aligned next to the spindle.
Worktable
The worktable is the milling machine part that holds the workpiece. The workpiece is tightly secured on the worktable with the help of clamps or fixtures. The table is usually capable of longitudinal movements. Multi-axis milling machines contain rotary tables.
Headstock
The Headstock is the part that holds the spindle and connects it to the rest of the machine. The movement of the spindle is made possible with the motors in the headstock.
Overarm
The overarm bears the weight of the spindle and arbor assembly. It is present on top of the column. It is also known as an overhanging arm.
Milling Machine workflow
Part Design
The process starts with designing the part to have a clear understanding of what is required. For CNC mills, the design process includes programming and making machine instruction files with CAM software. For manual milling machines, the part design can be a basic blueprint that includes the various dimensions.
Machine Setup
The milling machine requires a proper setup before the machining starts. This includes adjusting the various settings. For CNC milling machines, the program is transferred to the control system. For manual milling machines, the various parameters of the machine are adjusted as per requirement.
Workpiece Fixture
The workpiece is mounted on the table securely. It is important to ensure that all the fixtures and clamps are tight. Any loose fixtures result in vibrations that can cause a poor-quality milling operation or even damage to the parts.
Milling
The milling process begins after the workpiece is fixed and the machine setup is complete. The rotary cutters remove material from the surface a little at a time. The path and shape of material removal depend on the type of milling tool and the required shape. The rate of cutting tool movement into the workpiece is called the feed rate.
Part Inspection
Once the milling cycle completes, the part is removed and inspected for quality. If the quality is up to the required standard, the part is removed and sent for further processing. If it needs further work, the part undergoes another milling pass.
What Materials Can a Milling Machine Cut
Metals and Alloys
Includes steel, copper, aluminum, brass, tin, titanium, stainless steel, etc.
01
Plastics
Includes ABS, nylon, UPVC, HDPE, etc.
02
Ceramics
Includes tiles, porcelain, Alumina, glass, etc.
03
Composites
Includes FRP, Carbon, etc.
04
Wood
Includes softwoods, hardwoods, laminates, engineered woods, etc.
05
