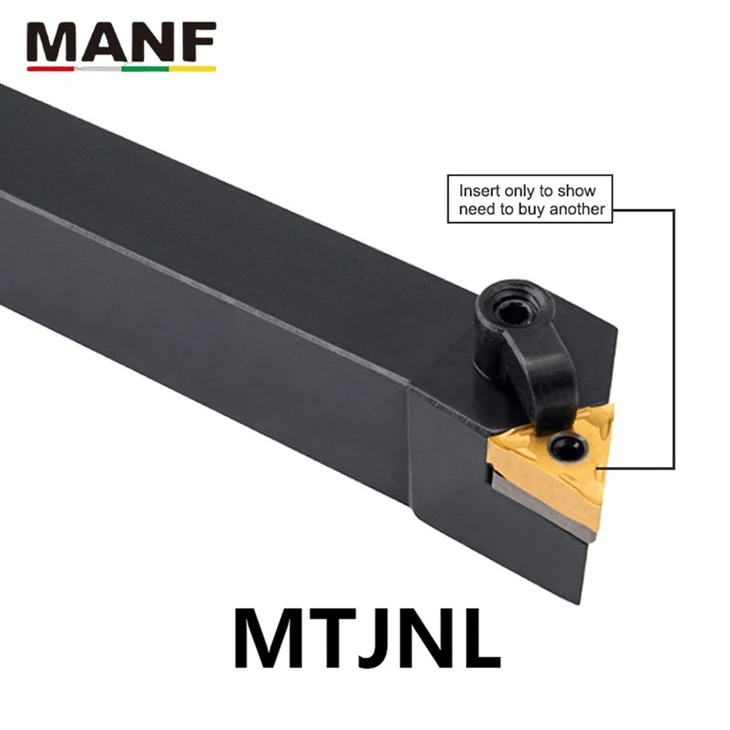

MTJNR MTJNL 93 Degrees External Lathe Tools



Product Name: MTJNR MTJNL 93 degrees External Lathe Tools

Brand name: MANF

Place of origin: China

Raw material: Steel

Clamping Type: M-type

Toolholder shape: 93°

Hardness: 45°

Diameter: 16-32mm

Length: 100-170mm

Surface color: Black color

Insert: TNMG1604, TNMG2204

Controlling mode: CNC lathe, Turning machine

Insert Material: Copper, Aluminum, Alloy steel, Tool steel, Carbon steel, Cast Iron, Mold steel, Stainless steel





MTJNR-1616H16 MTJNL-1616H16

MTJNR-2020K16 MTJNL-2020K16

MTJNR-2525M16 MTJNL-2525M16

MTJNR-2020K22 MTJNL-2020K22

MTJNR-2525M22 MTJNL-2525M22

MTJNR-3232P16 MTJNL-3232P16

MTJNR-3232P22 MTJNL-3232P22

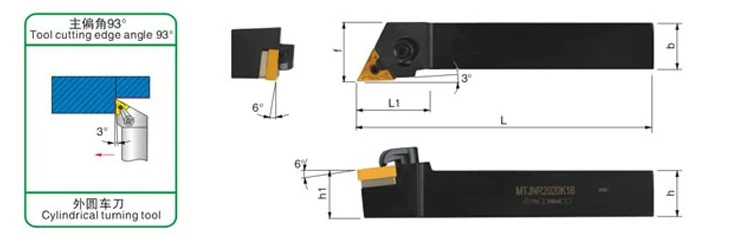

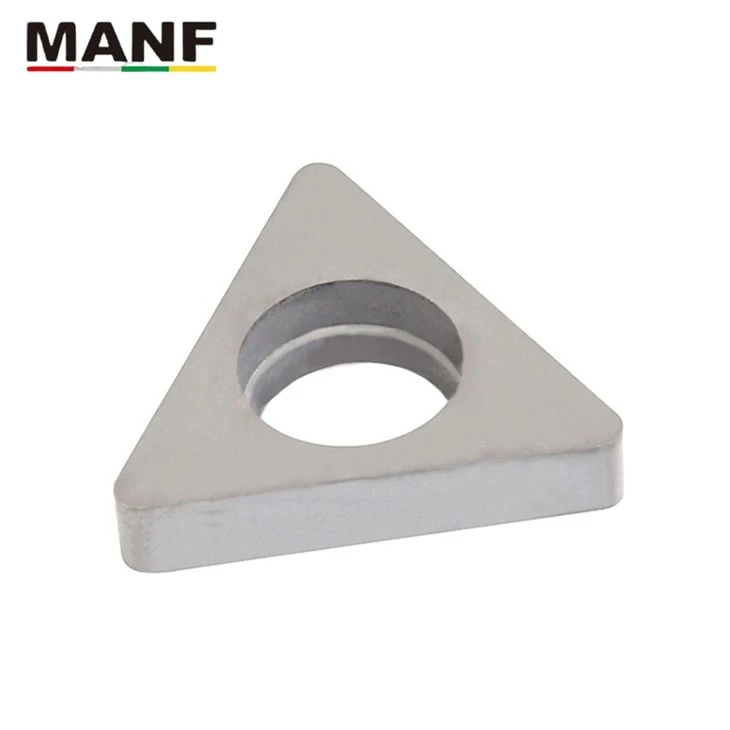

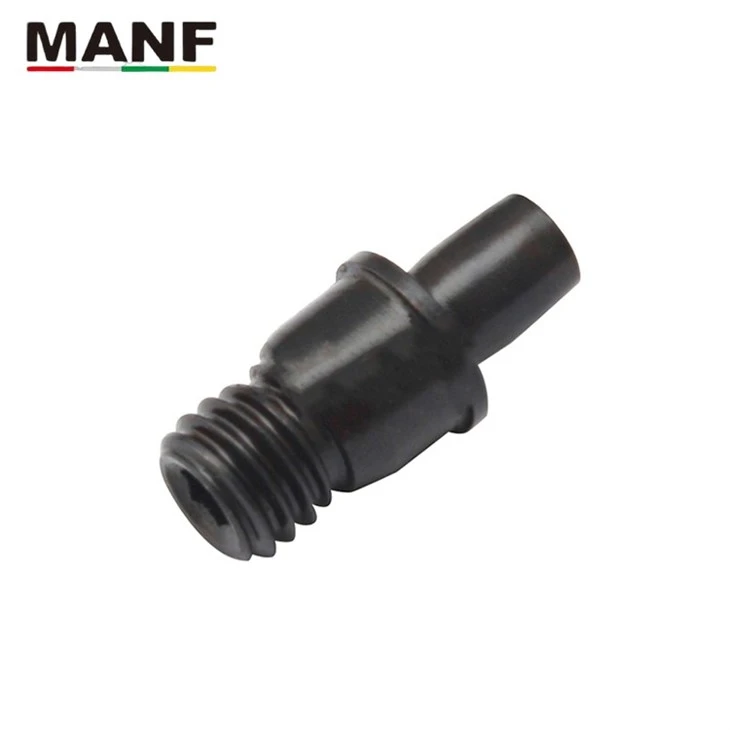

Type	Insert	Specification						Shim	Pin	Clamp	Screw	Wrench
		h	b	L	L1	H1	f
MTJNR/L1616H16	TN££1604££	16	16	100	30	16	20	MT1603	CTM513	HL1813	ML0625	L2.0 L3.0
MTJNR/L2020K16		20	20	125	32	20	25
MTJNR/L2525M16		25	25	150	34	25	32
MTJNR/L3232P16		32	32	170	36	32	40
MTJNR/L2020K22	TN££2204££	20	20	125	37	20	25	MT2204	CTM617	HL1917	ML0830	L2.5 L4.0
MTJNR/L2525M22		25	25	150	38	25	32
MTJNR/L3232P22		32	32	170	40	32	40





MTJNR MTJNL tool bar adopts the free forging process, using the impact force, the metal is free to deform in all directions between the anvil face, eliminating the shrinkage hole, shrinkage loose, porosity and other defects, so that the tool bar has higher mechanical properties. The use of high temperature heat treatment process, the selection of water, oil and other materials low temperature rapid cooling, high temperature tempering, greatly improve the strength of the tool, hardness, wear resistance, fatigue strength and toughness, surface bright.



MANF is one of the largest manufacturers of 93-degree MTJNR CNC lathe external tool holders in China. We have a professional factory, can produce cheap 93 degrees MTJNR CNC lathe outside tool holder for you. We accept non-standard customization, and accept wholesale, we will provide you with a discount according to the quantity.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
