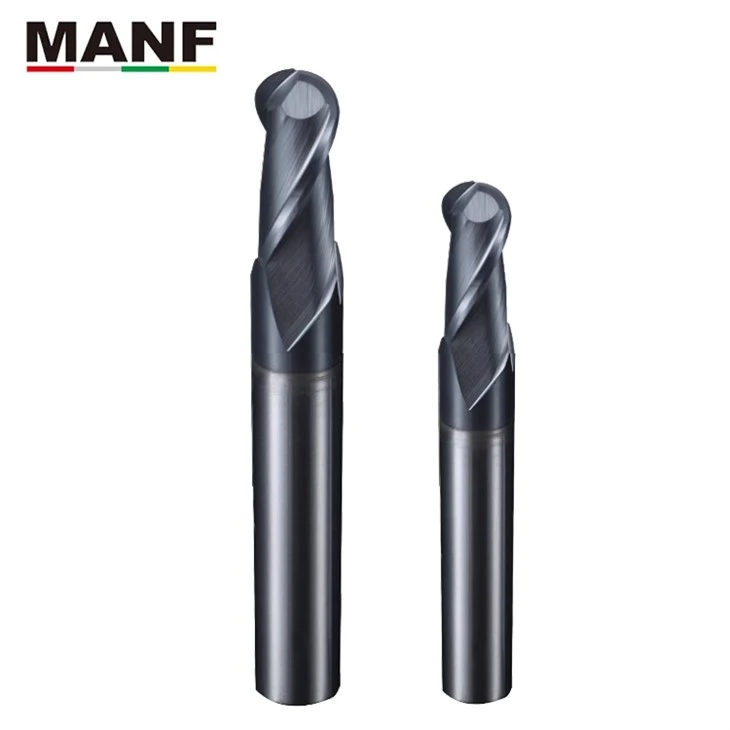

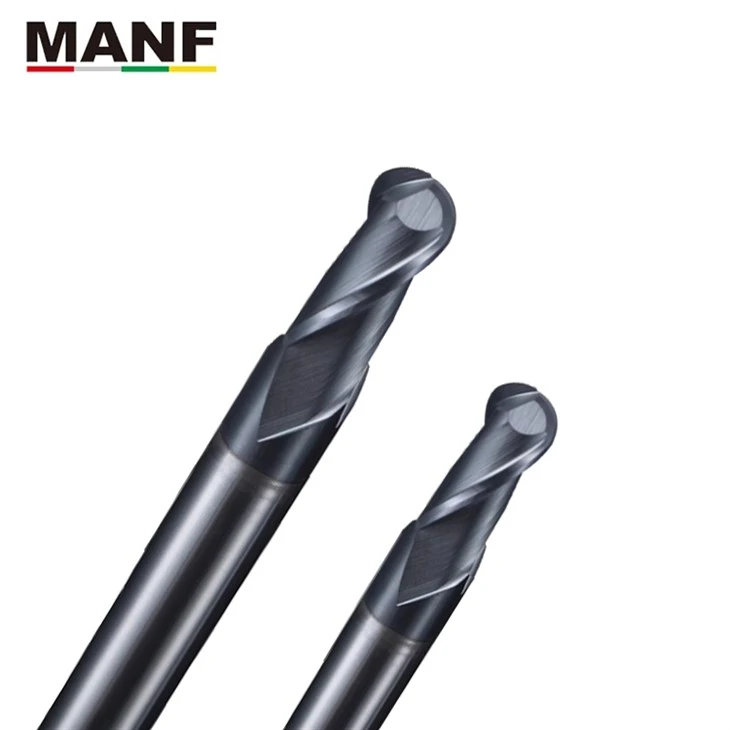

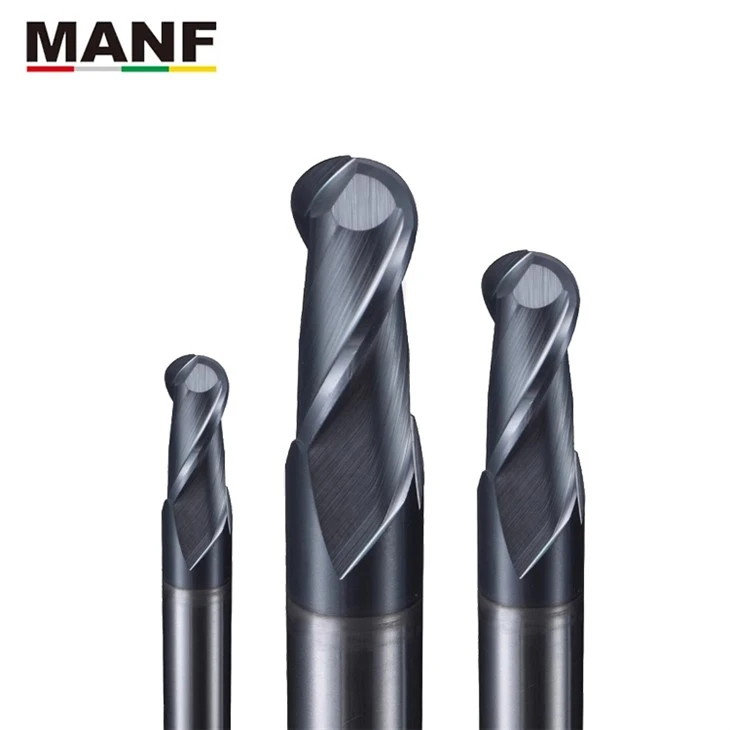

HRC50 Tungsten Ball Nose End Mill



1. Brand name :MANF

2. Origin: China

3. Hardness :HRC50

6. Type: Ball Nose End Mill

7. Flute :2 Flute

8. Spiral Angle :30°

9. Diameter: R0.5-R8.0

10. Total length :75-200mm

11. Coating/covering: Black coating

12. Control mode: CNC milling machine

13. Working data: various kinds of steel







Specification	Radius(1/2d)	L2	L	D
R0.5x4Dx2Tx75L	R0.50	2	75	4
R0.5x6Dx2Tx75L	R0.50	2	75	6
R0.75x4Dx2Tx75L	R0.75	3	75	4
R0.75x6Dx2Tx75L	R0.75	3	75	6
R1.0x4Dx2Tx75L	R1.00.	4	75	4
R1.0x6Dx2Tx75L	R1.00	4	75	6
R1.5x3Dx2Tx75L	R1.50	6	75	3
R1.5x4Dx2Tx75L	R1.50	6	75	4
R1.5x6Dx2Tx75L	R1.50	6	75	6
R2.0x4Dx2Tx75L	R2.00	8	75	4
R2.0x6Dx2Tx75L	R2.00	8	75	6
R2.5x6Dx2Tx75L	R2.50	10	75	6
R2.5x5Dx2Tx75L	R2.50	10	75	5
R3.0x6Dx2Tx75L	R3.00	12	75	6
R4.0x8Dx2Tx75L	R4.00	16	75	8
R0.5x6Dx2Tx100L	R0.50	2	100	6
R0.75x6Dx2Tx100L	R0.75	3	100	6
R1.0x6Dx2Tx100L	R1.00	4	100	6
R1.5x6Dx2Tx100L	R1.50	6	100	6
R2.0x6Dx2Tx100L	R2.00	8	100	6
R2.5x6Dx2Tx100L	R2.50	10	100	6
R3.0x6Dx2Tx100L	R3.00	12	100	6
R4.0x8Dx2Tx100L	R4.00	16	100	8
R5.0x10Dx2Tx100L	R5.00	20	100	10
R6.0x12Dx2Tx100L	R6.00	24	100	12
R3.0x6Dx2Tx150L	R3.00	12	150	6
R4.0x8Dx2Tx150L	R4.00	16	150	8
R5.0x10Dx2Tx150L	R5.00	20	150	10
R6.0x12Dx2Tx150L	R6.00	24	150	12
R8.0x16Dx2Tx150L	R8.00	32	150	16
R4.0x8Dx2Tx200L	R4.00	16	200	8
R5.0x10Dx2Tx200L	R5.00	20	200	10
R6.0x12Dx2Tx200L	R6.00	24	200	12
R8.0x16Dx2Tx200L	R8.00	32	200	16





MANF HRC50 Tungsten Ball nose End Mill, sharp, wear-resistant, efficient processing, 0.2UM micro-particle tungsten carbide, sharp double edge, anti-seismic design of cutting edge. 30° spiral Angle design, dynamic milling, efficient knife. Cutting edge passivation treatment, after 5 times of fine grinding passivation treatment, smooth cutting. With higher wear resistance and strength, it can process steel parts, stainless steel. Cast iron, alloy steel and other materials below 50 degrees are more cost-effective, and spend less money to buy cheaper tools.



MANF Cutting Tools is a well-known cutting tool brand in China. We have a professional design team, from the early design to the late production of finished products, we have strict quality control every pass, and strive to kill cheap and easy to use tools around the world. And we can also accept non-standard customization, we can produce tools according to the needs of buyers that meet your requirements, even if your number is small, we can also accept orders. And we have a professional after-sales team, quality and quantity of products delivered to the hands of buyers. With our strong strength, we have been useful to many loyal users in many countries, we understand the needs of buyers in overseas countries, choose us, choose success.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
