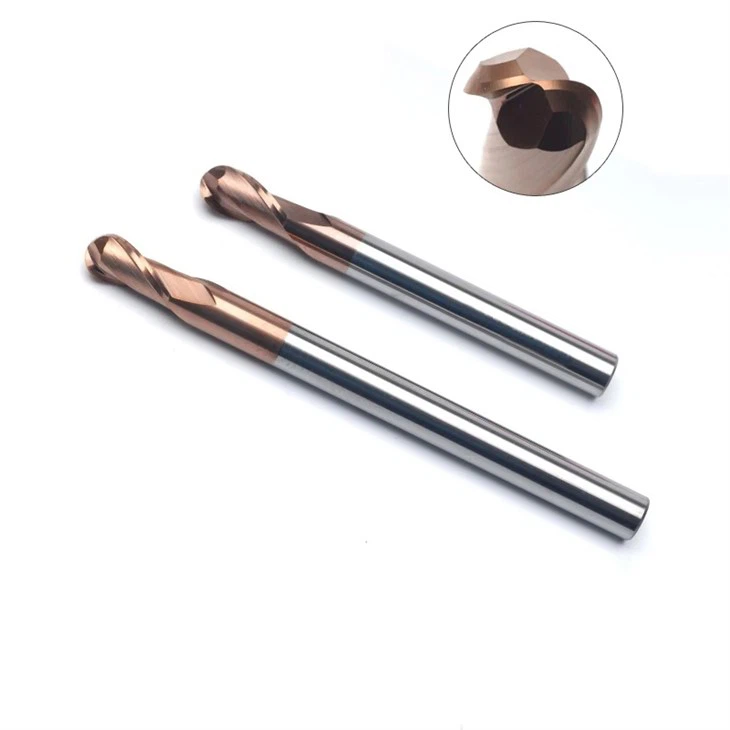

HRC55 2 Flute Ball Nose End Mill
2. Origin: China
3. Hardness: HRC55°
4. Type: Ball Nose End Mill
5. Flute: 2 Flute
Product Parameters
1. Brand name :MANF
2. Origin: China
3. Hardness :HRC55°
6. Type: Ball Nose End Mill
7. Flute :2 Flute
8. Spiral Angle :30°
9. Diameter: R0.5-R8.0
10. Total length :50-100mm
11. Coating/covering: Bronze coating
12. Control mode: CNC milling machine
13. Working data: Suitable for HRC≤55° carbon steel, die steel, alloy steel, tool steel, stainless steel, cast iron and so on.
Model Number
|
Specification |
Radius(1/2d) |
L2 |
L |
D |
|
HRC55°0.5x2.0x50Lx4Dx2T(Q550) |
RO.50 |
2.0 |
50 |
4 |
|
HRC55°0.5x2.0x50Lx6Dx2T(Q550) |
R0.50 |
2.0 |
50 |
6 |
|
HRC55°0.75x3.0x50Lx4Dx2T(Q550) |
R0.75 |
3.0 |
50 |
4 |
|
HRC55°0.75x3.0x50Lx6Dx2T(Q550) |
R0.75 |
3.0 |
50 |
6 |
|
HRC55°1.0x4.0x50Lx4Dx2T(Q550) |
R1.00. |
4.0 |
50 |
4 |
|
HRC55°1.0x4.0x50Lx6Dx2T(Q550) |
R1.00 |
4.0 |
50 |
6 |
|
HRC55°1.25x5.0x50Lx4Dx2T(Q550) |
R1.25 |
5.0 |
50 |
4 |
|
HRC55°1.25x5.0x50Lx6Dx2T(Q550) |
R1.25 |
5.0 |
50 |
6 |
|
HRC55°1.5x6.0x50Lx3Dx2T(Q550) |
R1.50 |
6.0 |
50 |
3 |
|
HRC55°1.5x6.0x50Lx4Dx2T(Q550) |
R1.50 |
6.0 |
50 |
4 |
|
HRC55°1.5x6.0x50Lx6Dx2T(Q550) |
R1.50. |
6.0 |
50 |
6 |
|
HRC55°1.75x7.0x50Lx4Dx2T(Q550) |
R1.75 |
7.0 |
50 |
4 |
|
HRC55°1.75x7.0x50Lx6Dx2T(Q550) |
R1.75 |
7.0 |
50 |
6 |
|
HRC55°2.0x8.0x50Lx4Dx2T(Q550) |
R2.00 |
8.0 |
50 |
4 |
|
HRC55°2.0x8.0x50Lx6Dx2T(Q550) |
R2.00 |
8.0 |
50 |
6 |
|
HRC55°R2.5x8.0x50Lx5Dx2T(Q550) |
R2.50 |
8. 0 |
50 |
5 |
|
HRC55°R2.5x8.0x50Lx6Dx2T(Q550) |
R2.50 |
8.0 |
50 |
6 |
|
HRC55°R3.0x9.0x50Lx6Dx2T(Q550) |
R3.00 |
9.0 |
50 |
6 |
|
HRC55°R4.0x12x60Lx8Dx2T(Q550) |
R4.00 |
12.0 |
60 |
8 |
|
HRC55°R5.0x15x75Lx10Dx2T(Q550) |
R5.00 |
15.0 |
75 |
10 |
|
HRC55°R6.0x18x75Lx12Dx2T(Q550) |
R6.00 |
18.0 |
75 |
12 |
|
HRC55°R8.0x24x100Lx16Dx2T(Q550) |
R8.00 |
24.0 |
100 |
16 |
|
HRC55°R10.0x30x100Lx20Dx2T(Q550) |
R10.0 |
30.0 |
100 |
20 |
Performance Advantage
3.MANF HRC55 2 Flute Ball Nose End Mill, using a new fine grained tungsten steel base material with excellent wear resistance and strength, exclusive Full milling cutter for high hardness and high speed cutting applications. The edge is covered with bronzing nano paint
The layer can directly perform high-speed roughing and fine machining of metal materials below 55 degrees
Reduce the number of tool changes to improve machine operation rate, save production time, to cut
Face milling and side milling mainly. Customers can extend the service life of the milling cutter by properly reducing the cutting speed and feed speed during use. When working, it is necessary to add cutting fluid to protect the edge, so that the cutting is smoother. When there is residual oxide film or other hardened layer on the surface of the workpiece, reversible milling can remove it.
4.MANF is One of the biggest producers and distributors of external tool holders for 95-degree MWLNR CNC lathes in China is MANF. Our skilled workshop can create cost-effective and superior 95-degree MWLNR CNC lathe outer tool holders for you. We also welcome special orders that are not typical, and we will provide you quantity-based discounts. Enjoy premium quality, affordable pricing, and a first-rate after-sales support system.
About Transportation
We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
