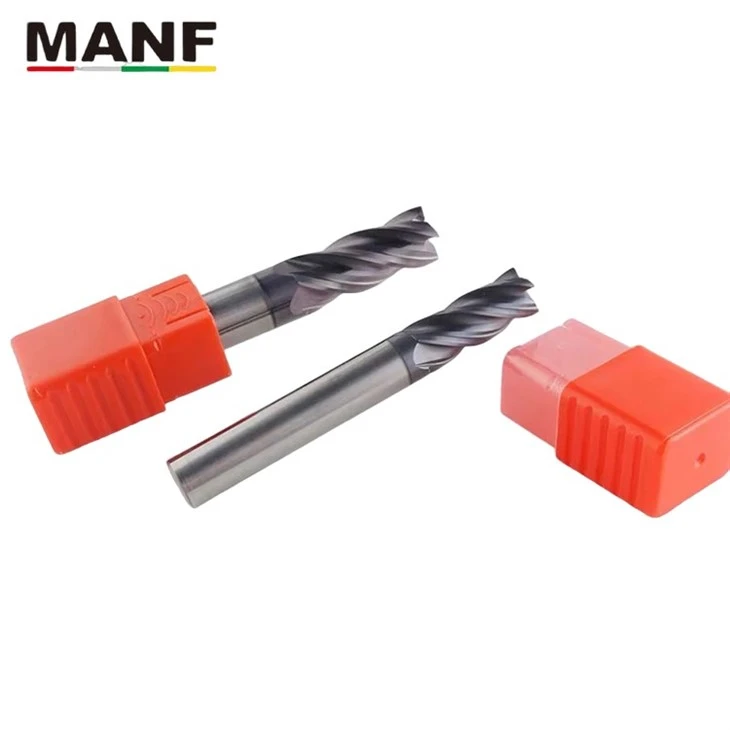

HRC50 Tungsten Steel End Mill



1. Brand name: MANF

2. Origin: China

3. Hardness: hrc50

4. Type: square, flat end mill

5. Flute: 4 Flute

6. Spiral Angle: 45°

7. Diameter: 1mm-20mm

8. Total length: 50-100mm

9. Coating/covering: Black coating

10. Control mode: CNC milling machine

11. Working data: various kinds of steel







Specification	D1	D	T	L1	L
1.0x4Dx4Tx50L	1.0	4	4	3	50
1.5x4Dx4Tx50L	1.5	4	4	4	50
2.0x4Dx4Tx50L	2.0	4	4	6	50
2.5x4Dx4Tx50L	2.5	4	4	8	50
3.0x4Dx4Tx50L	3.0	4	4	8	50
4.0x4Dx4Tx50L	4.0	4	4	10	50
5.0x6Dx4Tx50L	5.0	6	4	13	50
6.0x6Dx4Tx50L	6.0	6	4	15	50
8.0x8Dx4Tx60L	8.0	8	4	20	50
10.0x10Dx4Tx75L	10	10	4	25	75
12.0x12Dx4Tx75L	12	12	4	30	75





1) Double edge belt design Double-edged belt upgrade design, better wear resistance than ordinary double-edged belt, improve product life and reduce product burrs.

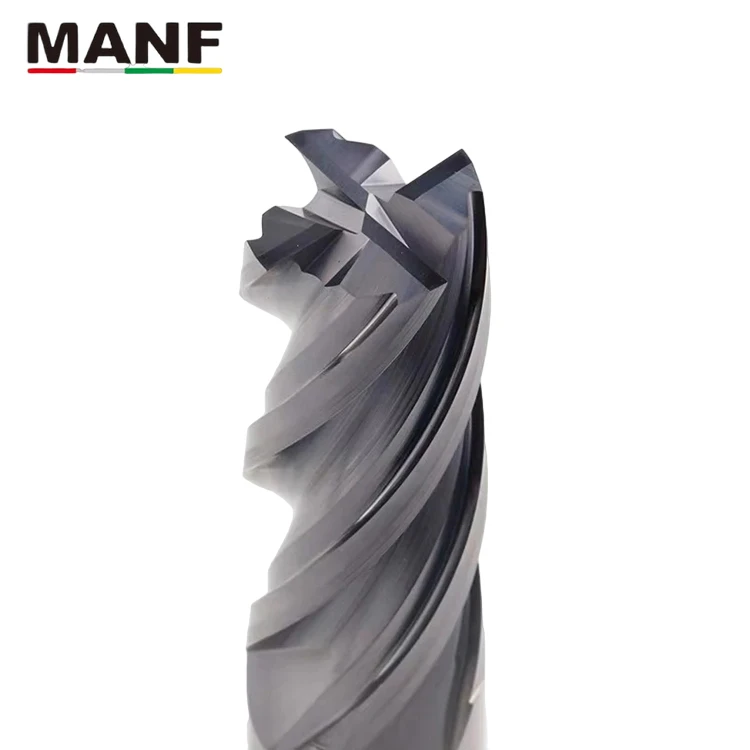

2) Blade design ​The spiral meter adopts the double tool and the design of the large chip-discharge groove greatly improves the fluency of the chip removal and makes the workpiece more glossy and beautiful.

3) TIAIN Coating ​The blade Tiain coating design improves the tool's high thermal stability, hardness and reduces the broken milling cutters.

4) Imported tungsten steel bar ​Selected imported ultra-fine ultra-fine particles and high hardness tungsten steel bars to ensure the performance of each Milling cutter.



MANF is a CNC cutter manufacturer specializing in the production and sales of milling cutters. Our milling cutters are made of high hardness cemented carbide raw materials, with high durability and strength, long groove depth, and very high cost performance. It is suitable for metal roughing and finishing less than 55HRC, reducing the number of tool change and shaking during processing, saving production time and improving efficiency. We can also make non-standard products according to the needs of buyers, and we can give corresponding discounts according to the number of buyers. We are trying to actively expand overseas partners, to ensure that in the future fierce competition in the market to occupy an advantage, win-win cooperation, look forward to working with you.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
