HRC60 Tungsten Steel End Mill



1. Brand name: MANF

2. Origin: China

3. Hardness: hrc60

4. Type: square, flat end mill

5. Flute: 4 Flute

6. Spiral Angle: 45°

7. Diameter: 1mm-20mm

8. Total length: 75-150mm

9. Coating/covering: Black coating

10. Control mode: CNC milling machine

11. Working data: various kinds of steel

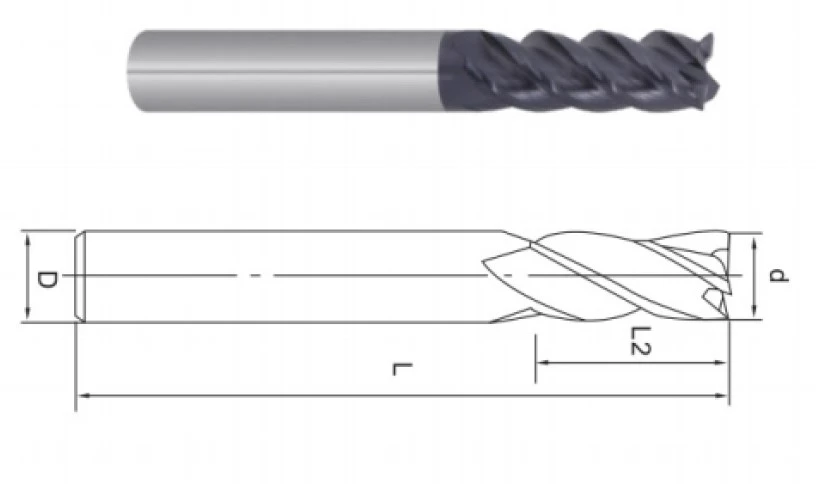

Specification	d	L2	L	D
1.0x4Dx4Tx50L	1.0	3.0	50	4
1.5x4Dx4Tx50L	1.5	4.5	50	4
2.0x4Dx4Tx50L	2.0	6.0	50	4
2.5x4Dx4Tx50L	2.5	7.0	50	4
3.0x4Dx4Tx50L	3.0	8.0	50	4
3.5x4Dx4Tx50L	3.5	10.0	50	4
4.0x4Dx4Tx50L	4.0	11.0	50	4
4.5x4Dx4Tx50L	4.5	13.0	50	6
5.0x6Dx4Tx50L	5.0	13.0	50	6
5.5x6Dx4Tx50L	5.5	13.0	50	6
6.0x6Dx4Tx50L	6.0	15.0	50	6
6.5x8Dx4Tx60L	6.5	17.0	60	8
7.0x8Dx4Tx60L	7.0	17.0	60	8
7.5x8Dx4Tx60L	7.5	17.0	60	8
8.0x8Dx4Tx60L	8.0	20.0	60	8
8.5x10Dx4Tx75L	8.5	23.0	75	10
9.0x10Dx4Tx75L	9.0	23.0	75	10
9.5x10Dx4Tx75L	9.5	25.0	75	10
10.0x10Dx4Tx75L	10.0	30.0	75	10
10.5x12Dx4Tx75L	10.5	25.0	75	12
11.0x12Dx4Tx75L	11.0	28.0	75	12
11.5x12Dx4Tx75L	11.5	28.0	75	12
12.0x12Dx4Tx75L	12.0	30.0	75	12
13.0x14Dx4Tx100L	13.0	33.0	100	14
14.0x14Dx4Tx100L	14.0	35.0	100	14
16.0x16Dx4Tx100L	16.0	40.0	100	16
20.0x20Dx4Tx100L	20.0	45.0	100	20

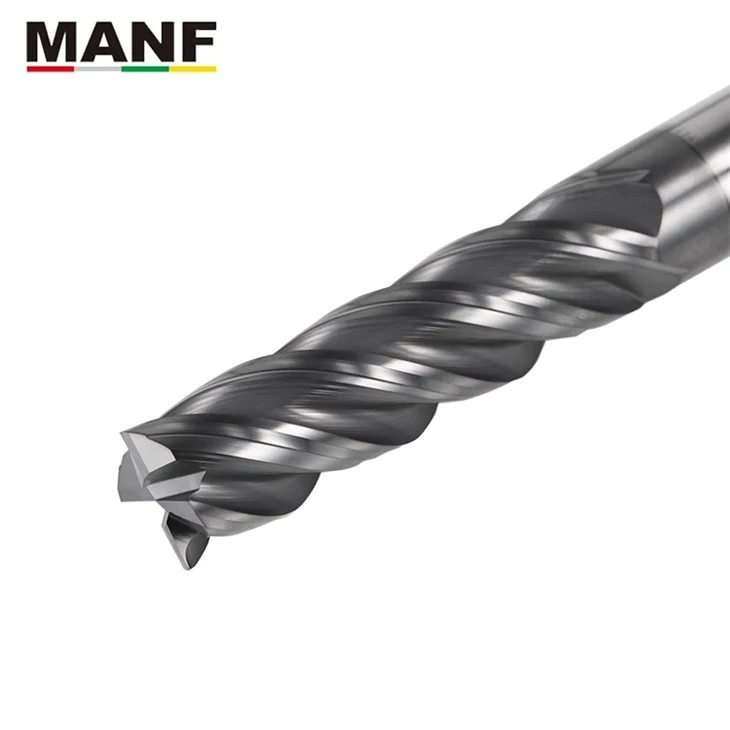

MANF HRC60 degree four-edge tungsten steel milling cutter, can process applicable materials: ordinary steel, stainless steel, carbon steel, die steel, all kinds of hard and soft wood, high hardness steel, etc. MANF tungsten steel milling cutter adopts high-quality imported substrate, selected high-quality tungsten steel rod, with ultra-high wear resistance and high toughness. Surface passivation, corrosion resistance is not easy to oxidize.



To further improve the surface finish of the milling cutter and ensure the fastness and service life of the coating. The use of large core diameter design greatly increases the rigidity and shock resistance of the tool, reduce the broken tool, fine grinding, cutting edge magnification without micro-missing, imported Walter five-axis grinding machine fine grinding, higher precision and better stability. High speed cutting, smooth chip discharge without residue, large core diameter design to enhance rigidity, large chip discharge groove design, reduce cutting resistance. MANF can be trusted with high performance manufacturing and inspection equipment for each milling cutter.



MANF is a CNC cutter manufacturer specializing in the production and sale of milling cutters. All of MANF's milling cutters are subjected to a strict three-way test to ensure that every cutter received by the customer is of the same quality and more stable for customer trials. Our warehouse strength is strong, powerful and efficient storage facilities ensure shipment efficiency. We are factory direct sales, put an end to middlemen to earn the difference, the price is cheaper. At present, a large part of our turnover comes from overseas, so we better understand the needs of overseas customers, we not only provide high quality, efficient cutting tools, but also have a superb technical team to provide professional and detailed processing solutions. We are trying to actively expand overseas partners, to ensure that in the future fierce competition in the market to occupy an advantage, win-win cooperation, look forward to working with you.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
