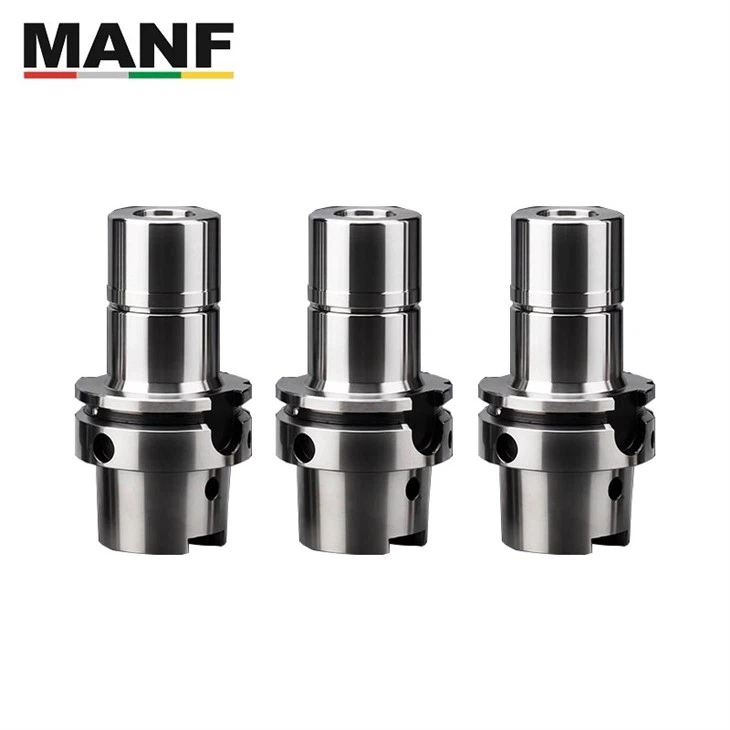

High Precision Toolholders

High Precision Toolholders

1. Brand: MANF
2. Name :HSK63-SK shank
3. Hardness :HRC58°±2
4. Surface roughness :>0.8mm
5. Material :20CRMNTI
6. Accuracy :0.001mm
7. Roundness :<0.8μ
8. Collet: SK collet
9. Clamping range: 1-6,2-10,3-16,3-20,3-25

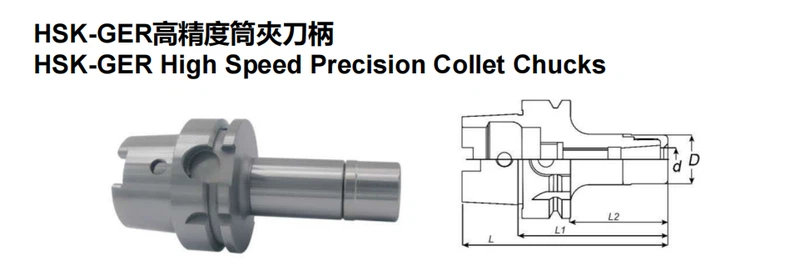

Model	od Range	D	L	L1	L2
HSK32E-GSK06-50	1-6	19	66	50	30
HSK32E-GSK10-50	2-10	27	66	50	30
HSK40E-GSK06-65	1-6	19	85	65	45
HSK40E-GSK10-65	2-10	27	85	65	45
HSK40E-GSK10-100	2-10	27	120	100	80
HSK50E-GSK06-70	1-6	19	95	70	44
HSK50E-GSK10-70	2-10	27	95	70	44
HSK50E-GSK16-70	3-16	40	95	70	44
HSK63F-GSK10-70	2-10	27	102	70	44
HSK63F-GSK10-100	2-10	27	132	100	74
HSK63F-GSK10-150	2-10	27	182	150	124
HSK63F-GSK13-70	3-13	33	102	70	44
HSK63F-GSK13-100	3-13	33	132	100	74
HSK63F-GSK13-150	3-13	33	182	150	124
HSK63F-GSK16-70	3-16	40	102	70	44
HSK63F-GSK16-100	3-16	40	132	100	74
HSK63F-GSK16-150	3-16	40	182	150	124
HSK63F-GSK20-80	3-20	48	112	80	54
HSK63F-GSK20-100	3-20	48	132	100	74
HSK63F-GSK20-150	3-20	48	182	150	124
HSK63A-GSK06-70	1-6	19	102	70	44
HSK63A-GSK06-100	1-6	19	132	100	74
HSK63A-GSK06-130	1-6	19	162	130	104
HSK63A-GSK06-150	1-6	19	182	150	124
HSK63A-GSK10-70	2-10	27	102	70	44
HSK63A-GSK10-100	2-10	27	132	100	74
HSK63A-GSK10-130	2-10	27	162	130	104
HSK63A-GSK10-150	2-10	27	182	150	124
HSK63A-GSK10-160	2-10	27	192	160	134
HSK63A-GSK13-70	3-13	33	102	70	44
HSK63A-GSK13-100	3-13	33	132	100	74
HSK63A-GSK13-130	3-13	33	162	130	104
HSK63A-GSK13-150	3-13	33	182	150	124
HSK63A-GSK13-160	3-13	33	192	160	134
HSK63A-GSK16-70	3-16	40	102	70	44
HSK63A-GSK16-100	3-16	40	132	100	74
HSK63A-GSK16-130	3-16	40	162	130	104
HSK63A-GSK16-150	3-16	40	182	150	124
HSK63A-GSK16-160	3-16	40	192	160	134
HSK63A-GSK20-70	3-20	48	102	70	44
HSK63A-GSK20-100	3-20	48	132	100	74
HSK63A-GSK20-130	3-20	48	162	130	104
HSK63A-GSK20-160	3-20	48	192	160	134
HSK63A-GSK20-200	3-20	48	232	200	174
HSK63A-GSK25-100	3-25	55	132	100	74
HSK63A-GSK25-130	3-25	55	162	130	104
HSK63A-GSK25-160	3-25	55	192	160	134
HSK63A-GSK25-200	3-25	55	232	200	174
HSK100A-GSK06-105	1-6	19	155	105	76
HSK100A-GSK10-100	2-10	27	150	100	71
HSK100A-GSK10-160	2-10	27	210	160	131
HSK100A-GSK13-100	3-13	33	150	100	71
HSK100A-GSK13-160	3-13	33	210	160	131
HSK100A-GSK16-100	3-16	40	150	100	71
HSK100A-GSK16-160	3-16	40	210	160	131
HSK100A-GSK20-100	3-20	48	150	100	71
HSK100A-GSK20-120	3-20	48	170	120	91
HSK100A-GSK20-160	3-20	48	210	160	131
HSK100A-GSK25-100	3-25	55	150	100	71
HSK100A-GSK25-120	3-25	55	170	120	91
HSK100A-GSK25-160	3-25	55	210	160	131





3.Perfomrance advantage:

Tool handle dynamic balance principle:
The principle of dynamic balance of rotating tool is similar to that of general rotating parts
Measure the unbalanced weight and position, remove the eccentric weight or adjust the counterweight, etc
Method to achieve the balanced forward action balance setting, the tool processing is stable, the accuracy is more stable
The advantages of small vibration and high speed can implement high-speed machining tools, and the speed can be
Up to 30,000 RPM
