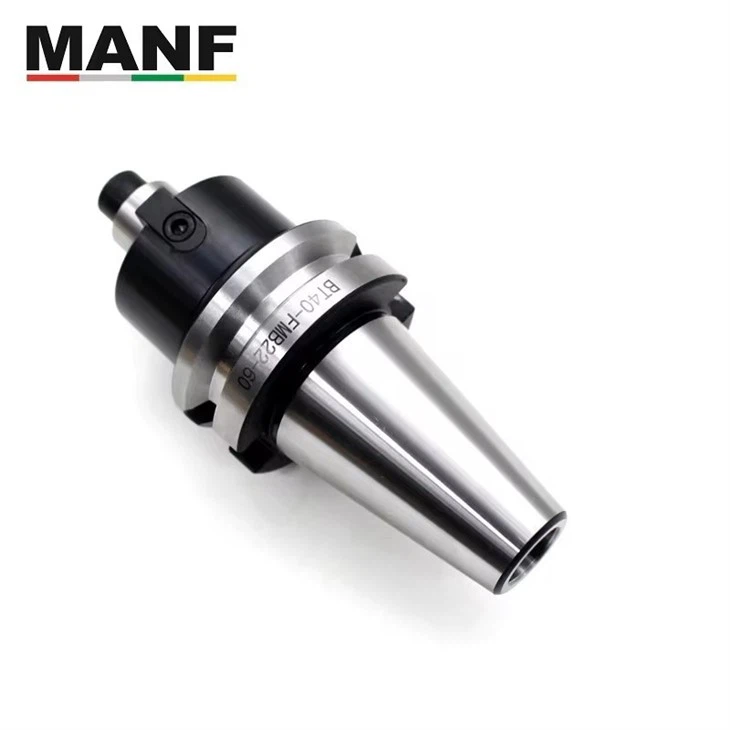

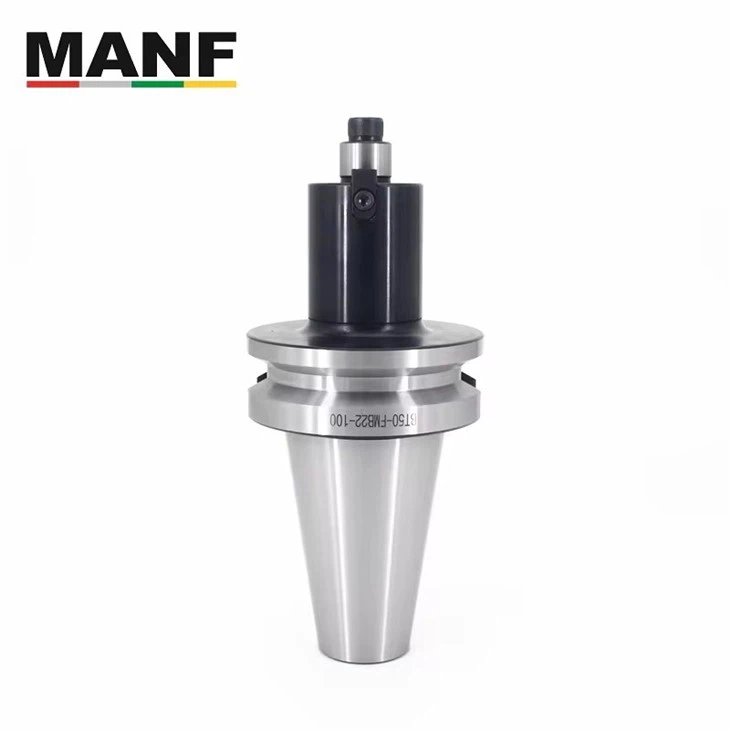

BT-FMA And FMB Face Mill Arbor

BT-FMA and FMB Face Mill Arbor

1.Brand: MANF

2.Body accuracy: ≤0.003
3.Material: 20CrMnTi
4.Hardness: HRC56-HRC58

5.Surface roughness :>0.8mm

6.Beat: 0.01-0.05

7.Free pull nails

8：Handle full inspection, internal and external inspection. All tool handles are fully inspected, the use of German imported testing instruments, military quality is tightly stitched, to ensure the size of each product composite requirements

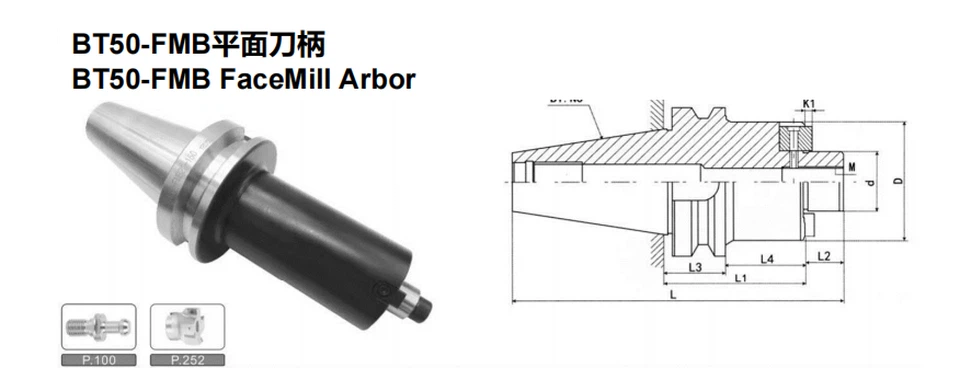

Model	L1	L	L2	L3	L4	d	D	K1	K2	M	KG
BT50-FMB16-60L	60	178.8	17	38	22	16	38	3.2	8	M8*1.25P	4.0
BT50-FMB16-100L	100	218.8	17	38	62	16	38	3.2	8	M8*1.25P	4.2
BT50-FMB16-150L	150	268.8	17	38	112	16	38	3.2	8	M8*1.25P	4.5
BT50-FMB22-60L	60	179.8	18	38	22	22	48-58	4.8	10	M10*1.5P	4.8
BT50-FMB22-100L	100	219.8	18	38	62	22	48-58	4.8	10	M10*1.5P	5.9
BT50-FMB22-150L	150	269.8	18	38	112	22	48-58	4.8	10	M10*1.5P	5.9
BT50-FMB22-200L	200	319.8	18	38	162	22	48-58	4.8	10	M10*1.5P	7.05
BT50-FMB22-250L	250	369.8	18	38	212	22	48-58	4.8	10	M10*1.5P	8.4
BT50-FMB22-300L	300	419.8	18	38	262	22	48-58	4.8	10	M10*1.5P	9.45
BT50-FMB22-350L	350	469.8	18	38	312	22	48-58	4.8	10	M10*1.5P	10.5
BT50-FMB22-400L	400	519.8	18	38	362	22	48-58	4.8	10	M10*1.5P	12
BT50-FMB22-450L	450	569.8	18	38	412	22	48-58	4.8	10	M10*1.5P	13.25
BT50-FMB22-500L	500	619.8	18	38	462	22	48-58	4.8	10	M10*1.5P	15.6
BT50-FMB22-550L	550	669.8	18	38	512	22	48-58	4.8	10	M10*1.5P	16.95
BT50-FMB22-600L	600	719.8	18	38	562	22	48-58	4.8	10	M10*1.5P	18
BT50-FMB22-650L	650	769.8	18	38	612	22	48-58	4.8	10	M10*1.5P	22
BT50-FMB22-700L	700	819.8	18	38	662	22	48-58	4.8	10	M10*1.5P	25







3.Perfomrance advantage:

1.Spindle conicity standard:JIS MAS 403 BT
2.With water through design that reduces vibration and steady for cutting.
3.Connecting part(d) designed for metric size.

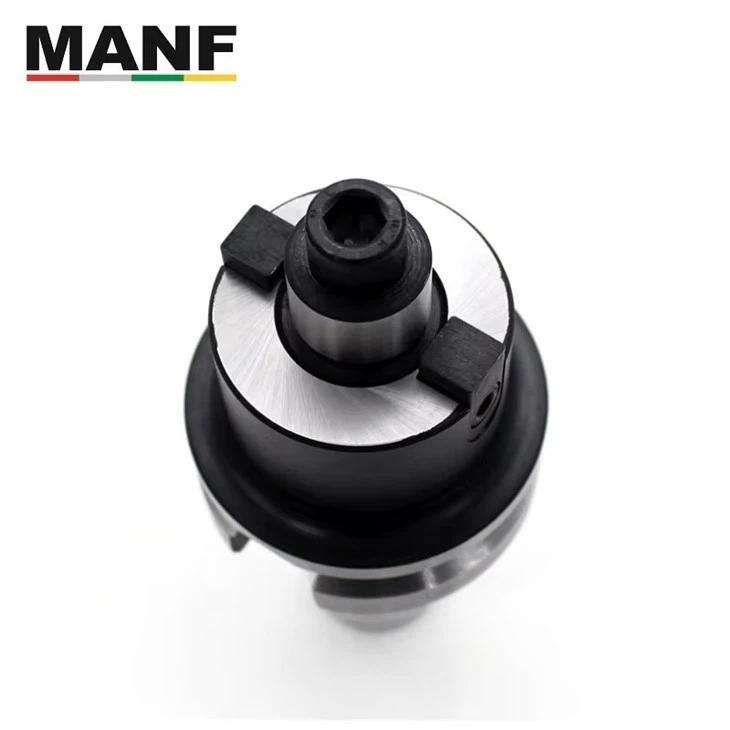

4.Tool holders with BT shank for face mill chuck, Face mill holders equipped with
screws and drive keys to assemble the mill cutter to holder.
5.Can be made upon requested dimensions.
0.005
6.The pull stud must purchase alone.
