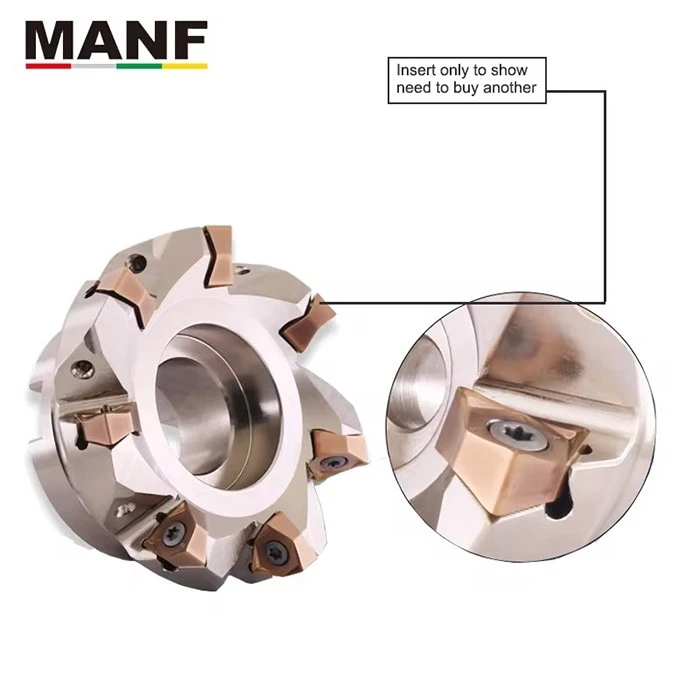

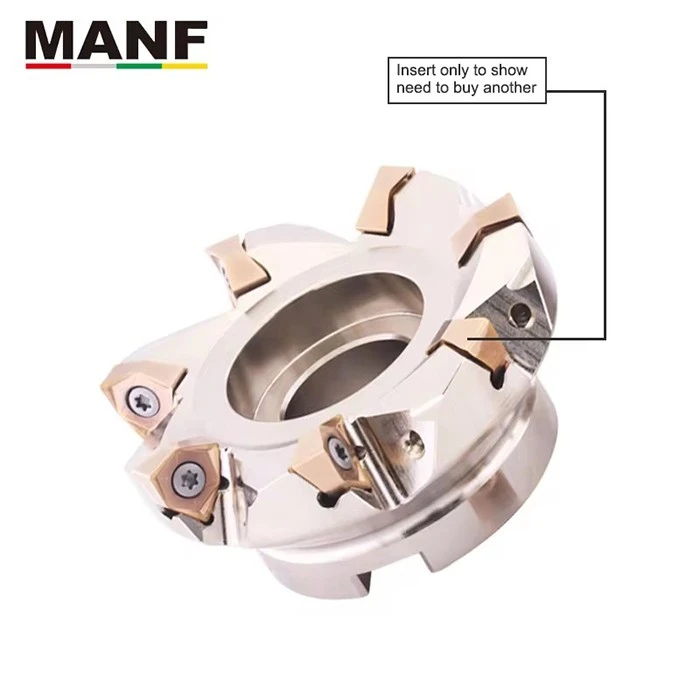

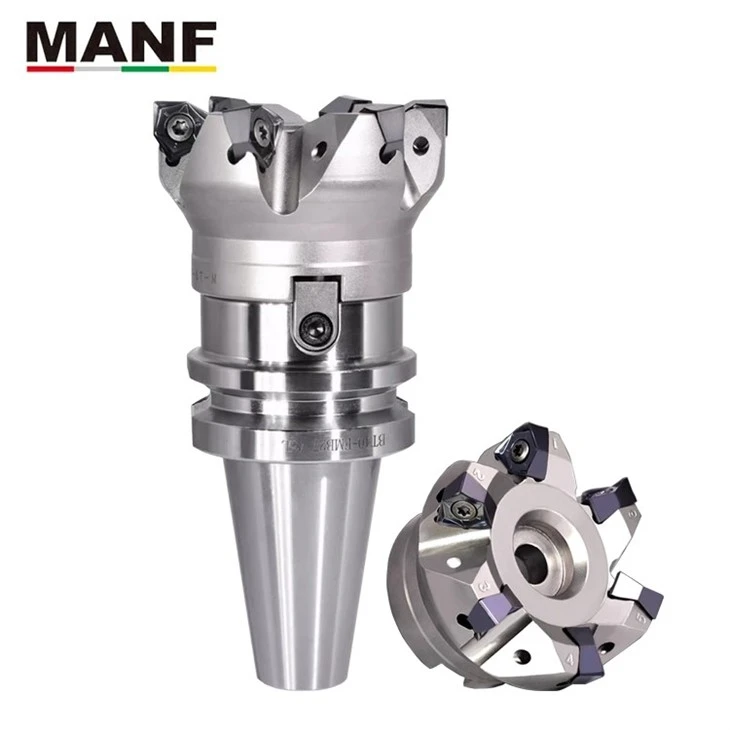

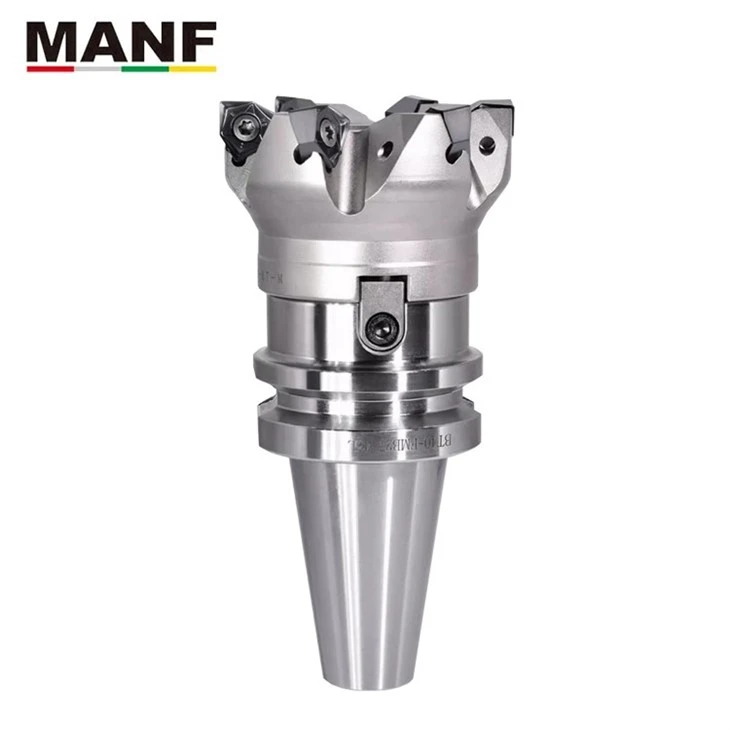

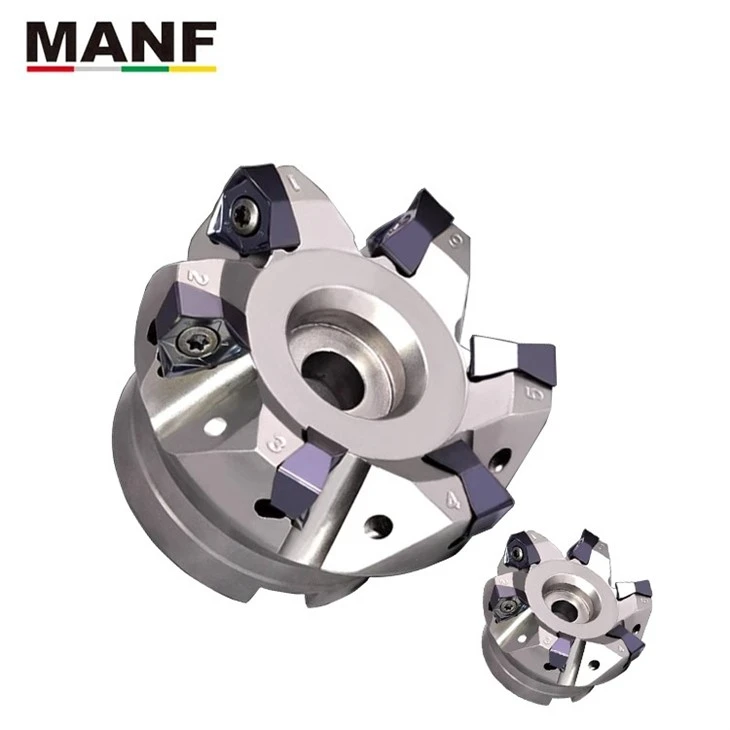

MFWN90 Heavy Cutting Face Mill Cutter

MFWN90 Heavy Cutting Face Mill Cutter

1.Brand: MANF

2. Name: MFWN Face Mill

3. Department List: MFWN90 Heavy Cutting Face Mill Cutter

4. Knife holder material: 42CrM0

5. Hard consumption: 42`45°

6.Tool holder accuracy: 0.02

7. Adaptable Insert: WNMU080608

8. Suitable screws: M5*12/M5*14

9. Wrench: T15 T20

10. Number of blades: 4T, 5T,6T,7T,8T,9T,10T,12T,14T,16T

11. Processing scene: rough processing Excavation and processing Concave groove processing Step surface processing Profiling

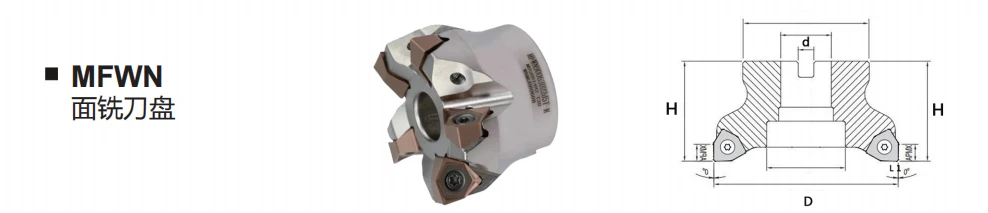

Model	No.of flutes	D	d	H	Insert	Screw	Wrench
MFWN900D63-4T-M	4	63	22	45	WNMU080608	M5*12	T15
MFWN900D80-5T-M	5	80	27	48	WNMU080608	M5*12	T15
MFWN900D100-7T-M	7	100	32	48	WNMU080608	M5*12	T15
MFWN900D125-8T-M	8	125	40	53	WNMU080608	M5*12	T15
MFWN900D160-10T-M	10	160	40	60	WNMU080608	M5*12	T15
MFWN900D200-12T-M	12	200	60	65	WNMU080608	M5*12	T15
MFWN900D63-5T-M	5	63	22	45	WNMU080608	M5*12	T15
MFWN900D80-6T-M	6	80	27	48	WNMU080608	M5*12	T15
MFWN900D80-7T-M	7	80	27	48	WNMU080608	M5*12	T15
MFWN900D100-9T-M	9	100	32	48	WNMU080608	M5*12	T15
MFWN900D125-12T-M	12	125	40	53	WNMU080608	M5*12	T15
MFWN900D160-14T-M	14	160	40	60	WNMU080608	M5*12	T15
MFWN900D200-16T-M	16	200	60	65	WNMU080608	M5*12	T15





3.Perfomrance advantage:

MFWN90° RIGHT ANGL Right-angle fast-feed milling cutter. Quenched and hardened, high-precision and shock-resistant. Good hardenability, impact resistance, and low-temperature impact toughness. Strong and durable, which can increase the service life and shock resistance of the blade. Preferred steel, made with precision craftsmanship, not easy to use Deformation. To ensure stable accuracy, the torque increases during processing, and the clamping force also increases. Bilateral card keys and double-sided constraints Clamping is more stable The tool handle is clamped at one time and the inside and outside are formed at one time Not easy to swing left and right during heavy cutting Ensure processing rigidity



4.Company advantage:

Kunshan Meiyaxing Hardware Machinery Co., Ltd. Committed to professionally creating CNC machining tools to make processing simple , Make products more perfect From design and R&D, production management, sales and service, we want to give you more and more out-of-the-box People's experience, this is our original intention. It is the direct branch of Hong Kong Meiya International Trading Company in China. It has its own tool brand: MANF and is engaged in CNC tool sales and operation services. We provide tungsten steel flat milling cutters, tungsten steel ball cutters, ball nose end mills, tungsten steel round nose milling cutters, round nose end mills, aluminum milling cutters, aluminum end mills, and have reached long-term agreements with many well-known manufacturers Strategic factory cooperation, both parties jointly develop, design, and produce teams, advanced equipment, and continuous innovation and progress in technical strength. They are committed to mutual cooperation and are oriented by technical services to form an interdependent industrial chain to solve various processing problems for processing and manufacturing enterprises. . If you have any questions about Manhu Knife, please feel free to call us for consultation or negotiation.
