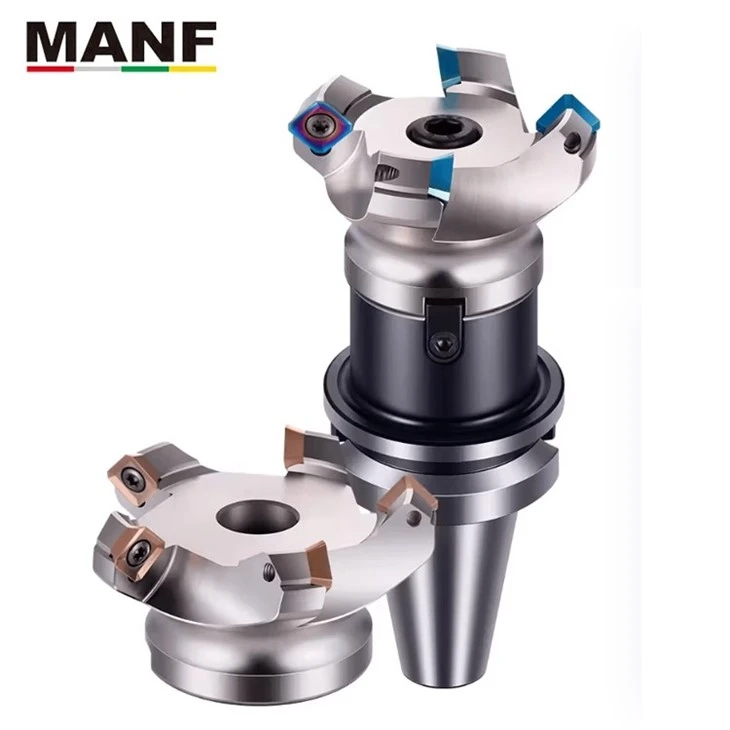

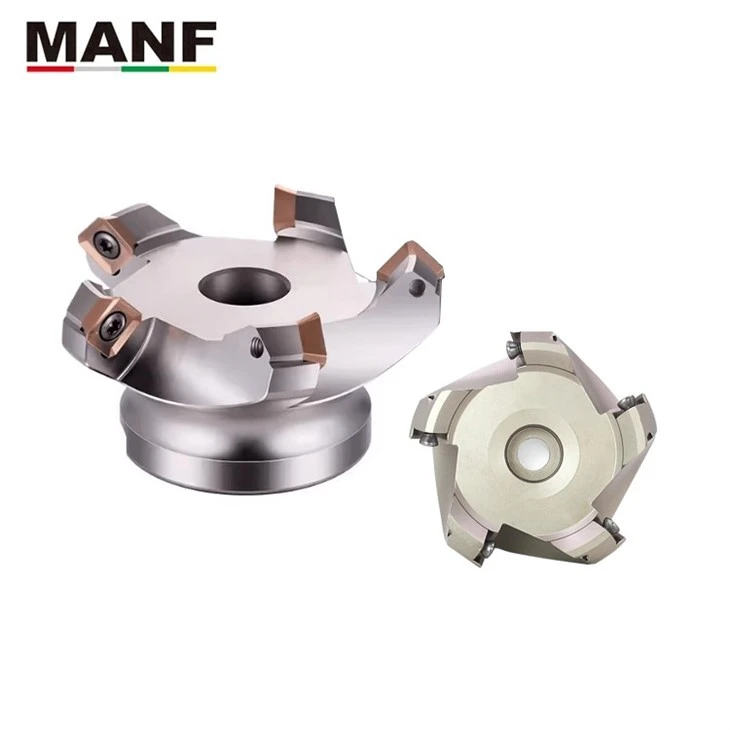

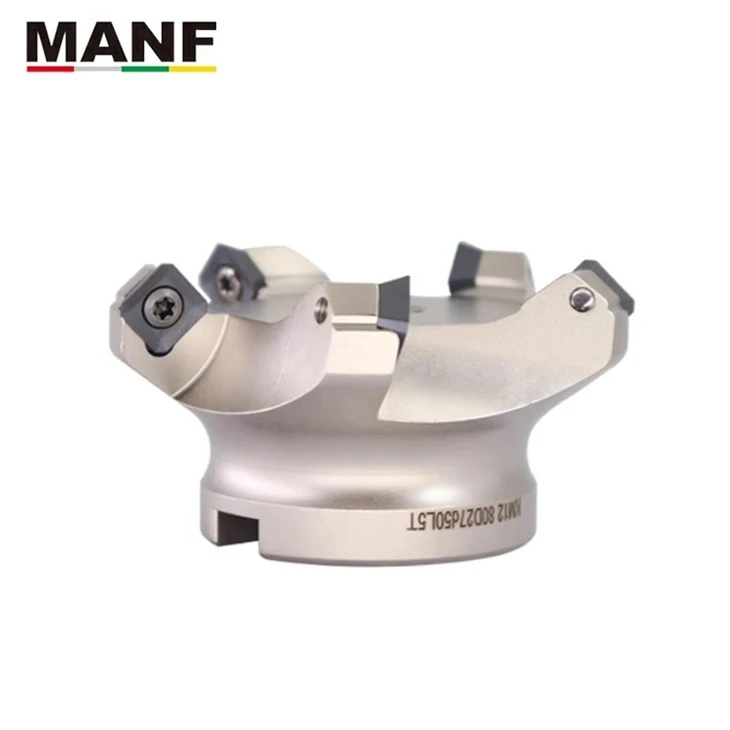

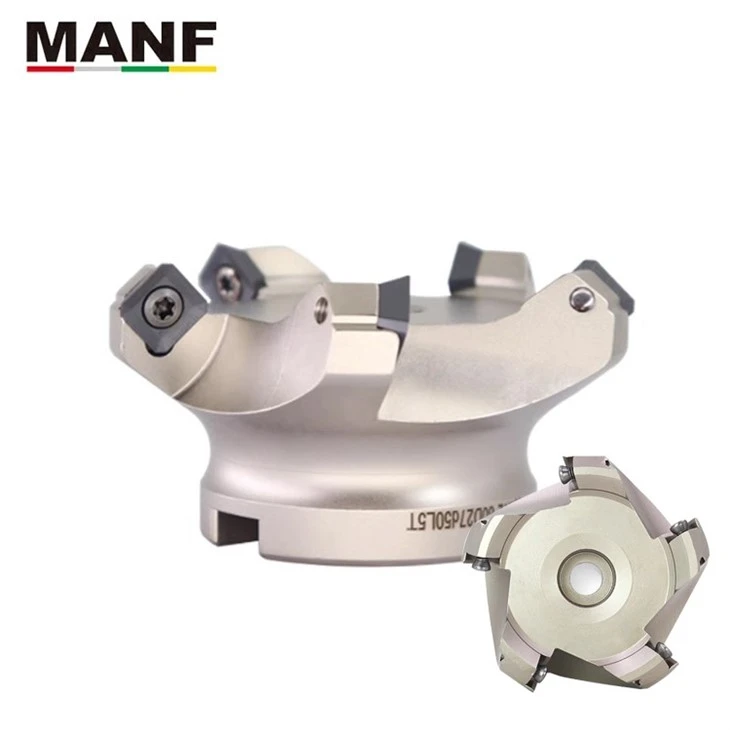

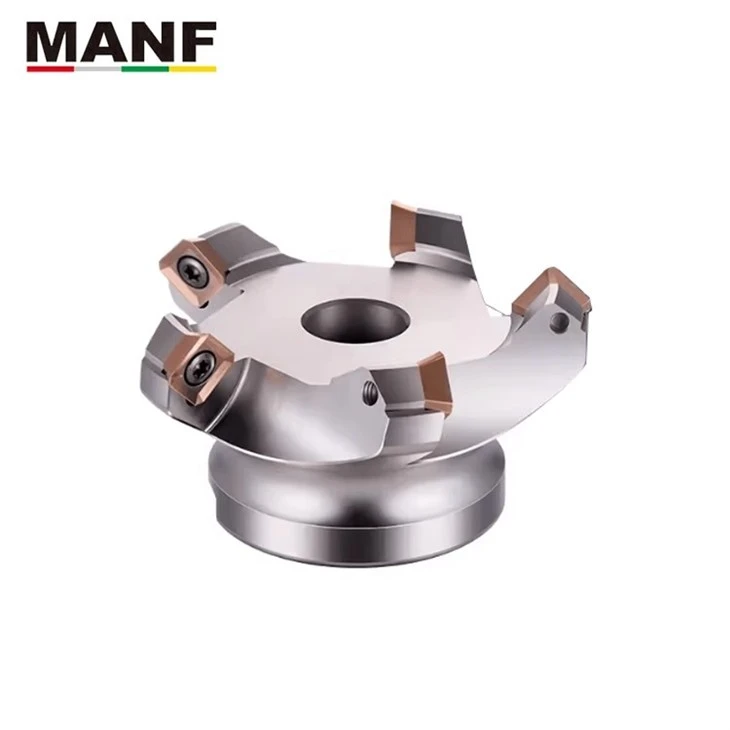

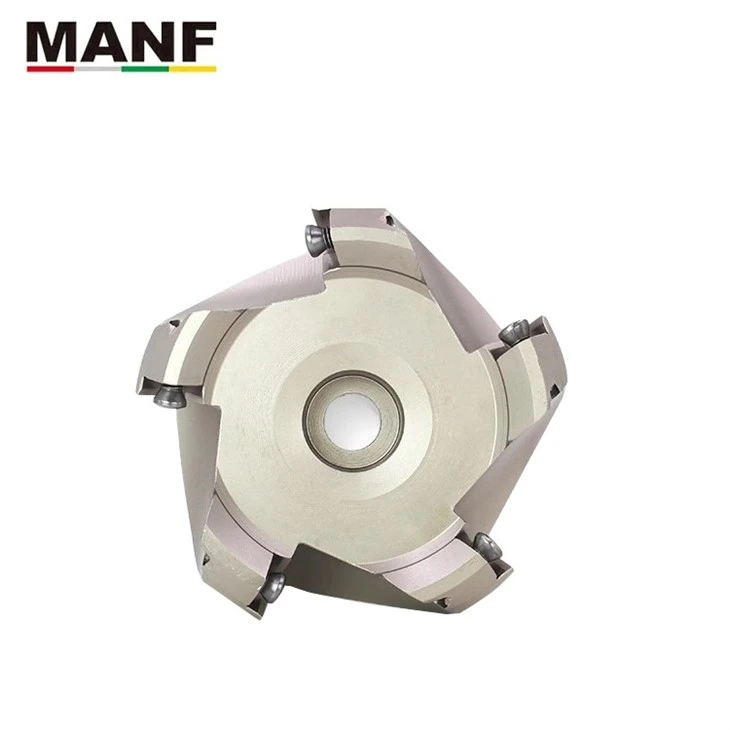

KM12 45 Degrees Indexable Face End Mill

KM12 45 degrees Indexable Face End mill

1.Brand: MANF

2. Name: KM-45° Face Mill

3. Department List: KM12 45 degrees Indexable Face End mill

4. Knife holder material: 42CrM0

5. Hard consumption: 42`45°

6.Tool holder accuracy: 0.02

7. Adaptable Insert: SEkt1204

8. Suitable screws: M5*11

9. Wrench: T20

10. Number of blades: 4T, 5T,6T,8T,10T,12T

11. Tool handle: FMB30-22 /FMB40-22/FMB50-22

12.Scope of application: rough machining, excavation processing, cutting processing, step surface processing

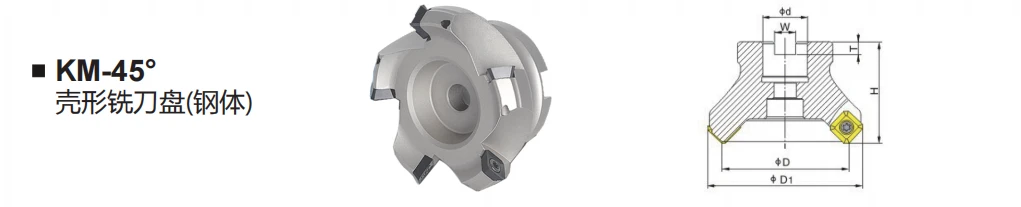

Model	No.of flutes	D	d	L	Insert	Screw	Wrench
KM12-50-22-4T	4	50	22	47	SEKT1204	LJ0511	T20
KM12-63-22-4T	4	63	22	47	SEKT1204	LJ0511	T20
KM12-80-27-5T	5	80	27	50	SEKT1204	LJ0511	T20
KM12-100-32-5T	5	100	32	50	SEKT1204	LJ0511	T20
KM12-125-40-6T	6	125	40	60	SEKT1204	LJ0511	T20
KM12-160-40-6T	6	160	40	60	SEKT1204	LJ0511	T20
KM12-200-40-8T	8	200	40	60	SEKT1204	LJ0511	T20
KM12-250-40-10T	10	250	40	60	SEKT1204	LJ0511	T20
KM12 300-60-12T	12	300	60	65	SEKT1204	LJ0511	T20
KM12-50-25.4-4T	4	50	25.4	47	SEKT1204	LJ0511	T20
KM12-63-25.4-4T	4	63	25.4	47	SEKT1204	LJ0511	T20
KM12-80-25.4-5T	5	80	25.4	50	SEKT1204	LJ0511	T20
KM12-100-31.75-5T	5	100	31.75	20	SEKT1204	LJ0511	T20









3.Perfomrance advantage:

45° milling cutter head KM12 face milling cutter head, quenched and hardened to prevent breakage. Cutting is fast and precise. The milling cutter head adopts shock-resistant alloy steel high-performance replaceable blades. The surface is treated with high hardness, which is not easy to wear during the cutting process and has a longer service life. The blades are highly economical and suitable for use. The prototype design has a large cutting space. Say goodbye to tediousness and get it all done. Rough Processing plane processing, excavation processing. Concave groove processing, step processing, profiling processing. Made of high-strength 42CRMO material, with high strength The characteristics of high toughness and high permeability improve the shock resistance of the cutterhead.



4.Company advantage:

Kunshan Meiyaxing Hardware Machinery Co., Ltd. Committed to professionally creating CNC machining tools to make processing simple , Make products more perfect From design and R&D, production management, sales and service, we want to give you more and more out-of-the-box People's experience, this is our original intention. It is the direct branch of Hong Kong Meiya International Trading Company in China. It has its own tool brand: MANF and is engaged in CNC tool sales and operation services. We provide tungsten steel flat milling cutters, tungsten steel ball cutters, ball nose end mills, tungsten steel round nose milling cutters, round nose end mills, aluminum milling cutters, aluminum end mills, and have reached long-term agreements with many well-known manufacturers Strategic factory cooperation, both parties jointly develop, design, and produce teams, advanced equipment, and continuous innovation and progress in technical strength. They are committed to mutual cooperation and are oriented by technical services to form an interdependent industrial chain to solve various processing problems for processing and manufacturing enterprises. . If you have any questions about Manhu Knife, please feel free to call us for consultation or negotiation.
