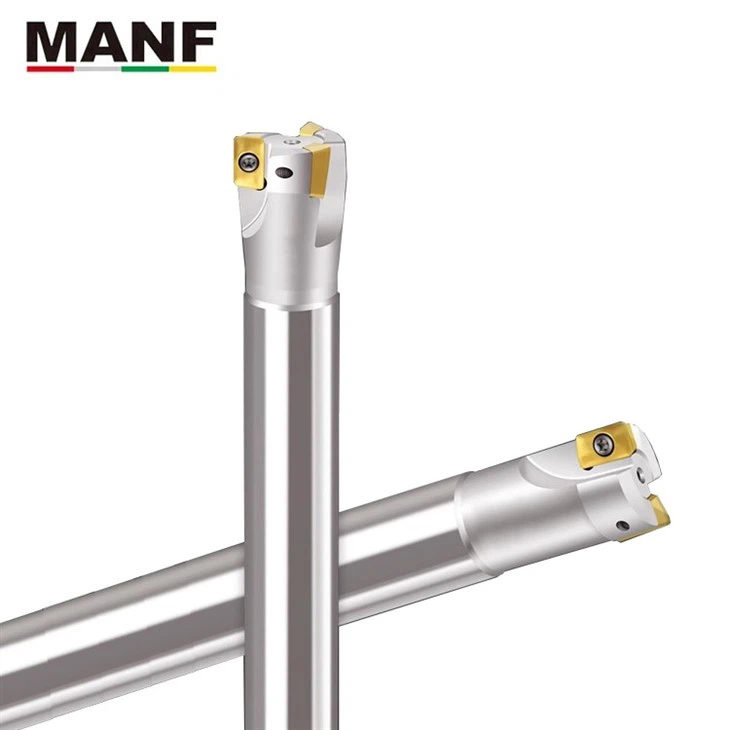

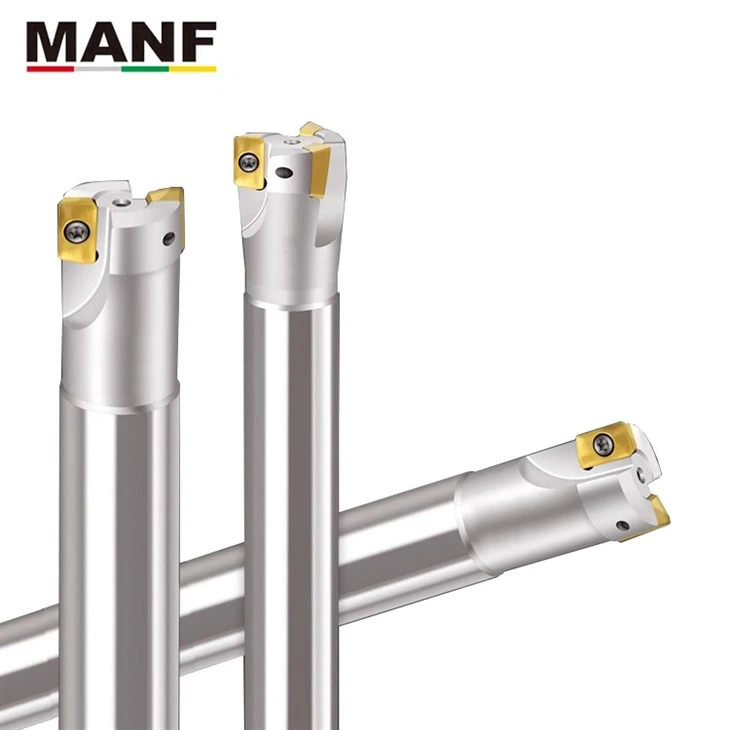

BAP300 Indexable Milling Cutter

BAP300 Indexable Milling Cutter

1.Brand: MANF

2. Name say: Right angle milling cutter shank

3. Department List: BAP3OOR milling

4.Tool holder material quality: 42CRMO

5.Hard Spend: 42`45°

6.Tool holder accuracy: 0.02

7. Suitable for blades: APMT1135

8. Suitable for screws: M2.5*6

9. Number of blades: 1T, 2T, 3T

10. Suitable processing: roughing, finishing, digging, grooving, plane profiling, etc.

Model	No.of flutes	D	d	L	L1	L2	Insert	Screw	Wrench
EAP300R-C10-10-100-1T	1	10	10	100	30		APMT1135PDER	25*6	T8
EAP300R-C10-10-120-1T	1	10	10	120	30		APMT1135PDER	25*6	T8
EAP300R-C10-11-120-1T	1	11	10	120	30		APMT1135PDER	25*6	T8
EAP300R-C10-12-120-1T	1	12	10	120	30		APMT1135PDER	25*6	T8
EAP300R-C12-12-130-1T	1	12	12	130	30		APMT1135PDER	25*6	T8
EAP300R-C12-12-150-1T	1	12	12	150	30		APMT1135PDER	25*6	T8
EAP300R-C12-13-130-1T	1	13	12	130	30		APMT1135PDER	25*6	T8
EAP300R-C12-13-150-1T	1	13	12	150	30		APMT1135PDER	25*6	T8
EAP300R-C14-14-120-2T	2	14	14	120	30		APMT1135PDER	25*6	T8
EAP300R-C14-14-160-2T	2	14	14	160	30		APMT1135PDER	25*6	T8
EAP300R-C14-15-160-2T	2	15	14	160	30		APMT1135PDER	25*6	T8
EAP300R-C15-16-120-2T	2	16	15	120	30		APMT1135PDER	25*6	T8
EAP300R-C15-16-160-2T	2	16	15	160	40		APMT1135PDER	25*6	T8
EAP300R-C15-16-200-2T	2	16	15	200	40		APMT1135PDER	25*6	T8
EAP300R-C15.6-16-160-2T	2	16	15.6	160	40		APMT1135PDER	25*6	T8
EAP300R-C15.6-16-200-2T	2	16	15.6	200	40		APMT1135PDER	25*6	T8
EAP300R-C16-16-120-2T	2	16	16	120	40		APMT1135PDER	25*6	T8
EAP300R-C16-16-160-2T	2	16	16	160	40		APMT1135PDER	25*6	T8
EAP300R-C16-16-200-2T	2	16	16	200	40		APMT1135PDER	25*6	T8
EAP300R-C16-16-250-2T	2	16	16	250	40		APMT1135PDER	25*6	T8
EAP300R-C16-17-120-2T	2	17	16	120	40		APMT1135PDER	25*6	T8
EAP300R-C16-17-160-2T	2	17	16	160	40		APMT1135PDER	25*6	T8
EAP300R-C16-17-200-2T	2	17	16	200	40		APMT1135PDER	25*6	T8
EAP300R-C16-17-250-2T	2	17	16	250	40		APMT1135PDER	25*6	T8
EAP300R-C16-17-300-2T	2	17	16	300	40		APMT1135PDER	25*6	T8
EAP300R-C16-18-160-2T	2	18	16	160	40		APMT1135PDER	25*6	T8
EAP300R-C16-18-200-2T	2	18	16	200	40		APMT1135PDER	25*6	T8
EAP300R-C19-20-120-2T	2	20	19	120	40		APMT1135PDER	25*6	T8
EAP300R-C19-20-160-2T	2	20	19	160	40		APMT1135PDER	25*6	T8
EAP300R-C19-20-200-2T	2	20	19	200	40		APMT1135PDER	25*6	T8
EAP300R-C19-20-250-2T	2	20	19	250	40		APMT1135PDER	25*6	T8
EAP300R-C20-20-120-2T	2	20	20	120	40		APMT1135PDER	25*6	T8
EAP300R-C20-20-160-2T	2	20	20	160	40		APMT1135PDER	25*6	T8
EAP300R-C20-20-200-2T	2	20	20	200	40		APMT1135PDER	25*6	T8
EAP300R-C20-20-250-2T	2	20	20	250	40		APMT1135PDER	25*6	T8
EAP300R-C20-21-120-2T	2	21	20	120	40		APMT1135PDER	25*6	T8
EAP300R-C20-21-160-2T	2	21	20	160	40		APMT1135PDER	25*6	T8
EAP300R-C20-21-200-2T	2	21	20	200	40		APMT1135PDER	25*6	T8
EAP300R-C20-21-250-2T	2	21	20	250	40		APMT1135PDER	25*6	T8
EAP300R-C20-21-300-2T	2	21	20	300	40		APMT1135PDER	25*6	T8
EAP300R-C24-25-150-3T	3	25	24	150	40		APMT1135PDER	25*6	T8
EAP300R-C24-25-200-3T	3	25	24	200	40		APMT1135PDER	25*6	T8
EAP300R-C24-25-250-3T	3	25	24	250	40		APMT1135PDER	25*6	T8
EAP300R-C24-25-300-3T	3	25	24	300	40		APMT1135PDER	25*6	T8
EAP300R-C25-25-150-3T	3	25	25	150	40		APMT1135PDER	25*6	T8
EAP300R-C25-25-200-3T	3	25	25	200	40		APMT1135PDER	25*6	T8
EAP300R-C25-25-250-3T	3	25	25	250	40		APMT1135PDER	25*6	T8
EAP300R-C25-25-300-3T	3	25	25	300	40		APMT1135PDER	25*6	T8
EAP300R-C25-26-150-3T	3	26	25	150	40		APMT1135PDER	25*6	T8
EAP300R-C25-26-150-3T	3	26	25	150	40		APMT1135PDER	25*6	T8
EAP300R-C25-26-250-3T	3	26	25	250	40		APMT1135PDER	25*6	T8
EAP300R-C25-26-300-3T	3	26	25	300	40		APMT1135PDER	25*6	T8





3.Perfomrance advantage:

BAP300 Indexable Milling Cutter The tool handle body is carefully made of high-quality 42CRMO steel, which can effectively suppress the vibration of the tool handle during processing. Effectively protect the machine tool, reduce blade loss and reduce processing costs. Vacuum quenching is used to harden and prevent deformation, improving the service life and stability of the knife holder. Can be used for powerful milling to improve efficiency. Advanced technology enables smooth chip removal. The top is coated with high hardness, and the handle is quenched and hardened, which can be used for cutting and rotation. It effectively saves man-hours, improves efficiency, and is sturdy and durable. The number of blades is designed according to the processing requirements to easily remove chips and reduce the number of blades caused by poor chip removal during processing. Loss or broken tool. Flexible selection and application of milling cutter arbors with different flutes are used to meet processing needs.



4.Company advantage:

Kunshan Meiyaxing Hardware Machinery Co., Ltd. is a direct branch of Hong Kong Meiya International Trading Company in China. It has its own tool brand: MANF and is engaged in CNC tool sales and operation services. We provide tungsten steel flat cutters, tungsten steel ball cutters, ball end mills, tungsten steel round nose cutters, round nose end mills, aluminum milling cutters, aluminum end mills, and have reached long-term strategies with a number of well-known production factories Cooperation, both parties jointly develop, design, and produce teams, advanced equipment, and constantly innovative and progressive technical strength. They are committed to mutual cooperation and are guided by technical services to form a mutually dependent industrial chain to solve various processing problems for processing and manufacturing enterprises. . If you have any questions about Manhu knives, please call us for consultation or negotiation.
