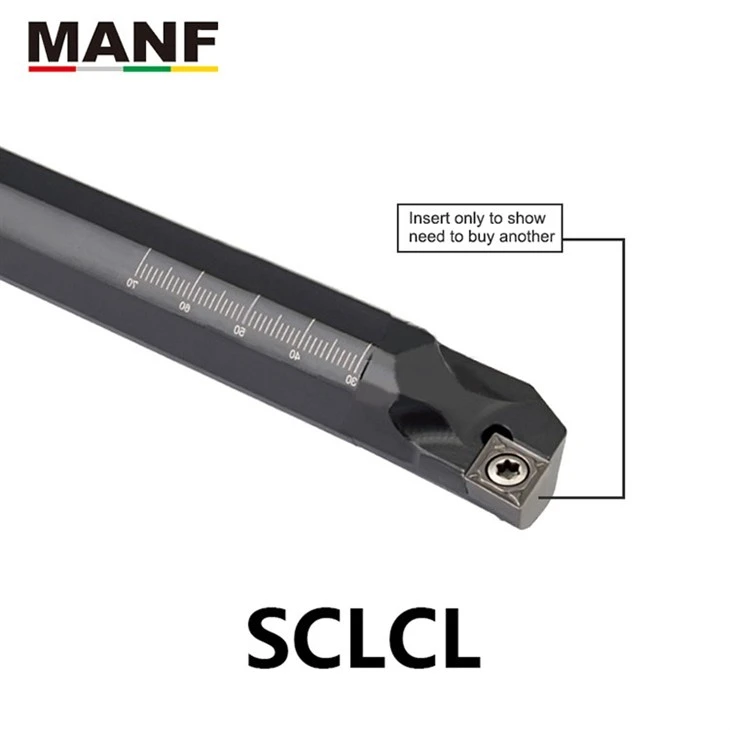

SCLCR SCLCL 95 Degrees Internal Turning Tool



Product Name: SCLCR SCLCL 95 degrees Internal Turning Tool

Brand name: MANF

Place of origin: China

Raw material: 40CrMo

Clamping Type: S-type

Shape of the toolholder: 95°

Hardness: 46°

Diameter: 07-40mm

Length: 125-300mm

Color of surface: Black

Insert: CCMT0602 CCMT09T3 CCMT1204

CCGT0602 CCGT09T3 CCGT1204

Usage: CNC lathe, CNC machine tool

Insert machining material: Steel stainless steel non-ferrous metal copper aluminum nickel base alloy titanium alloy and high hard materials





S07K-SCLCR06 S07K-SCLCL06

S08K-SCLCR06 S08K-SCLCL06

S10K-SCLCR06 S10K-SCLCL06

S12M-SCLCR06 S12M-SCLCL06

S16Q-SCLCR06 S16Q-SCLCL06

S12M-SCLCR09 S12M-SCLCL09

S14N-SCLCR09 S14N-SCLCL09

S16Q-SCLCR09 S160-SCLCL09

S18Q-SCLCR09 S180-SCLCL09

S20R-SCLCR09 S20R-SCLCL09

S25S-SCLCR09 S25S-SCLCL09

S32T-SCLCR09 S32T-SCLCL09

S25S-SCLCR12 S25S-SCLCL12

S32T-SCLCR12 S32T-SCLCL12

S40T-SCLCR12S40T-SCLCL12

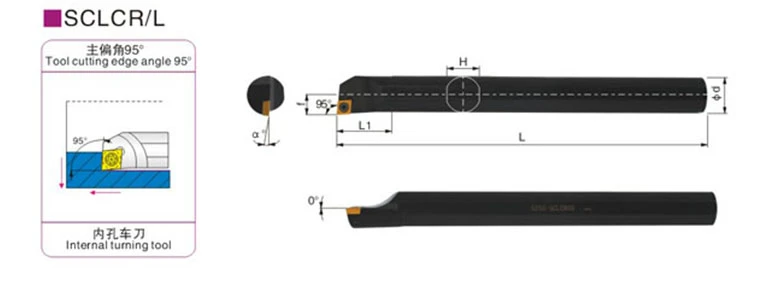

Type	Insert	Specification							Screw	Wrench
		Dmin	D	f	L	L1	H	a°
S07K-SCLCR/L06	CC££0602££	9	7	4.9	125	14	6	15°	M2.5x 5	T8
S08K-SCLCR/L06		10	8	5	125	14	7	15°	M2.5x6
S10K-SCLCR/L06		12	10	6	125	14	9	13°
S12M-SCLCR/L06		16	12	9	150	25	11	10°
S16Q-SCLCR/L06		20	16	11	180	32	15	8°
S12M-SCLCR/L09	CC££09T3££	16	12	9	150	25	11	10°	M4x8	T15
S14N-SCLCR/L09		16	14	8.5	160	25	13	12°
S16Q-SCLCR/L09		20	16	11	180	32.5	15	12°
S18Q-SCLCR/L09		20	18	10.5	180	25	17	8°
S20R-SCLCR/L09		25	20	13	200	38	18	8°
S25S-SCLCR/L09		32	25	17	250	45	23	6°
S32T-SCLCR/L09		34	32	17.5	300	45	30	4°
S25S-SCLCR/L12	CC££1204££	32	25	17	250	45	23	6°	M5x12	T20
S32T-SCLCR/L12		40	32	22	300	50	30	10°
S40T-SCLCR/L12		50	40	27	300	60	37	8°





SCLCR SCLCL 95 degrees Internal Turning Tool, precision fit, screw locking size standard, high concentricity and small tolerance. The hole position is accurate and the product is more stable. Selected material, surface hardening process to strengthen its hardness. At the same time to strengthen the wear resistance, cost-effective choice. Hardening, while improving the stability and shock resistance, the processing efficiency is greatly improved.



MANF is one of the largest manufacturers and distributors of SCLCR 95-degree internal hole tool bar external tool rest in China. We have a professional technical team, most of the sales are mainly from overseas, so we better understand the needs of overseas customers. We can produce according to the customer's brand needs, and pack according to your packaging requirements. And we can accept the customization of non-standard products, the quality is stable, is a trusted manufacturer and manufacturer of CNC tool bar.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
