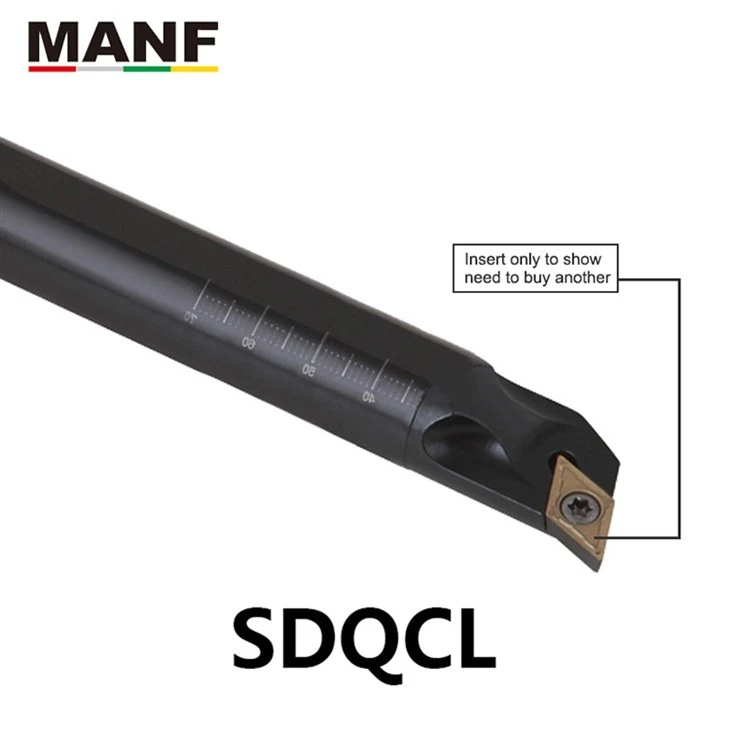

SDQCR SDQCL 107 Degrees Internal Turning Tool
Shape of the toolholder: 107°
Hardness: 46°
Diameter: 10-32mm
Length: 125-300mm
Product Parameters
Product Name: SDQCR SDQCL 107 degrees Internal Turning Tool
Brand name: MANF
Place of origin: China
Raw material: 40CrMo
Clamping Type: S-type Internal Turning Tool
Shape of the toolholder: 107°
Hardness: 46°
Diameter: 10-32mm
Length: 125-300mm
Color of surface: Black
Insert: DCMT0702 DCMT11T3 DCGT0702 DCGT11T3
Usage: Mini parts processing, CNC lathe
Insert processing material: difficult to process materials nickel-based alloy titanium alloy steel stainless steel copper aluminum non-ferrous metals, etc
Model Number
S10K-SDOCR07 S10K-SDOCL07
S12M-SDOCR07 S12M-SDOCL07
S16Q-SDOCR07 S16Q-SDOCL07
S16Q-SDQCR11 S16Q-SDQCL11
S20R-SDOCR11 S20R-SDOCL11
S25S-SDQCR11 S25S-SDQCL11
S32T-SDQCR11 S32T-SDQCL11

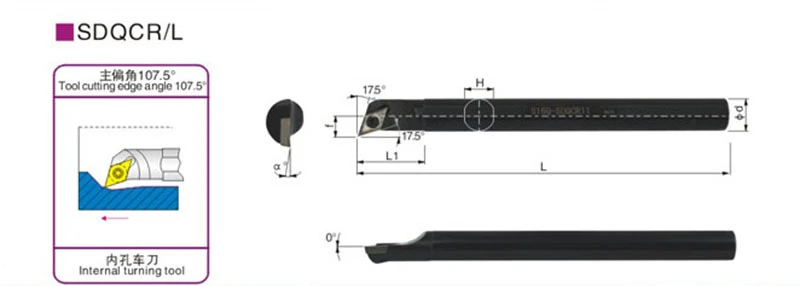

Specifications
|
Type |
Insert |
Specification |
Screw |
Wrench |
||||||
|
Dmin |
D |
f |
L |
L1 |
H |
a° |
||||
|
S10K-SDOCR/L07 |
DC££0702££ |
13 |
10 |
7 |
125 |
23 |
9 |
10° |
M2.5x6 |
T8 |
|
S12M-SDOCR/L07 |
16 |
12 |
9 |
150 |
30 |
11 |
8° |
|||
|
S16Q-SDOCR/L07 |
20 |
16 |
10.5 |
180 |
30 |
15 |
6° |
|||
|
S16Q-SDQCR/L11 |
DC££11T3££ |
19 |
16 |
10.5 |
180 |
30 |
15 |
6° |
M4x8 |
T15 |
|
S20R-SDOCR/L11 |
25 |
20 |
13 |
200 |
39 |
19 |
6° |
|||
|
S25S-SDQCR/L11 |
32 |
25 |
16 |
250 |
40 |
24 |
4° |
|||
|
S32T-SDQCR/L11 |
39 |
32 |
20 |
300 |
43 |
30 |
4° |
|||
Performance Advantage

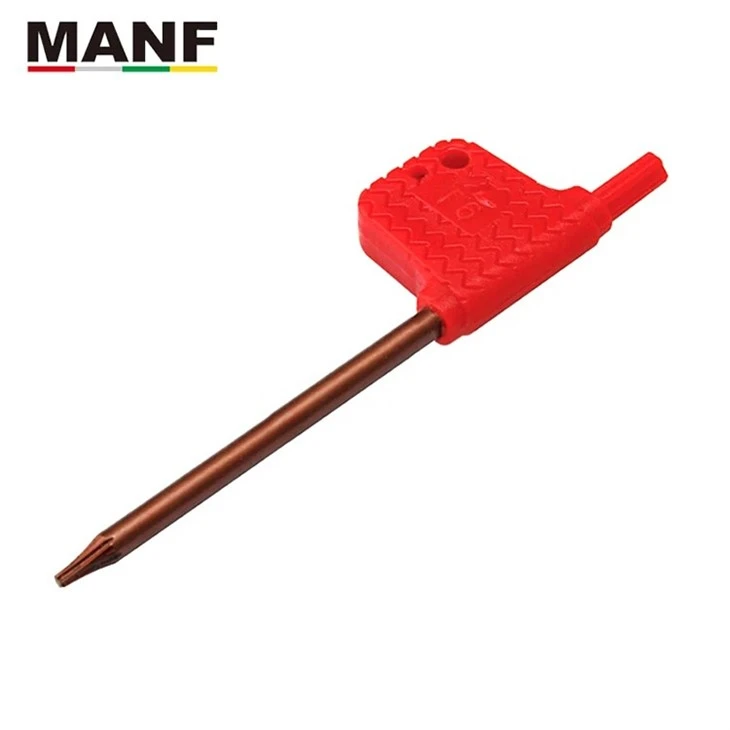

SDQCR SDQCL 107 degrees Internal Turning Tool. Screw type inner diameter turning tool rod, tool rod surface treatment with imported diamond composite polishing, so that the surface of the tool body is fine and shiny. Screw pressing type, after installing the blade tightly, to ensure the accuracy of processing. The use of high temperature hardening, improve the stability and life of the tool bar, so that the tool bar life longer, more durable. Wrenches and screws are complimentary.
MANF brand is one of the largest manufacturers and distributors of SDQCR 107 degree inner hole tool holder in China. MANF brand is a well-known brand in China, with a perfect technical team to ensure the stability and durability of customer processing. MANF knife bar has always been known for its high quality and low price, we will provide discounts according to the number of customers, and we can also make non-standard products according to the needs of customers. And we have a perfect after-sales service system. The use of high-quality logistics channels, so that parcels quickly and accurately delivered to the hands of customers.
