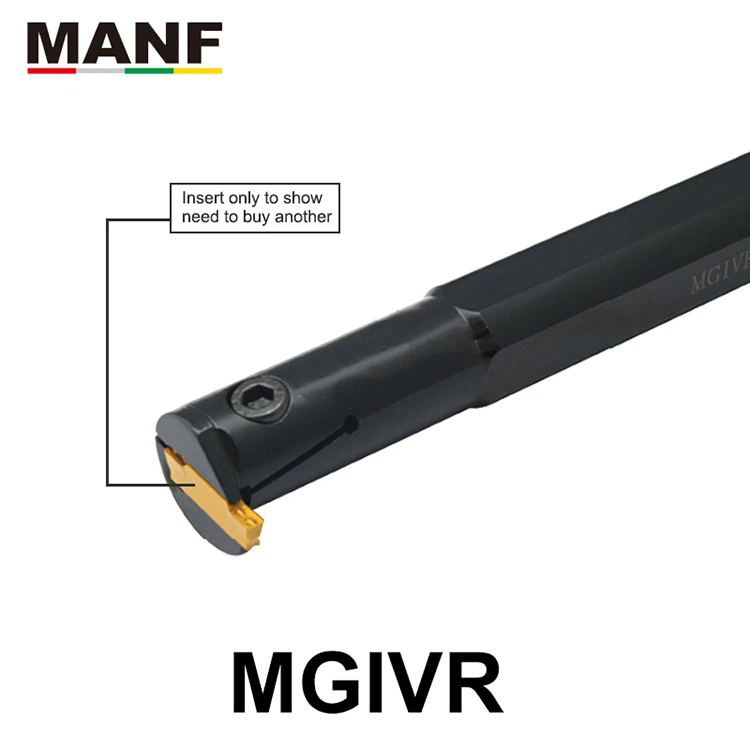

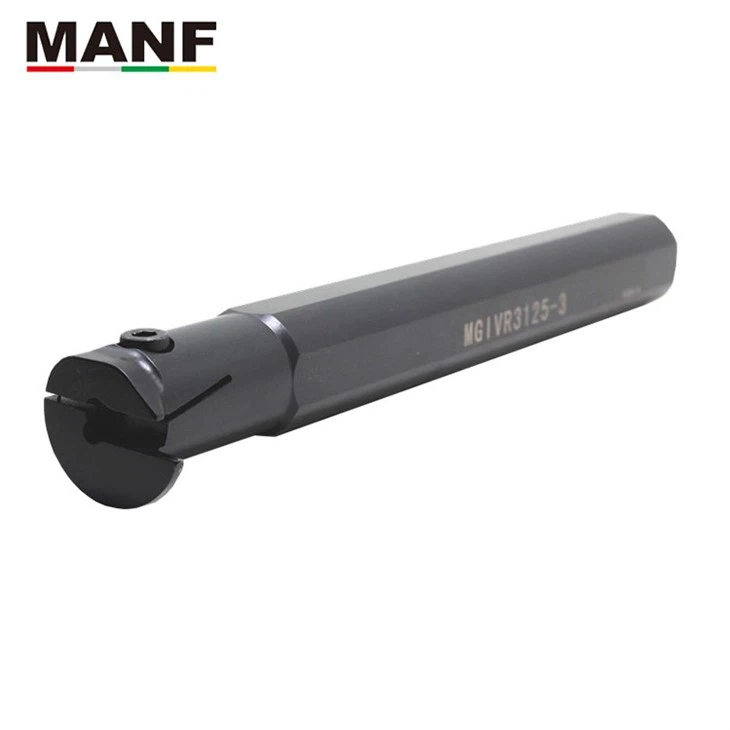

MGIVR MGIVL External Grooving Tool Holders



Product Name: MGIVR MGIVL Internal Grooving Tool Holders

Brand name: MANF

Place of origin: China

Raw material: 40CrMo

Clamping Type: Internal Grooving Tool Holders

Diameter: 16-40mm

Length: 180-350mm

Color of surface: Black

Insert: MGMN MGGN MRMN

Usage: CNC lathe, CNC machine tool

Insert processing materials: steel, stainless steel, cast iron, non-ferrous metals copper and aluminum, high hardness materials, difficult-to-machine materials, high-temperature alloys, nickel alloys, titanium alloys, etc.





MGIVR2016-2 MGIVL2016-2

MGIVR2520-2 MGIVL2520-2

MGIVR2925-2 MGIVL2925-2

MGIVR2520-3 MGIVL2520-3

MGIVR3125-3 MGIVL3125-3

MGIVR3732-3 MGIVL3732-3

MGIVR2520-4 MGIVL2520-4

MGIVR3125-4 MGIVL3125-4

MGIVR3732-4 MGIVL3732-4

MGIVR3125-5 MGIVL3125-5

MGIVR3732-5 MGIVL3732-5

MGIVR3125-6 MGIVL3125-6

MGIVR3732-6 MGIVL3732-6

MGIVR3732-8 MGIVL3732-8

MGIVR4540-8 MGIVL4540-8

MGIVR3125-6 MGIVL3125-6

MGIVR3732-6 MGIVL3732-6

MGIVR3732-8 MGIVL3732-8

MGIVR4540-8 MGIVL4540-8

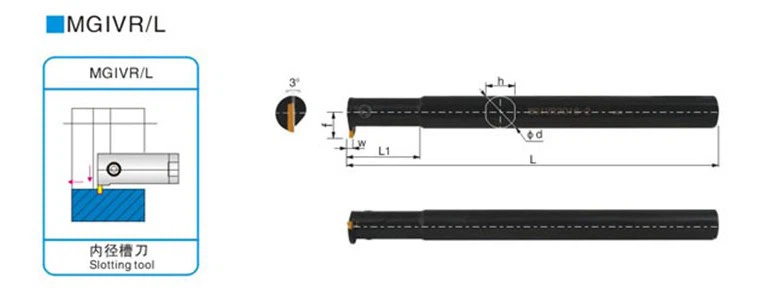

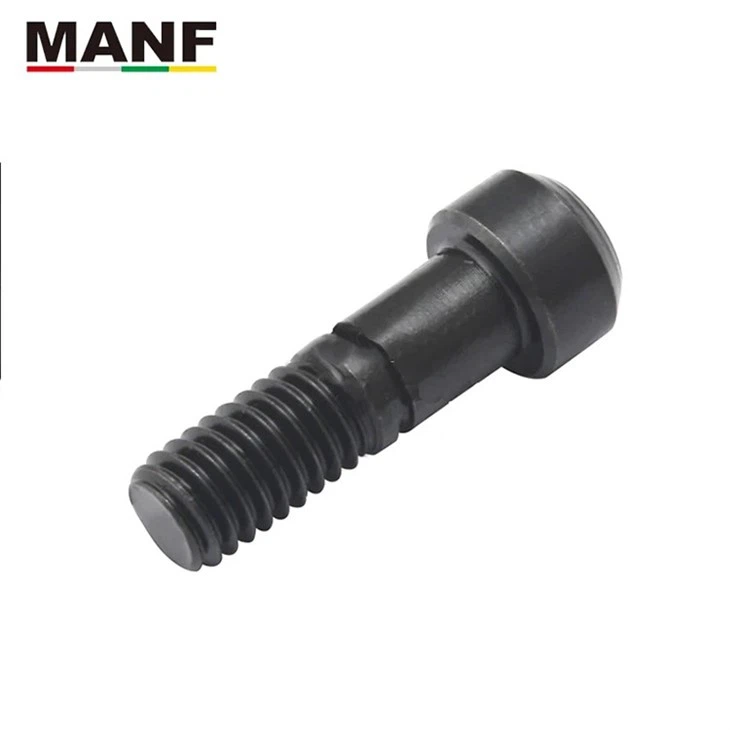

Type	Insert	Specification						Screw	Wrench
		w	d	f	L	L1	H
MGIVR/L2016-2	MGMN200	2	16	12.4	180	26	14.8	M4x15	L3
MGIVR/L2520-2		2	20	14	200	26	18.4
MGIVR/L2925-2		2	25	17.25	250	26	23.4
MGIVR/L2520-3	MGMN300 MRMN300	3	20	15.6	200	28	18.4	M4x15	L3
MGIVR/L3125-3		3	25	18.9	250	28	23.4	M5x20	L4
MGIVR/L3732-3		3	32	21.5	180	28	30
MGIVR/L2520-4	MGMN400 MRMN400	4	20	15.6	200	32	18.4	M5x20	L4
MGIVR/L3125-4		4	25	18.9	250	32	23.4
MGIVR/L3732-4		4	32	21.5	300	32	30
MGIVR/L3125-5	MGMN500 MRMN500	5	25	19.4	250	40	23.4	M5x20	L4
MGIVR/L3732-5		5	32	21.5	300	40	30
MGIVR/L3125-6	MGMN600 MRMN600	6	25	19.4	250	40	23.4	M6x25	L5
MGIVR/L3732-6		6	32	21.5	300	40	30
MGIVR/L3732-8	MGMN800 MRMN800	8	32	23.5	300	40	30
MGIVR/L4540-8		8	40	27.2	350	40	38





MGIVR MGIVL Internal Grooving Tool Holders. MANF's tool holder has been quenched, and the increased hardness can better resist the loss caused by production. Moreover, MANF's tool holder has also been designed to withstand high pressure, which can effectively avoid deformation and cracking. Extended service life. High center precision and high processing accuracy. Many tool holders are prone to tool vibration when the groove hole is too deep. Our knife holder can avoid this very well and will not cause the knife to vibrate. With the insertion of MANF, the service life can be effectively increased by 30%. Worthy of customers' trust.



MANF brand is one of the largest manufacturers and distributors of MGIVR MGIVL internal groove tool holders in China. We have a complete technical team, from early selection to upgraded after-sales service, we closely follow the footsteps of our customers every step of the way. And we can produce non-standard products according to customer needs. After all, we will give corresponding discounts according to the number of customers. Let customers spend the least money to buy high-end products. A large part of our turnover comes from overseas. Therefore, we have a better understanding of the needs of overseas customers, smooth transportation, and ensure that products are delivered to customers accurately and quickly.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
