HRC55 2 Flute Long Copper Electrode End Mill
2. Origin: China
3. Hardness: HRC55°
4. Type: Ball Nose End Mill
5. Flute: 2 Flute
Product Parameters
1. Brand name :MANF
2. Origin: China
3. Hardness :HRC55°
6. Type: Ball Nose End Mill
7. Flute :2 Flute
8. Spiral Angle :30°
9. Diameter: R0.5-R10.0
10. Total length :50-100mm
11. Coating/covering: DLC coating
12. Control mode: Suitable for CNC machining center, high speed engraving
Machines, drilling and tapping machines and more than three axes of equipment.Can not be used for hand drill, bench drill and other manual equipment!
13. Working data: Discharge copper, tungsten copper, chromium copper, red copper, oxygen free copper,Aviation copper, pure titanium, gold, silver and other precious metals.

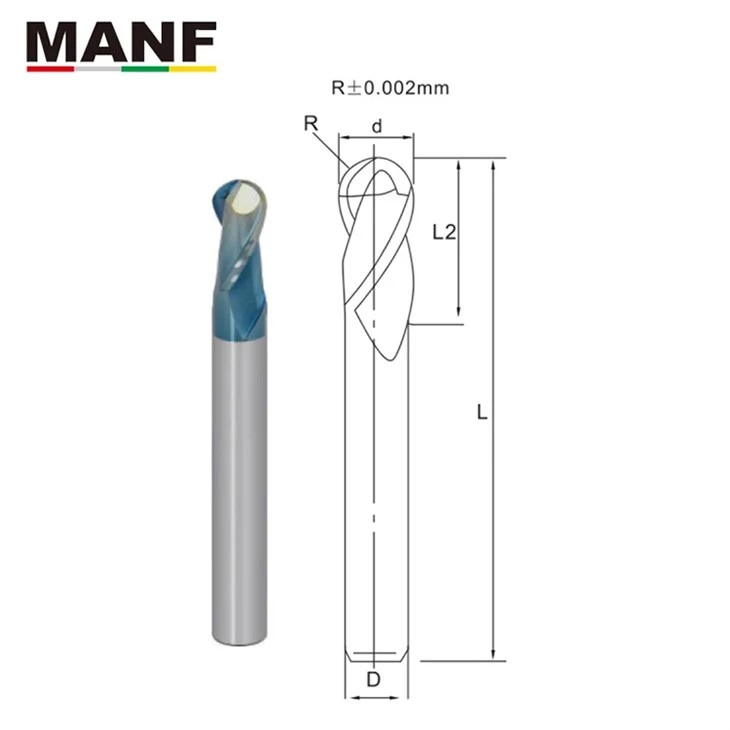

Model Number
|
Specification |
Radius(1/2d) |
L2 |
L |
D |
|
R0.5x2x50Lx4T
|
RO.50 |
2.0 |
50 |
4 |
|
R0.5x2x50Lx6T |
R0.50 |
2.0 |
50 |
6 |
|
R0.75x3x50Lx4T |
R0.75 |
3.0 |
50 |
4 |
|
R0.75x3x50Lx6T |
R0.75 |
3.0 |
50 |
6 |
|
R1.0x4x50Lx4T |
R1.00 |
4.0 |
50 |
4 |
|
R1.0x4x50Lx6T |
R1.00 |
4.0 |
50 |
6 |
|
R1.25x5x50Lx4T |
R1.25 |
5.0 |
50 |
4 |
|
R1.25x5x50Lx6T |
R1.25 |
5.0 |
50 |
6 |
|
R1.5x6x50Lx3T |
R1.50 |
6.0 |
50 |
3 |
|
R1.5x6x50Lx4T |
R1.50 |
6.0 |
50 |
4 |
|
R1.5x6x50Lx6T |
R1.50 |
6.0 |
50 |
6 |
|
R1.75x7x50Lx4T |
R1.75 |
7.0 |
50 |
4 |
|
R1.75x7x50Lx6T |
R1.75 |
7.0 |
50 |
6 |
|
R2.0x8x50Lx4T |
R2.00 |
8.0 |
50 |
4 |
|
R2.0x8x50Lx6T |
R2.00 |
8.0 |
50 |
6 |
|
R2.5x10x50Lx5T |
R2.50 |
10.0 |
50 |
5 |
|
R2.5x10x50Lx6T |
R2.50 |
10.0 |
50 |
6 |
|
R3.0x12x50Lx6T |
R3.00 |
12.0 |
50 |
6 |
|
R4.0x16x60Lx8T |
R4.00 |
16.0 |
60 |
8 |
|
R5.0x20x75Lx10T |
R5.00 |
20.0 |
75 |
10 |
|
R6.0x24x75Lx12T |
R6.00 |
24.0 |
75 |
12 |
|
R8.0x32x100Lx16T |
R8.00 |
32.0 |
100 |
16 |
|
R10.0x40x100Lx18T |
R10.0 |
40.0 |
100 |
18 |
Performance Advantage
3.
HRC55 2 Flute Long Copper Electrode End Mill.MANF copper electrode milling cutter, using fine grain primary tungsten steel, can better meet the requirements of high speed and high precision machining for milling cutter sharpness and wear resistance, strength! The 37.5° spiral Angle can improve the quality of the machined surface. The special blade design and DLC coating are combined to improve the machining stability and optimize the spiral Angle design, which can inhibit the occurrence of transverse lines during machining. Applicable materials: discharge copper, tungsten copper, chromium copper, copper, oxygen free copper,Aviation copper, pure titanium, gold, silver and other precious metals. Processing fields: terminal electrode, precision connector, communication, military parts, CNC jewelry. We have perfect inventory and after-sales service.
4.MANF is one of the largest manufacturers and distributors of tungsten steel mills in China. We have a professional technical team, each pass is strictly controlled to ensure the quality and quantity of goods delivered to the buyer's hands, MANF CNC tool specifications complete, with tens of thousands of products, warehouse storage is perfect, inventory is perfect. Can provide a complete tool matching service, from the buyer's processing drawings to the finished product, we provide a full range of tracking services. Ensure the quality of CNC tools.
About Transportation
We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
