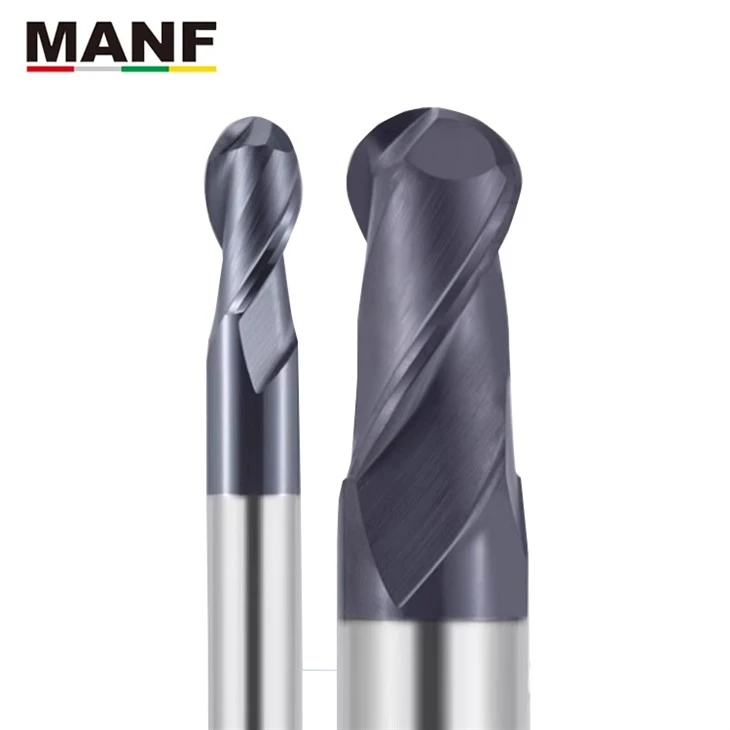

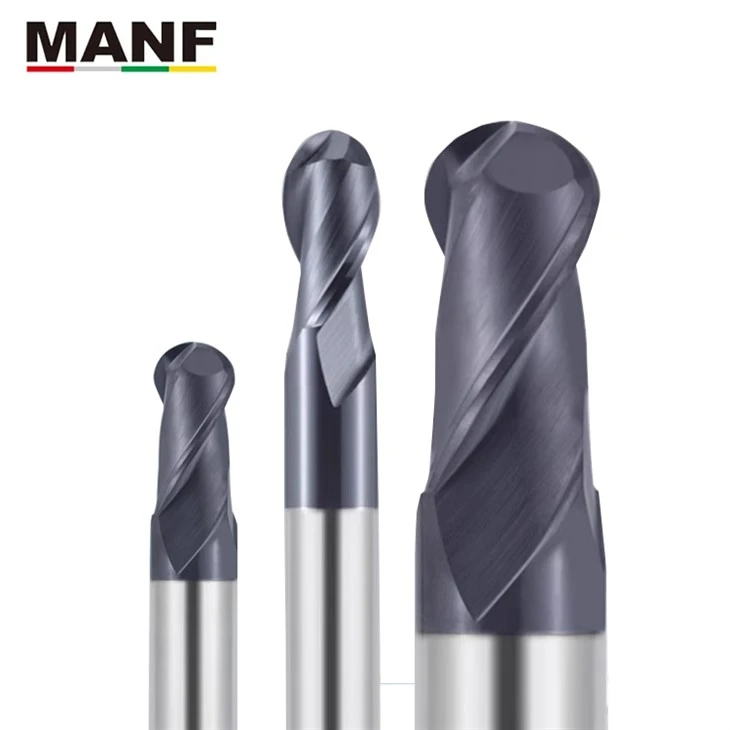

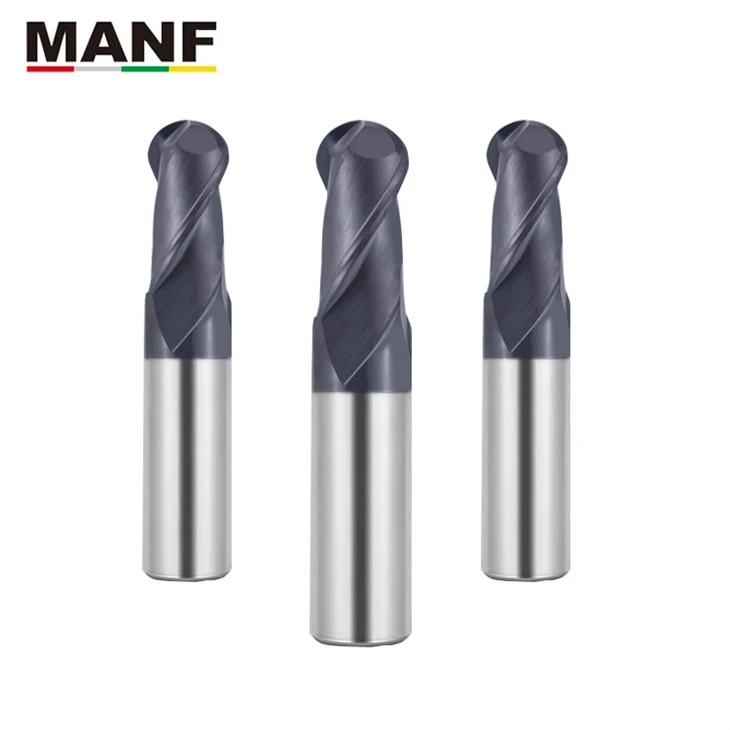

HRC60 2 Flute Ball Nose End Mill

HRC60 2 Flute Ball Nose End Mill

1.Brand: MANF
2.Model: Q600

3.Material: hard alloy

4.Place of Origin: China
5.Province: Jiangsu

6.City: Suzhou City

7. Hardness :HRC60°

8. Type: Ball Nose End Mill

9. Flute :2 Flute

10. Spiral Angle :30°

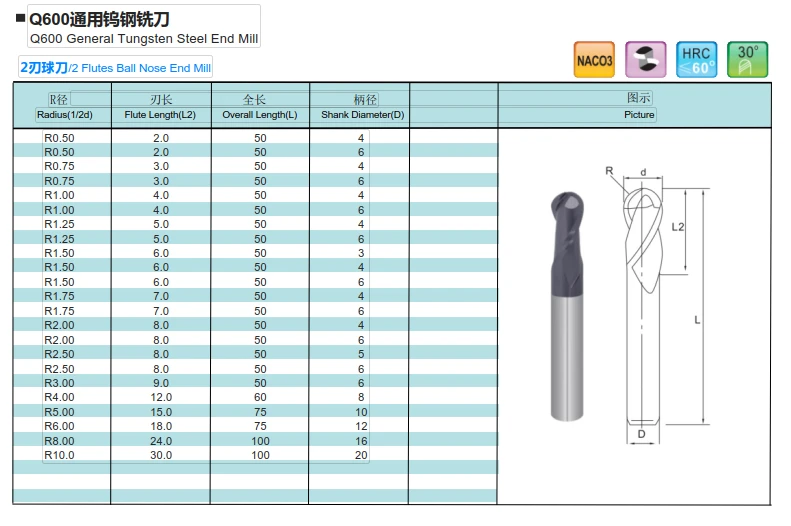

11. Diameter: R0.5-R10.0

12. Total length :50-100mm

13. Coating/covering: DLC coating

14. Control mode: CNC machining center, drilling and tapping center, engraving machine, etc

15. Working data: Die steel (S136, S136H, 2083, 2083H, 718, 718H, NAK80, 738, P20, etc.) carbon steel, alloy steel, cast iron, stainless steel, etc







3.MANF HRC60 2 Flute Ball Nose End Mill, suitable for steel materials (before heat treatment) rough finishing, complete specifications! Five axis grinding, belt finishing. Imported grinding wheel dressing equipment, five-axis machine tool production, cutting tool edge is sharp and smooth, processing resistance is small

The arc cutting edge is transitioning naturally, without breaking or burring. Strictly select the real material, the selection of fine grain tungsten steel bar. The performance of the material is directly related to the stability of the milling cutter, so our choice of materials is strictly controlled from the source! The imported five-axis precision machine tool is used to produce flat and sharp edge belt, low cutting resistance, smooth chip removal and stable quality of non-stick tool, which is more suitable for mass production and processing



4.MANF is HRC60 2 Flute Ball Nose End Mill, China's largest manufacturer and manufacturer, has a strong comprehensive production system, with good production capacity, the introduction of CNC machining center and testing equipment, strong technical force, complete testing equipment, exquisite technology. Imported high-quality materials, high precision ultra-fine grinding, with sharp cutting edge, high finish, high precision.

Production of special, non-standard, special-shaped, arbitrary size, shape, extremely complex medium and high products. It can provide you with high quality, high efficiency and low cost applications. IT is widely used in IT communication, aerospace, medical equipment, ships, automobiles, printing, furniture, clocks, and other manufacturing fields.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
