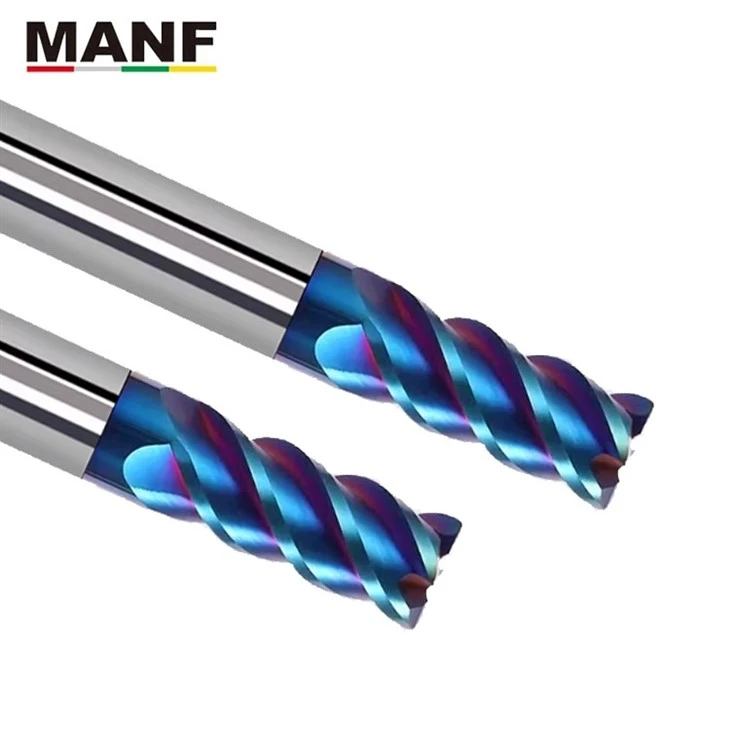

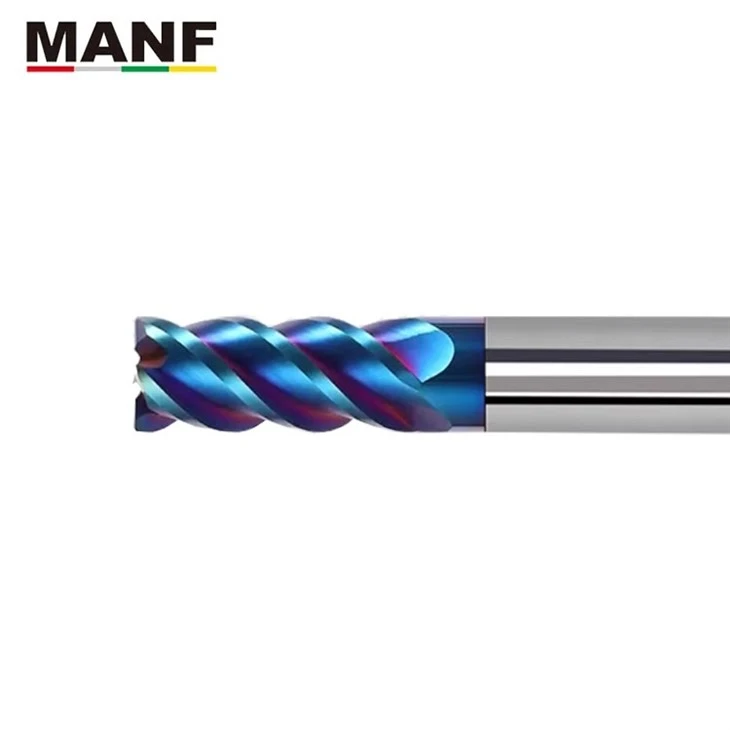

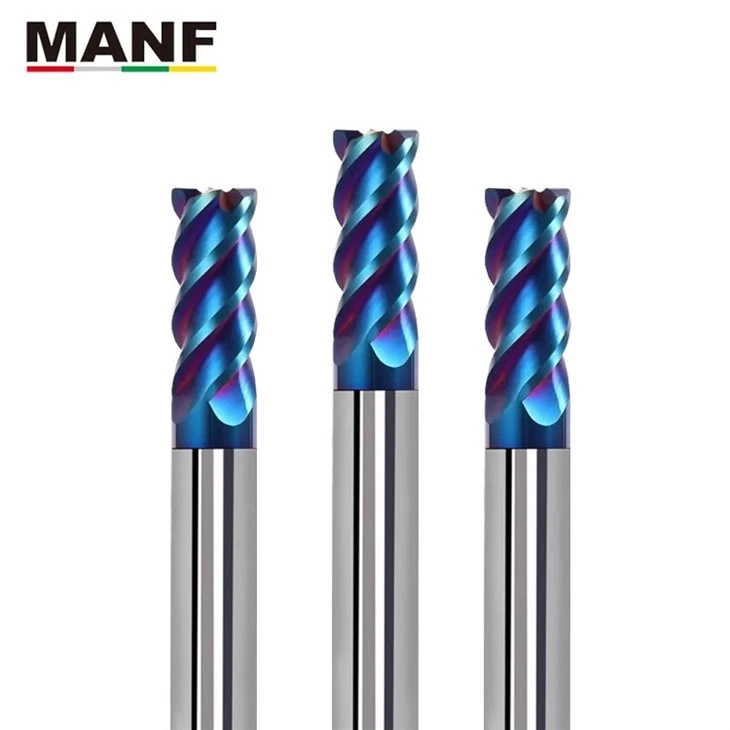

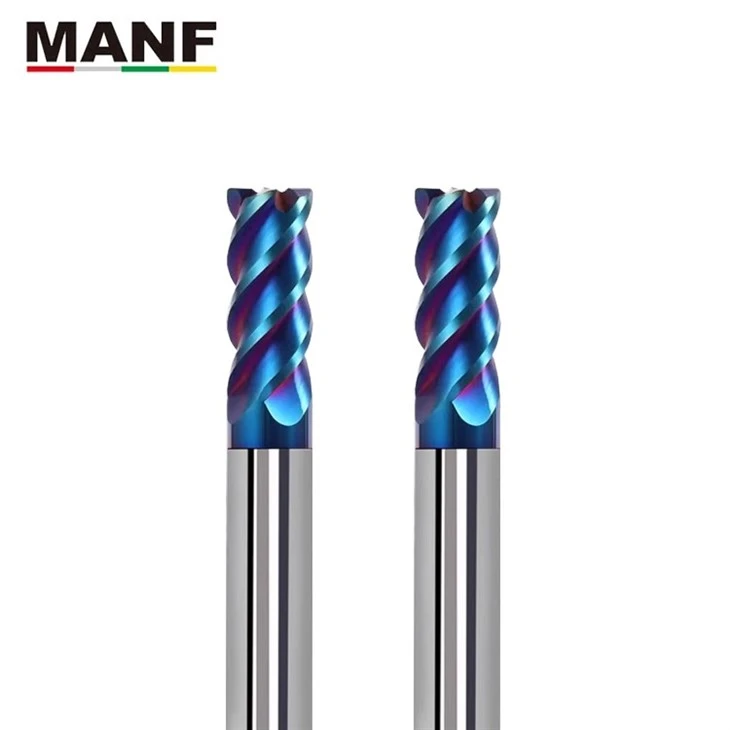

HRC65 Blue Nano Corner Radius End Mill

HRC65 degree blue nano fillet end mill

1.Brand name: MANF

2. Hardness: HRC65°

3.Helix angle: 38°

4. Coating: NAC04 coating

5. Type: Tungsten steel flat bottom end mill

6. Flute: 4 flutes

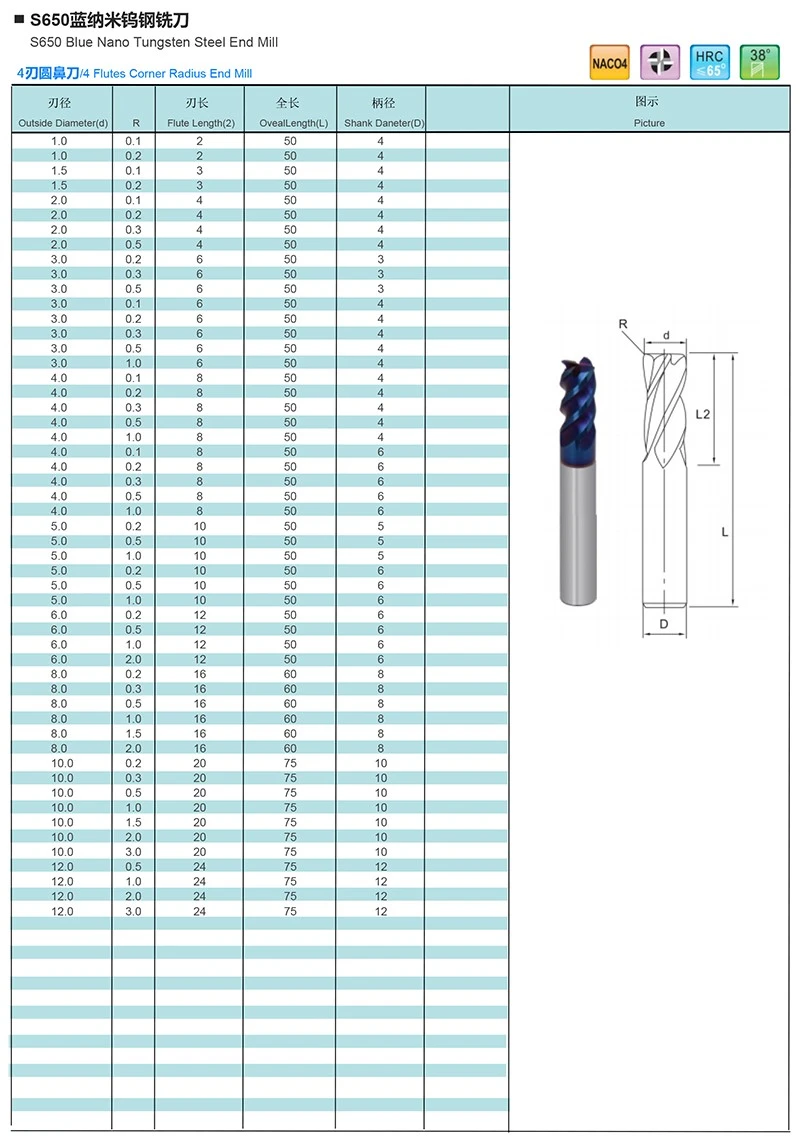

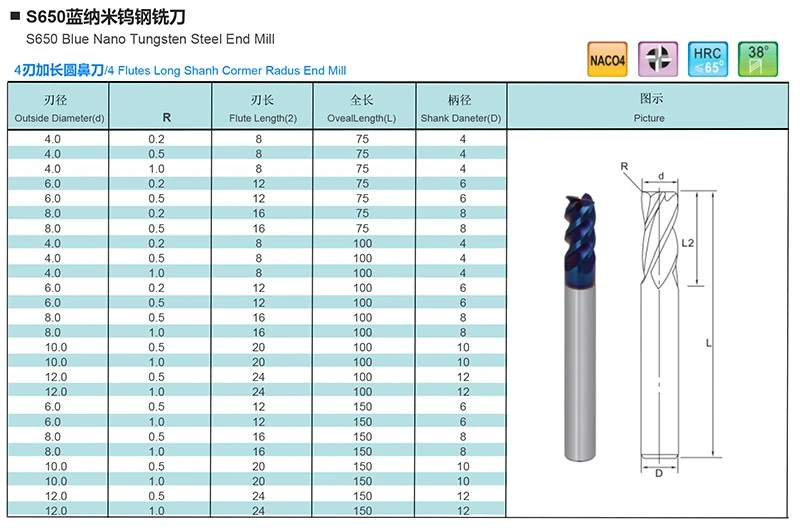

7. Diameter: 1mm-12mm

8. Total length: 50-150mm

9. Product advantages: Nano-coating, high temperature resistance and wear resistance. The coating performance using PLATIT coating equipment is stable. Nano-coating, fully ground edge, high-precision R angle.

10. Applicable materials: quenched parts, stainless steel, mold steel, cast iron, etc.

11. Applicable machines: CNC machining centers, engraving machines, precision engraving machines and other high-speed machines.





3.Perfomrance advantage:

HRC65 degrees Blue Nano Corner Radius End Mill, all-round cutting, quenching expert. Factory direct sales. Nano coating, high temperature and wear resistance, using PLATIT coating equipment coating performance is stable. 0.2UM micro particle tungsten steel carbide, integral tungsten steel molding, seismic durable, refuse to break the knife. All sharpening edges Double edge belt design, compatible cutting edge strength and sharpness, enhance tool rigidity, cutting edge without burrs, reduce the number of tool changes, extend the applicable life. Large chip discharge, full grinding spiral groove, fine grinding spiral groove, avoid knife sticking, greatly improve production efficiency.



4. Instructions for use:Kunshan Meiyaxing Hardware Machinery Co., Ltd. is a cutting tool agent sales and technical service company. It has its own knife brand :MANF, affordable and superior quality. The products mainly cover turning, milling, boring, grooving and cutting, threading and tool holder clamping systems. Widely used in aviation, automobile manufacturing, mold machining and electronic precision technology and many other industries. The company has professional engineering and technical personnel to provide you with "pre-sales service, product trial, technical guidance, problem solving, technical consulting" and other technical services. Improving processing efficiency and reducing tool costs is our service tenet.



Our Services
On-time delivery
Technical support

If you are unhappy with our servicr or any other problem,please contact us before leaving feedback and we will resolve the issue immediately,thank you!

We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
