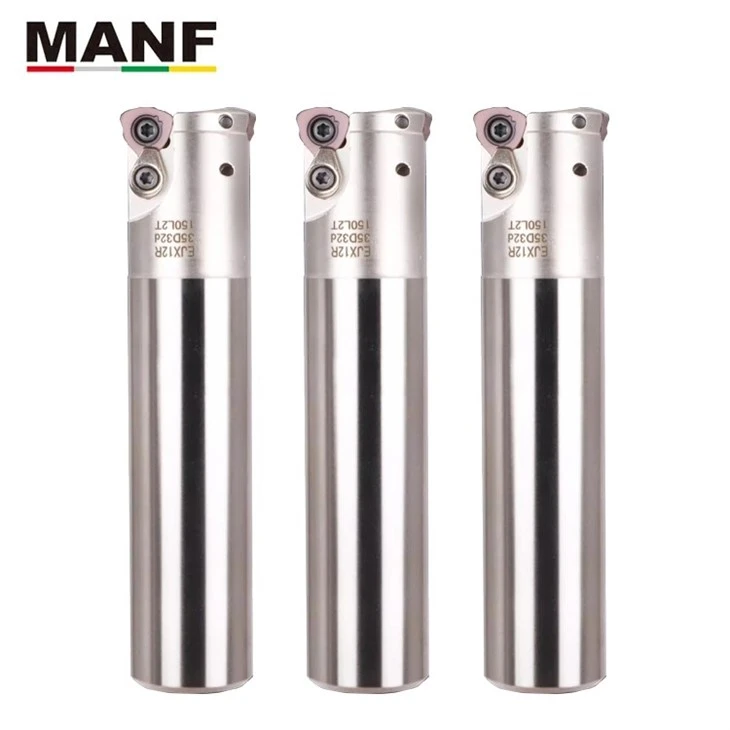

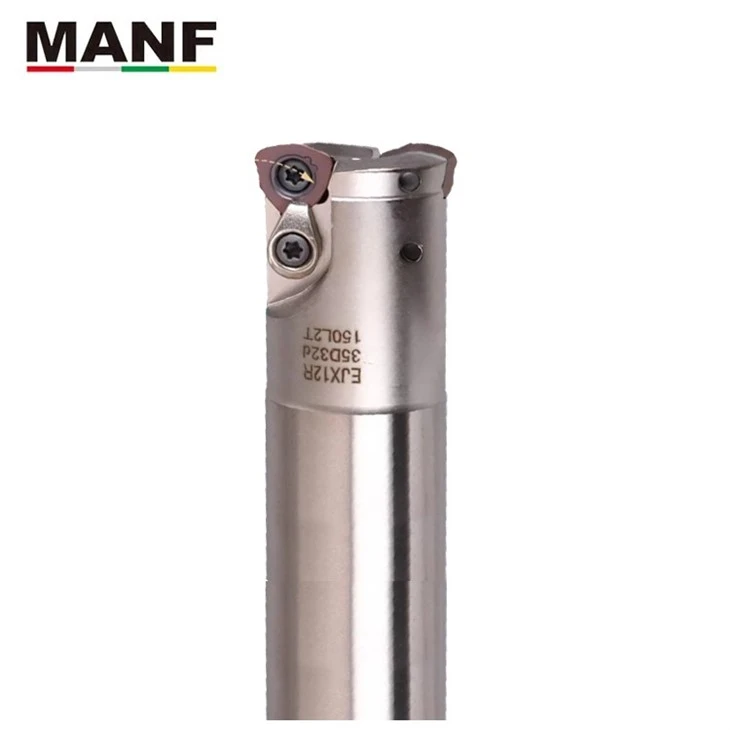

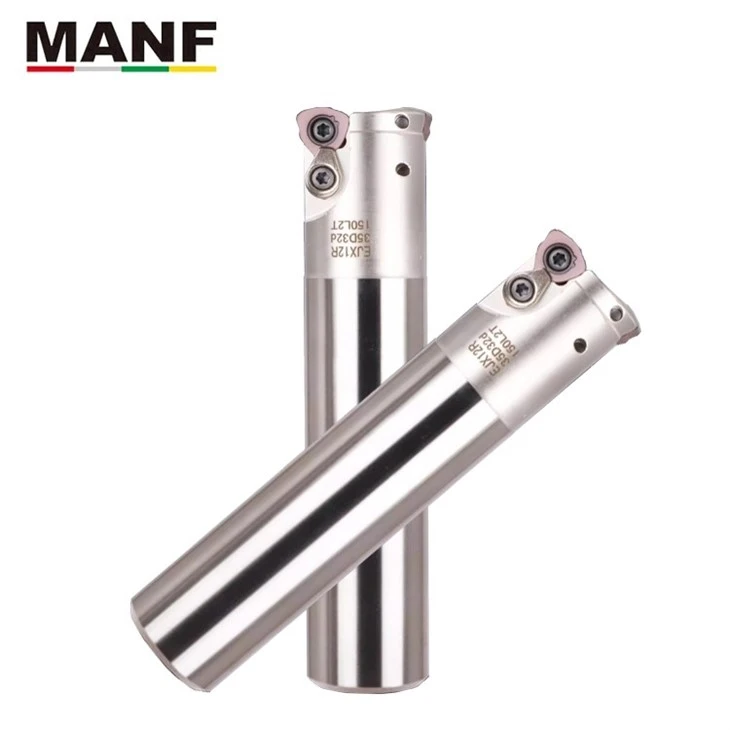

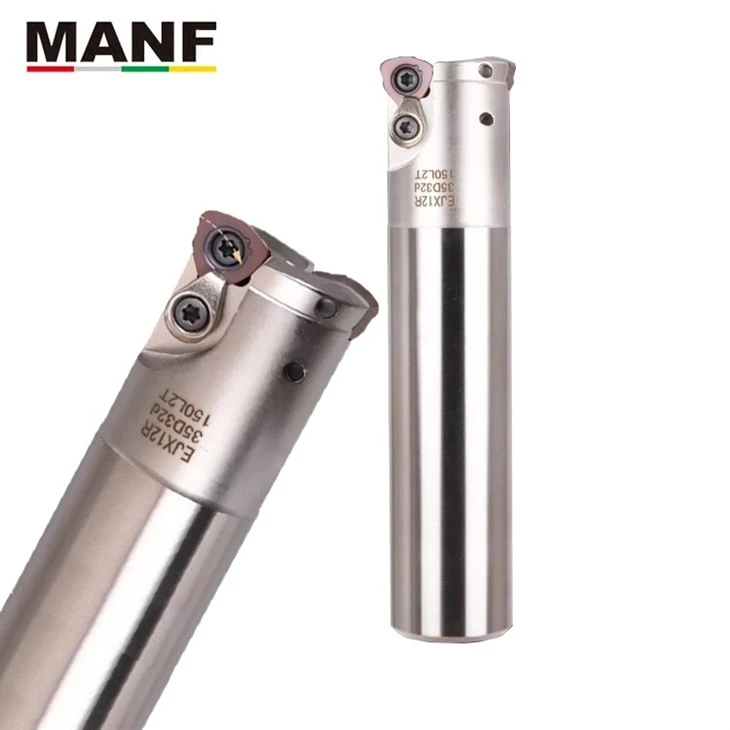

AJX Fast Feed Milling Cutter Holder

AJX Fast Feed Milling Cutter Holder

1.Brand: MANF

2. Name: Fast feed end mill arbor

3. Department List: AJX Fast Feed End Mill Arbor

4. Knife holder material: 42CrMnTi

5. Hard consumption: 42`45°

6.Tool holder accuracy: 0.02

7. Adaptable blade: JDMW series

8. Suitable screws: M2.5*6/M3*7/M4*9

9. Wrench: T8/T10/T15

10. Number of blades: 2T, 3T

11. Suitable for processing: It can be used for cavity processing, corner clearing and shoulder processing, and the amount of rotation and feed cuts is larger than that of ordinary milling cutters.

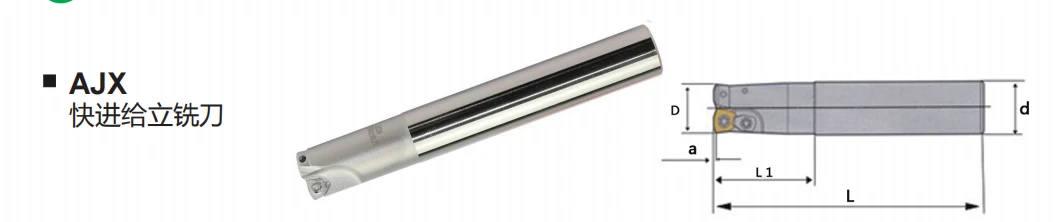

Model	No.of flutes	D	d	L	L1	L2	Insert	Screw	Wrench
AJX06 C16-16-120-2T	2	16	16	120	35		JDMW06	LJ2506	T8
AJX06 C16-16-150-2T	2	16	16	150	35		JDMW06	LJ2506	T8
AJX06 C16-16-200-2T	2	16	16	200	35		JDMW06	LJ2506	T8
AJX06 C16-17-120-2T	2	17	16	120	35		JDMW06	LJ2506	T8
AJX06 C16-17-150-2T	2	17	16	150	35		JDMW06	LJ2506	T8
AJX06 C16-17-200-2T	2	17	16	200	35		JDMW06	LJ2506	T8
AJX08 C20-20-150-2T	2	20	20	150	40		JDMW08	LJ3008	T8
AJX08 C20-20-200-2T	2	20	20	200	40		JDMW08	LJ3008	T8
AJX08 C20-21-150-2T	2	21	20	150	50		JDMW08	LJ3008	T8
AJX08 C20-21-200-2T	2	21	20	200	50		JDMW08	LJ3008	T8
AJX08 C20-22-150-2T	2	22	20	150	40		JDMW08	LJ3008	T8
AJX08 C20-22-200-2T	2	22	20	200	40		JDMW08	LJ3008	T8
AJX09 C25-25-150-2T	2	25	25	150	40		JDMW0903	LJ3508	T10
AJX09 C25-25-200-2T	2	25	25	200	50		JDMW0903	LJ3508	T10
AJX09 C25-25-250-2T	2	25	25	250	50		JDMW0903	LJ3508	T10
AJX09 C25-26-150-2T	2	26	25	150	40		JDMW0903	LJ3508	T10
AJX09 C25-26-200-2T	2	26	25	200	50		JDMW0903	LJ3508	T10
AJX09 C25-26-250-2T	2	26	25	250	50		JDMW0903	LJ3508	T10
AJX12 C32-32-150-3T	3	32	32	150	50		JDMW01204	LJ0409	T15
AJX12 C32-32-200-3T	3	32	32	200	60		JDMW01204	LJ0409	T15
AJX12 C32-32-250-3T	3	32	32	250	60		JDMW01204	LJ0409	T15
AJX12 C32-32-300-3T	3	32	32	300	60		JDMW01204	LJ0409	T15
AJX12 C32-33-150-3T	3	33	32	150	50		JDMW01204	LJ0409	T15
AJX12 C32-33-200-3T	3	33	32	200	50		JDMW01204	LJ0409	T15
AJX12 C32-33-250-3T	3	33	32	250	50		JDMW01204	LJ0409	T15
AJX12 C32-33-300-3T	3	33	32	300	50		JDMW01204	LJ0409	T15
AJX12 C32-35-150-3T	3	35	32	150	50		JDMW01204	LJ0409	T15
AJX12 C32-35-200-3T	3	35	32	200	50		JDMW01204	LJ0409	T15
AJX12 C32-35-250-3T	3	35	32	250	60		JDMW01204	LJ0409	T15
AJX12 C32-35-300-3T	3	35	32	300	60		JDMW01204	LJ0409	T15
AJX12 C32-40-150-3T	3	40	32	150	50		JDMW01204	LJ0409	T15
AJX12 C32-40-200-3T	3	40	32	200	60		JDMW01204	LJ0409	T15
AJX12 C32-40-250-3T	3	40	32	250	60		JDMW01204	LJ0409	T15
AJX12 C32-40-300-3T	3	40	32	300	60		JDMW01204	LJ0409	T15



3.Perfomrance advantage:

AJX Fast Feed Milling Cutter Holder. Strictly select high-quality 42CrMnT alloy steel to greatly improve strength, hardness, wear resistance and toughness, high cutting strength and improved processing efficiency. Double fastening design, screw offset fastening design, so that the blade is grooved in the blade Close fit, strong rigidity, and good processing efficiency .Make the blade groove closely fit to the blade, with strong rigidity and good processing efficiency. Scientific slot design ensures fast cutting and smooth chip removal. It is shock-resistant, anti-shake and durable, providing efficient cutting and long-lasting processing results. High temperature quenching treatment High hardness and not easy to deform , It can be used for strong cutting, with more rotation and feed than ordinary milling cutters. Effectively save man-hours and improve efficiency.
