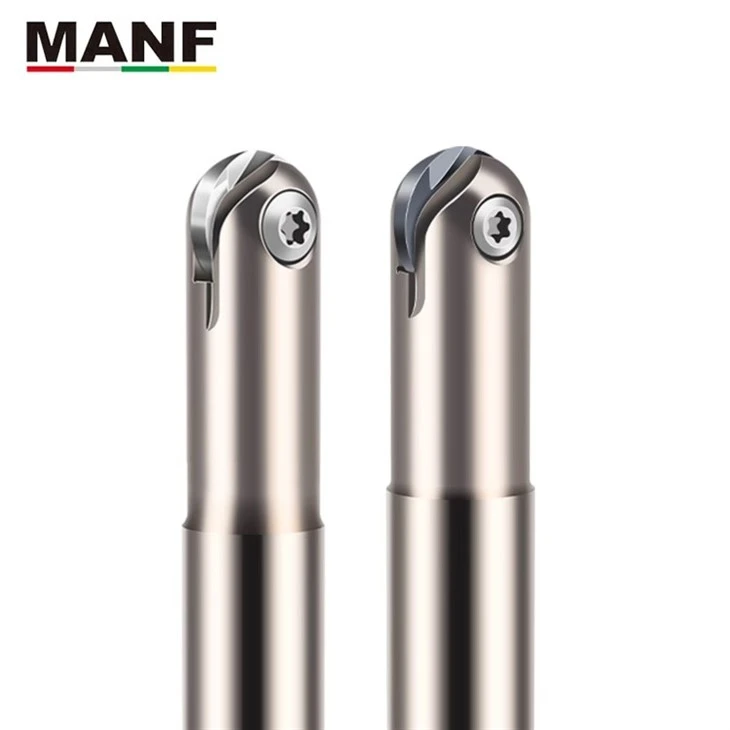

T2139 Milling Holder Indexable Mirror Ball End Mill

T2139 Milling Holder Indexable Mirror Ball End Mill

1.Brand: MANF

2. Name: T2139 fine milling ball head cutter holder

3. Blade: P3200 series (need to be purchased separately)

4. Material: SKD11 material

5. Wrench: T8/T10/T20 T2139

6. Screws: M3*7/M4* 8/M5*10

7. Number of blades: 1T

8. Applicable scenarios: semi-finishing/finishing

9. Applicable machine tools: CNC machining center/engraving machine/engraving machine and other high-speed machines

10. Processing method: Plane profiling surface/spherical surface (irregular arc surface)

11. Advantages and features: The tool holder is made of SKD11 (alloy steel), which is high-strength and earthquake-resistant, and can effectively suppress Control vibration and improve seismic strength. The tool bar is quenched and hardened + high hard coating, high hardness is not easy deformation, can be used for strong cutting, and the amount of rotation and feed is greater than that of ordinary milling cutters, improving work efficiency. operating efficiency



Model	No.of flutes	D	d	L	L1	L2	Insert	Screw	Wrench
T2139 C10-4R-100-1T	1	8	10	100	25		P3200-D08	LJ0307	T8
T2139 C12-4R-130-1T	1	8	12	130	40		P3200-D08	LJ0307	T8
T2139 C16-4R-150-1T	1	8	16	150	40		P3200-D08	LJ0307	T8
T2139 C10-5R-120-1T	1	10	10	120	30		P3200-D10	LJ0408	T10
T2139 C12-5R-150-1T	1	10	12	150	40		P3200-D10	LJ0408	T10
T2139 C16-5R-150-1T	1	10	16	150	40		P3200-D10	LJ0408	T10
T2139 C12-6R-130-1T	1	12	12	130	40		P3200-D12	LJ0510	T20
T2139 C12-6R-150-1T	1	12	12	150	50		P3200-D12	LJ0510	T20
T2139 C16-6R-150-1T	1	12	16	150	50		P3200-D12	LJ0510	T20
T2139 C16-6R-200-1T	1	12	16	200	50		P3200-D12	LJ0510	T20
T2139 C16-8R-150-1T	1	16	16	150	50		P3200-D16	LJ0510	T20
T2139 C16-8R-200-1T	1	16	16	200	60		P3200-D16	LJ0510	T20
T2139 C20-8R-200-1T	1	16	20	200	60		P3200-D16	LJ0510	T20
T2139 C25-8R-250-1T	1	16	25	250	60		P3200-D16	LJ0510	T20
T2139 C20-10R-150-1T	1	20	20	150	50		P3200-D20	LJ0510	T20
T2139 C20-10R-200-1T	1	20	25	200	60		P3200-D20	LJ0510	T20
T2139 C25-10R-250-1T	1	20	32	250	60		P3200-D20	LJ0510	T20
T2139 C32-10R-300-1T	1	20	32	300	60		P3200-D20	LJ0510	T20
T2139 C25-12.5R-150-1T	1	25	25	150	45		P3200-D25	LJ0510	T20
T2139 C25-12.5R-200-1T	1	25	25	200	55		P3200-D25	LJ0510	T20
T2139 C25-12.5R-250-1T	1	25	25	250	60		P3200-D25	LJ0510	T20
T2139 C25-12.5R-300-1T	1	25	25	300	60		P3200-D25	LJ0510	T20
T2139 C32-12.5R-300-1T	1	25	32	300	60		P3200-D25	LJ0510	T20
T2139 C32-15R-150-1T	1	30	32	150	45		P3200-D30	LJ0510	T20
T2139 C32-15R-200-1T	1	30	32	200	55		P3200-D30	LJ0510	T20
T2139 C32-15R-250-1T	1	30	32	250	60		P3200-D30	LJ0510	T20
T2139 C32-15R-300-1T	1	30	32	300	60		P3200-D30	LJ0510	T20
T2139 C32-15R-350-1T	1	30	32	350	60		P3200-D30	LJ0510	T20
T2139 C32-16R-150-1T	1	32	32	150	45		P3200-D32	LJ0510	T20
T2139 C32-16R-200-1T	1	32	32	200	55		P3200-D32	LJ0510	T20
T2139 C32-16R-250-1T	1	32	32	250	60		P3200-D32	LJ0510	T20
T2139 C32-16R-300-1T	1	32	32	300	60		P3200-D32	LJ0510	T20
T2139 C32-16R-350-1T	1	32	32	350	60		P3200-D32	LJ0510	T20





3.Perfomrance advantage:

T2139 fine milling ball cutter holder, hemispherical ball cutter, curved surface finishing, precise R angle, high strength and anti-seismic, made of SKD11 (alloy steel) material, higher strength, can effectively suppress vibration and improve seismic strength. The whole is quenched and hardened, not easily deformed, corrosion-resistant, high-temperature resistant, and has a longer service life. T2139 semi-circular blade, sharp and wear-resistant, smooth chip removal. Suitable for high-speed cutting at higher cutting temperatures, with smooth chip removal and no knife sticking. The ball head has an accurate R angle and is used for semi-finishing and finishing. It will be bright and traceless after processing. The triangular positioning + screw offset fastening design makes the blade and the tool bar fit tightly without gaps, tightening the blade to avoid knife vibration during processing, and the processing effect is good. We use top-center grinding technology to position the top hole at both ends of the tool holder, and use a high-precision top-center grinder to ensure that the diameter of the tool holder handle is coaxial with the diameter of the cutting edge, making the tool holder more concentric and rounder. , the vibration is smaller, the blade is not easy to wear, and the performance is stable.



4.Company advantage:

Kunshan Meiyaxing Hardware Machinery Co., Ltd. is a direct branch of Hong Kong Meiya International Trading Company in China. It has its own tool brand: MANF and is engaged in CNC tool sales and operation services. We provide tungsten steel flat cutters, tungsten steel ball cutters, ball end mills, tungsten steel round nose cutters, round nose end mills, aluminum milling cutters, aluminum end mills, and have reached long-term strategies with a number of well-known production factories Cooperation, both parties jointly develop, design, and produce teams, advanced equipment, and constantly innovative and progressive technical strength. They are committed to mutual cooperation and are guided by technical services to form a mutually dependent industrial chain to solve various processing problems for processing and manufacturing enterprises. . If you have any questions about Manhu knives, please call us for consultation or negotiation.
