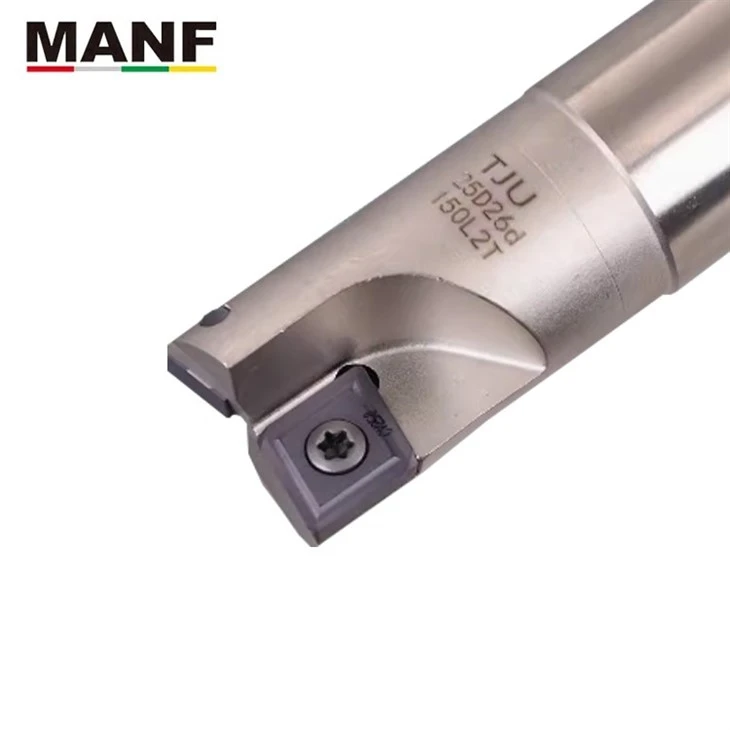

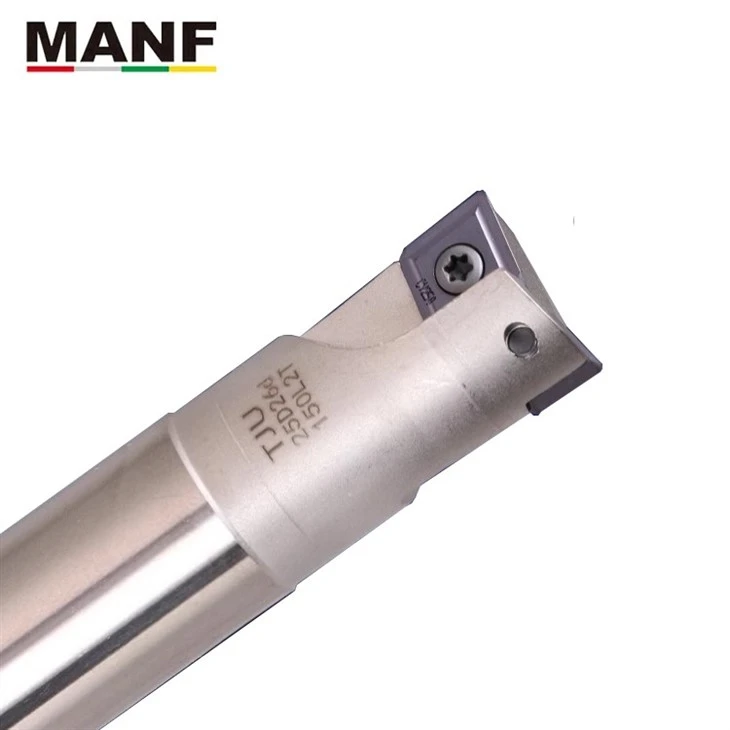

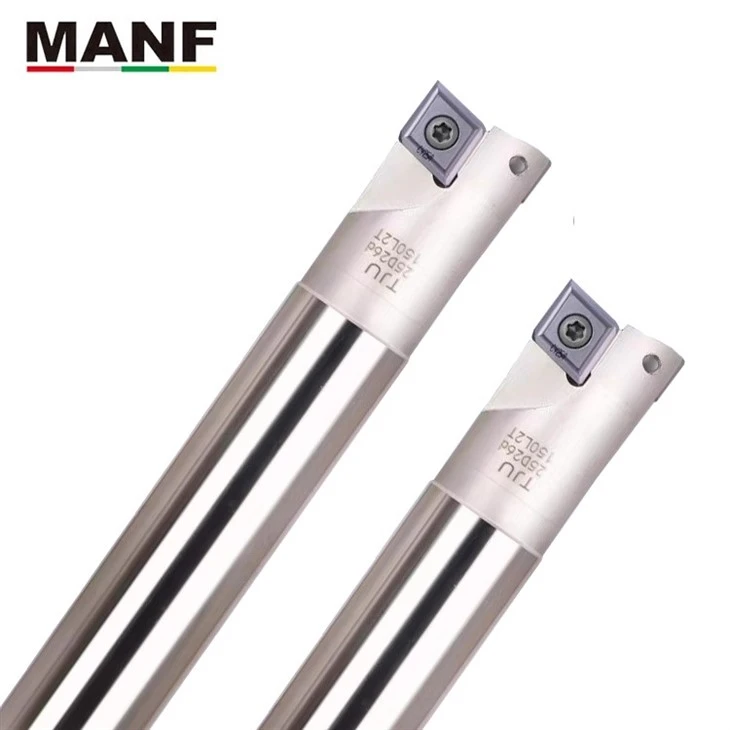

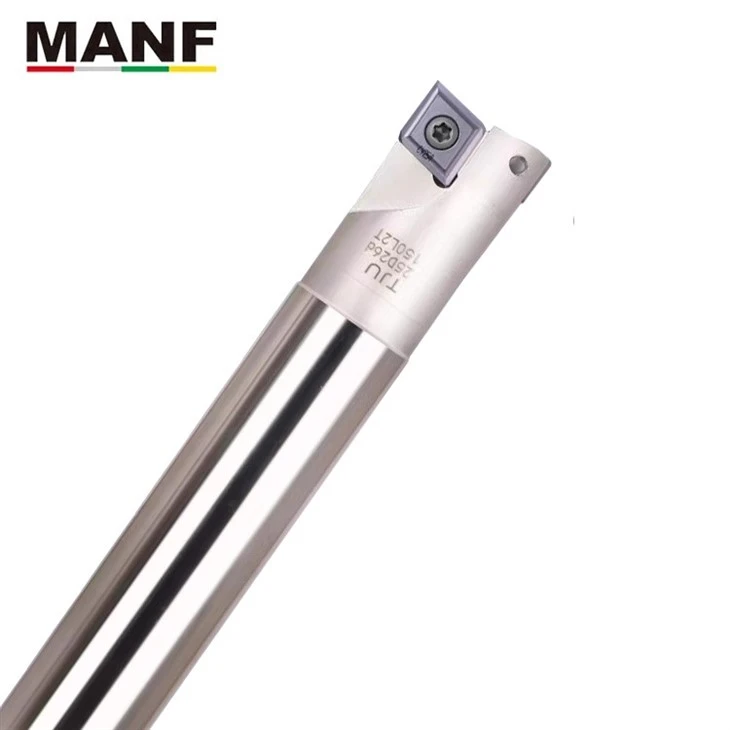

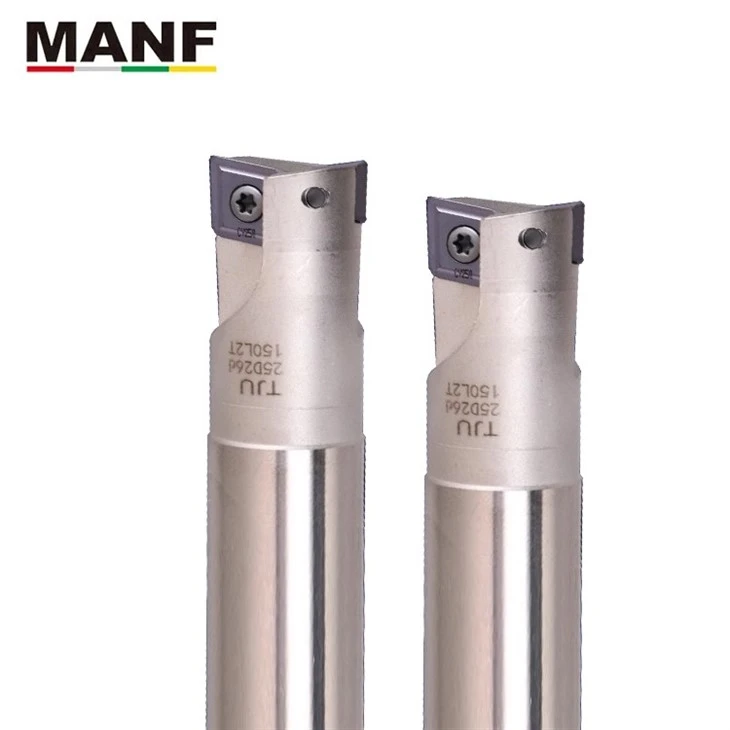

TJU Milling Cutter Holder

TJU Through center drill End Mill

1.Brand: MANF

2. Name: Through center drill End Mill

3. Department List: TJU Milling Cutter Holder

4. Knife holder material: 42CrM0

5. Hard consumption: 42`45°

6.Tool holder accuracy: 0.02

7. Adaptable blade: CCMT06/CPMT08/CPMT09/CPMT12/CPMT16/CPMT19

8. Suitable screws: M2.5*6/M4*9/M5*12/M6*18

9. Wrench: T8/T15/T20/T25

10. Number of blades: 1T, 2T

11. Suitable for processing: It Can be used for cavity processing, corner cleaning and shoulder processing rotation And the cutting amount of feed is more than that of ordinary milling cutters.

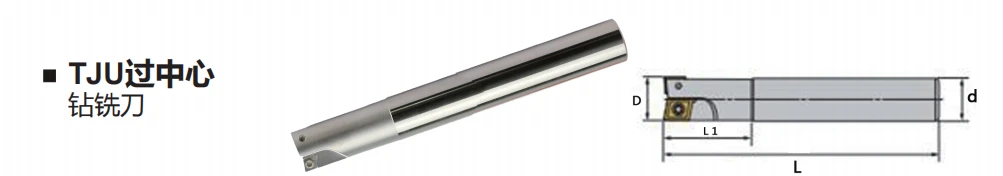

Model	No.of flutes	D	d	L	L1	L2	Insert	Screw	Wrench
TJU C10-10-100-1T	1	10	10	100	25		CCMT060204	LJ2506	T8
TJU C12-12-130-1T	1	12	12	130	30		CPMT080204Z	LJ2506	T8
TJU C16-16-120-2T	2	16	16	120	40		CCMT060204	LJ2506	T8
TJU C16-16-150-2T	2	16	16	150	50		CCMT060204	LJ2506	T8
TJU C16-16-200-2T	2	16	16	200	60		CCMT060204	LJ2506	T8
TJU C25-16-250-2T	2	16	25	250	60		CPMT080204Z	LJ2506	T8
TJU C16-17-120-2T	2	17	16	120	40		CPMT080204Z	LJ2506	T8
TJU C16-17-150-2T	2	17	16	150	50		CPMT080204Z	LJ2506	T8
TJU C16-17-200-2T	2	17	16	200	60		CPMT080204Z	LJ2506	T8
TJU C20-20-120-2T	2	20	20	120	40		CPMT080204Z	LJ2506	T8
TJU C20-20-150-2T	2	20	20	150	50		CCMT060204	LJ0409	T15
TJU C20-20-200-2T	2	20	20	200	60		CCMT060204	LJ0409	T15
TJU C25-20-250-2T	2	20	25	250	60		CCMT060204	LJ0409	T15
TJU C20-21-150-2T	2	21	20	150	40		CCMT060204	LJ0409	T15
TJU C20-21-200-2T	2	21	20	200	50		CCMT060204	LJ0409	T15
TJU C25-25-150-2T	2	25	25	150	50		CPMT090308	LJ0409	T15
TJU C25-25-200-2T	2	25	25	200	60		CPMT090308	LJ0409	T15
TJU C25-25-250-2T	2	25	25	250	70		CPMT120308Z	LJ0409	T15
TJU C32-25-300-2T	2	25	32	300	70		CPMT120308Z	LJ0409	T15
TJU C25-26-150-2T	2	26	25	150	50		CPMT120308Z	LJ0409	T15
TJU C25-26-200-2T	2	26	25	200	60		CPMT120308Z	LJ0409	T15
TJU C25-26-250-2T	2	26	25	250	60		CPMT120308Z	LJ0409	T15
TJU C32-32-150-2T	2	32	32	150	60		CPMT120308Z	LJ0409	T15
TJU C32-32-200-2T	2	32	32	200	60		CPMT120308Z	LJ0409	T15
TJU C32-32-250-2T	2	32	32	250	60		CPMT120308Z	LJ0409	T15
TJU C32-32-300-2T	2	32	32	300	60		CPMT120308Z	LJ0409	T15
TJU C32-32-350-2T	2	32	32	350	60		CPMT120308Z	LJ0409	T15
TJU C32-33-150-2T	2	33	32	150	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-33-200-2T	2	33	32	200	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-33-250-2T	2	33	32	250	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-33-300-2T	2	33	32	300	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-33-350-2T	2	33	32	350	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-35-150-2T	2	35	32	150	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-35-200-2T	2	35	32	200	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-35-250-2T	2	35	32	250	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-35-300-2T	2	35	32	300	60		CPMT120308 CPMT160408Z	LJ0512	T20
TJU C32-35-350-2T	2	35	32	350	60		CPMT160408 CPMT160408Z	LJ0618 LJ0512	T25 T20
TJU C32-40-150-2T	2	40	32	150	60		CPMT160408 CPMT160408Z	LJ0618 LJ0512	T25 T20
TJU C32-40-200-2T	2	40	32	200	60		CPMT160408 CPMT160408Z	LJ0618 LJ0512	T25 T20
TJU C32-40-250-2T	2	40	32	250	60		CPMT160408 CPMT160408Z	LJ0618 LJ0512	T25 T20
TJU C32-40-300-2T	2	40	32	300	60		CPMT160408 CPMT160408Z	LJ0618 LJ0512	T25 T20
TJU C32-40-350-2T	2	40	32	350	60		CPMT160408 CPMT160408Z	LJ0618 LJ0512	T25 T20
TJU C32-40-400-2T	2	40	32	400	60		CPMT160408 CPMT160408Z	LJ0618 LJ0512	T25 T20





3.Perfomrance advantage:

TJU Milling Cutter Holder, vacuum quenched, anti-shock tool holder heat treated at 1000 degrees high temperature to greatly improve the strength and toughness of the cutter body. Seams are tight. The blade does not chip. .The tool holder is heat treated first and then tapped, which adds a lot of difficulty when producing the tool holder. When thread tapping The consumption is a low-priced tool bar. Special tapping method ensures that the screw teeth and blade position do not produce physical Deformation, the blade and the blade position are tightly matched, and the blade edge does not chip. Hardened tool holder for easy cutting .The tool handle uses a quenching and hardening process + high hardness without deformation, which can be used for strong cutting rotation and feed amount. more than General milling cutter, effectively saving man-hours and improving efficiency .MANF cutting tools are a good helper for your processing. Focused, professional and more assured.



4.Company advantage:

Kunshan Meiyaxing Hardware Machinery Co., Ltd. Committed to professionally creating CNC machining tools to make processing simple , Make products more perfect From design and R&D, production management, sales and service, we want to give you more and more out-of-the-box People's experience, this is our original intention. It is the direct branch of Hong Kong Meiya International Trading Company in China. It has its own tool brand: MANF and is engaged in CNC tool sales and operation services. We provide tungsten steel flat milling cutters, tungsten steel ball cutters, ball nose end mills, tungsten steel round nose milling cutters, round nose end mills, aluminum milling cutters, aluminum end mills, and have reached long-term agreements with many well-known manufacturers Strategic factory cooperation, both parties jointly develop, design, and produce teams, advanced equipment, and continuous innovation and progress in technical strength. They are committed to mutual cooperation and are oriented by technical services to form an interdependent industrial chain to solve various processing problems for processing and manufacturing enterprises. . If you have any questions about Manhu Knife, please feel free to call us for consultation or negotiation.
