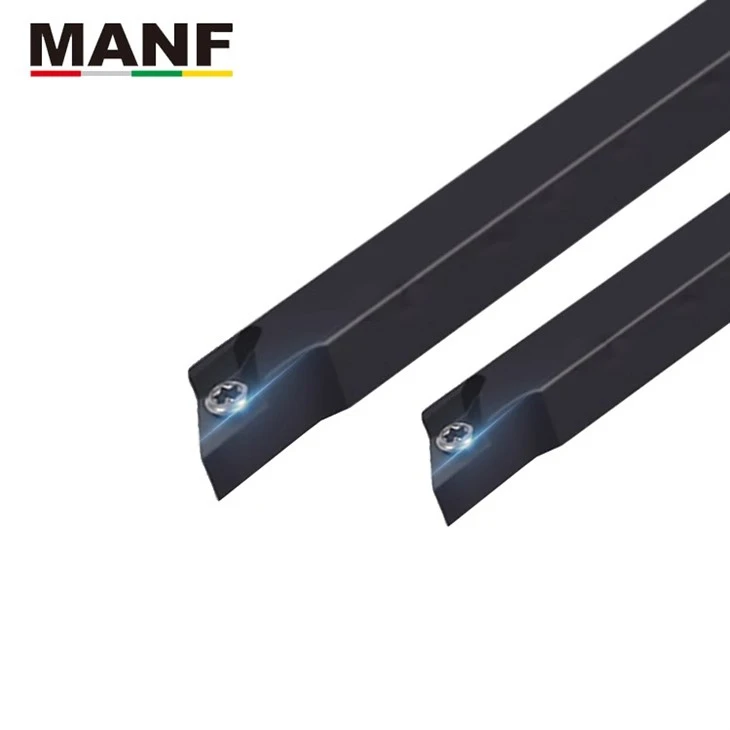

SDJCR SDJCL Mini Lathe LToolholder



Product Name: SDJCR SDJCL Mini lathe Toolholder

Brand name: MANF

Place of origin: China

Raw material: 40CrMo

Clamping Type: Mini lathe Toolholder

Diameter: 10-12mm

Length: 125mm

Color of surface: Black

Insert: DCMT0702 DCGT0702 DCMT11T3 DCGT11T3

Usage: Numerical control machine tools, CNC machine tools

Insert processing materials: Copper and aluminum non-ferrous metals, steel, stainless steel, cast iron, etc





SDJCR-1010K07 SDJCL-1010K07

SDJCR-1212K07 SDJCL-1212K07

SDJCR-1010K11 SDJCL-1010K11

SDJCR-1212K11 SDJCL-1212K11







Type	Insert	Specification						Screw	Wrench
		b	h	L1	h1	f	L1
SDJCR/L-1010K07	DC££0702££	10	10	125	10	10	16	M2.5x7	T8
SDJCR/L-1212K07		12	12	125	12	12	16
SDJCR/L-1010K11	DC££11T3££	10	10	125	10	10.5	22	M4x10	T15
SDJCR/L-1212K11		12	12	125	12	12.5	22





SDJCR SDJCL mini lathe tool holder, our tool holder is specially used for SDJCR 95 degree centering machine. The tool holder is made of 40Cr material, which improves work efficiency by 30%. The tool holders are processed after quenching to achieve higher precision.



Using the free forging process, the process means are higher, which can effectively extend the service life of the tool. This tool holder is a special tool holder for centering machines. It is different from ordinary CNC lathe tool holders. This tool holder can effectively avoid mutual interference problems during the machining process. Blades equipped with MANF have a longer service life.



MANF brand is one of the largest manufacturers and distributors of SDJCR special tool bar in China. All of our tool bars are imported steel, the quality is more stable, and we have a professional technical team, from the initial selection to the later after-sales service, we have a complete set of processes to solve customers' worries. We also accept the customization of non-standard products, can provide corresponding discounts according to the number of customers, customers can spend the least money to buy the most cost-effective products. Our delivery speed is also fast, the use of stable logistics to ensure the accurate delivery of products to your hands.





We use DHL, UPS, Fedex, China Post and other transportation methods, convenient and accurate delivery to you.
