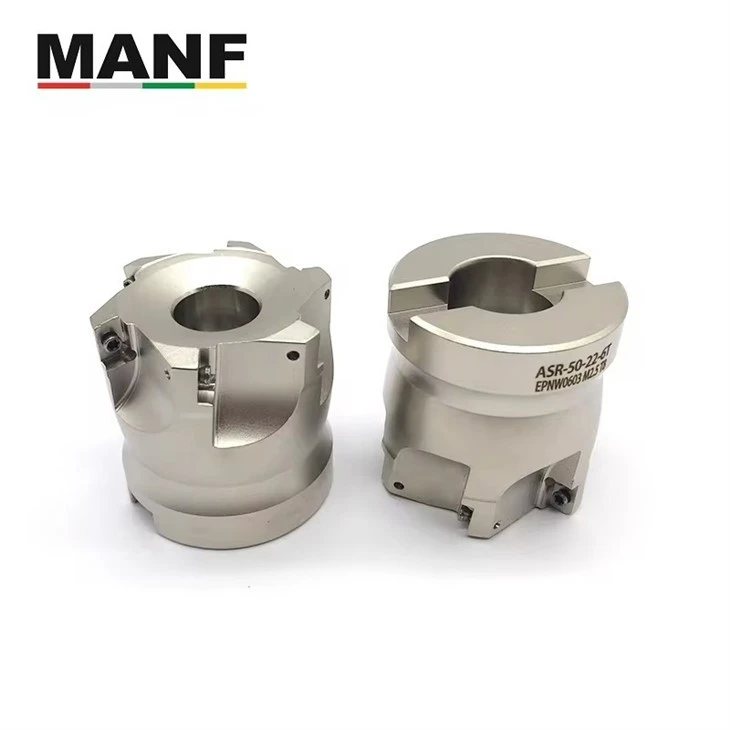

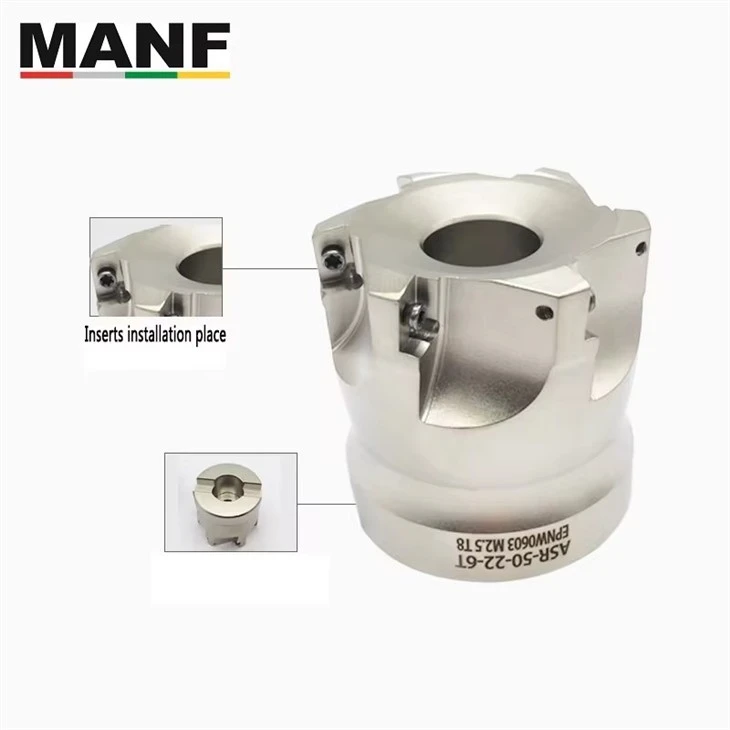

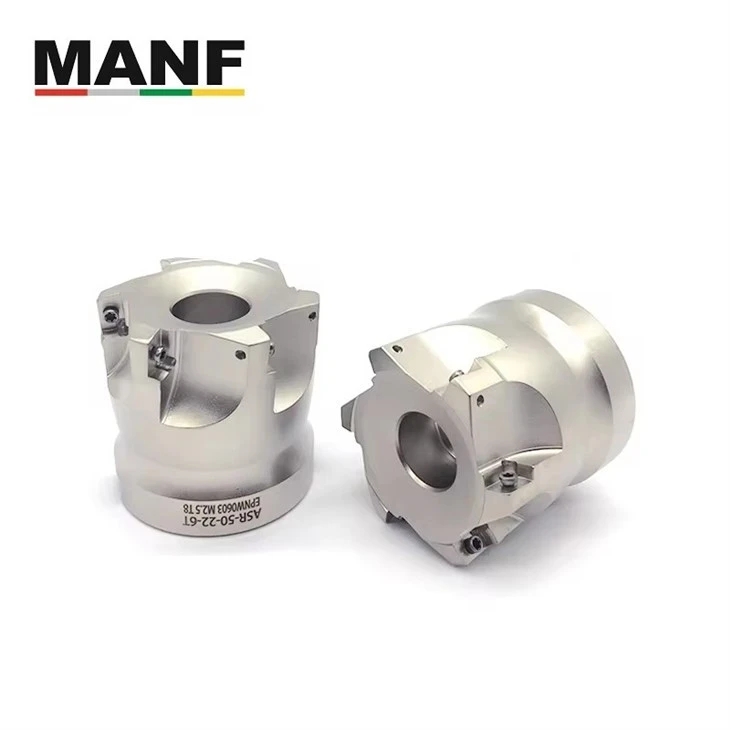

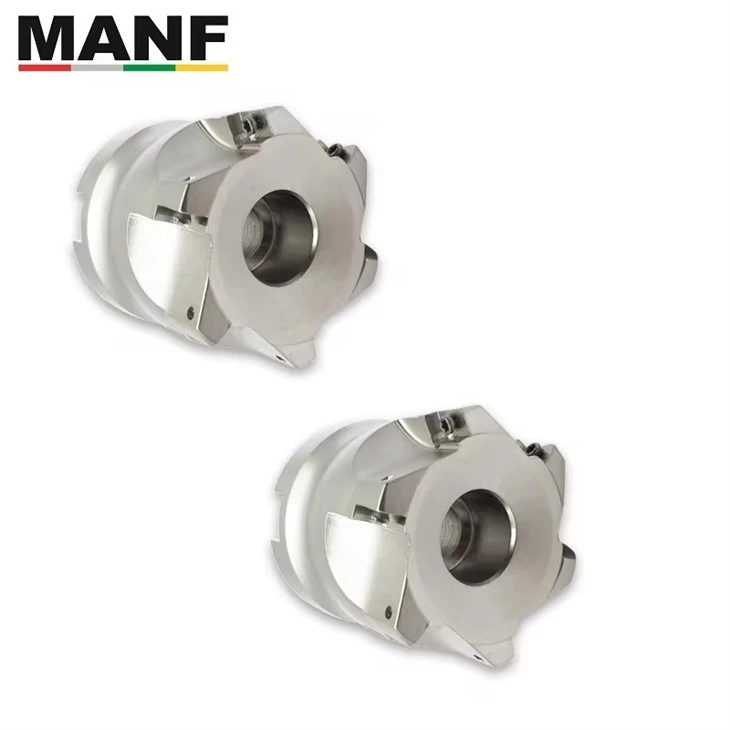

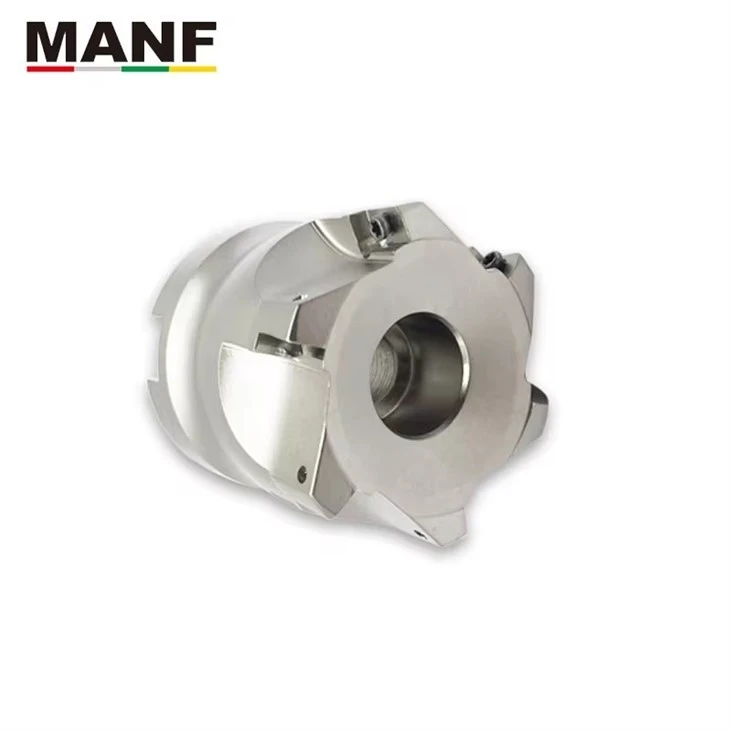

ASR High Feed Face Cutter

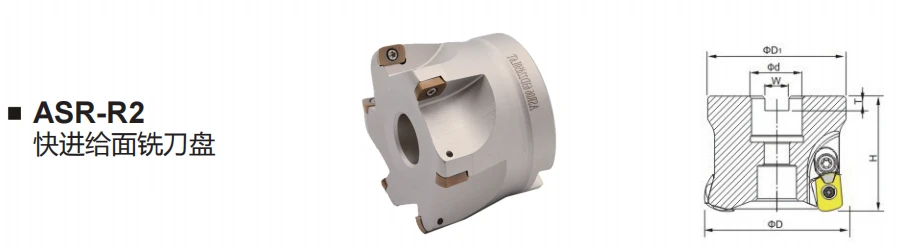

ASR-R2 High Feed Face Cutter

1.Brand: MANF

2. Name: High Feed Face Cutter

3. Department List: ASR-R2 High Feed Face Cutter

4. Knife holder material: 42CrM0

5. Hard consumption: 42`45°

6.Tool holder accuracy: 0.02

7. Adaptable Insert: EPNW0803

8. Suitable screws: 25*6

9. Wrench: T8

10. Number of blades: 6T

11. Processing scene: ASR High Feed Face Cutter surface high hard treatment, the pressure plate thickened and thicker, stronger
The clamping force, the blade is not easy to loosen. The use of blades is economical and suitable
High, large chip space, good chip removal, cone design, strong steel.

Model	No.of flutes	D	d	H	Insert	Screw	Wrench
ASR06-50-22-6T	6	50	22	47	EPNW0803N8	LJ2506	T8
ASR06-63-22-6T	6	63	22	47	EPNW0803N8	LJ2506	T8







3.Perfomrance advantage:

MANF ASR High Feed Face Cutter. Selected steel and hardened. The cutter body is carefully made of alloy steel, which can effectively reduce the vibration of the tool handle during processing. Protect machine tools and reduce blade wear. Tightly stitched blade does not break. The cutter head is first heat treated and then tapped, which adds a lot of difficulty to the production of the cutter head. The special tapping method ensures that the screw teeth and the blade position do not cause physical deformation, the blade and the blade position are tightly stitched together, and the knife edge does not break. The cutterhead uses a quench hardening process and a high hard coating.High hardness is not easy to deform, and can be used for hard cutting to effectively save working hours and improve efficiency.



4.Company advantage:

Kunshan Meiyaxing Hardware Machinery Co., Ltd. Committed to professionally creating CNC machining tools to make processing simple , Make products more perfect From design and R&D, production management, sales and service, we want to give you more and more out-of-the-box People's experience, this is our original intention. It is the direct branch of Hong Kong Meiya International Trading Company in China. It has its own tool brand: MANF and is engaged in CNC tool sales and operation services. We provide tungsten steel flat milling cutters, tungsten steel ball cutters, ball nose end mills, tungsten steel round nose milling cutters, round nose end mills, aluminum milling cutters, aluminum end mills, and have reached long-term agreements with many well-known manufacturers Strategic factory cooperation, both parties jointly develop, design, and produce teams, advanced equipment, and continuous innovation and progress in technical strength. They are committed to mutual cooperation and are oriented by technical services to form an interdependent industrial chain to solve various processing problems for processing and manufacturing enterprises. . If you have any questions about Manhu Knife, please feel free to call us for consultation or negotiation.
