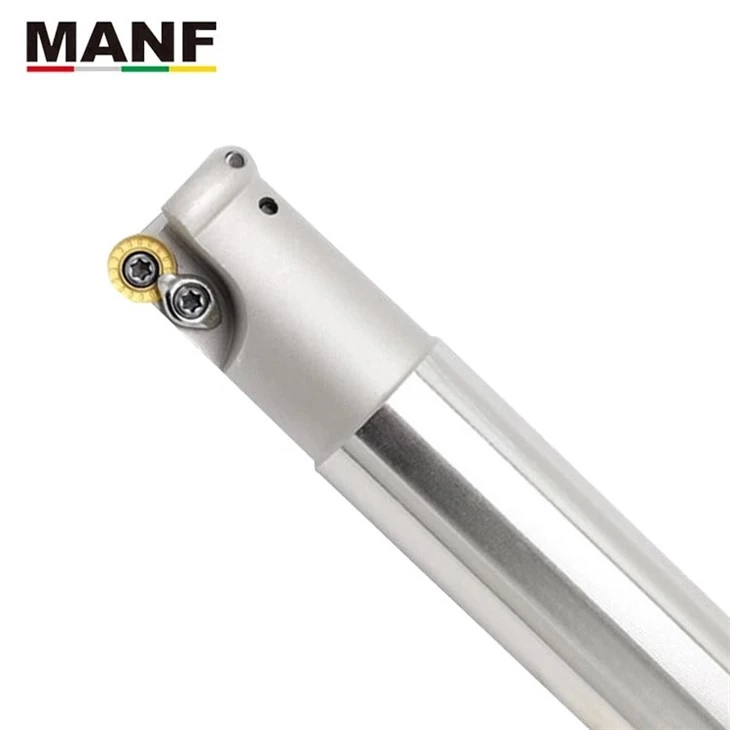

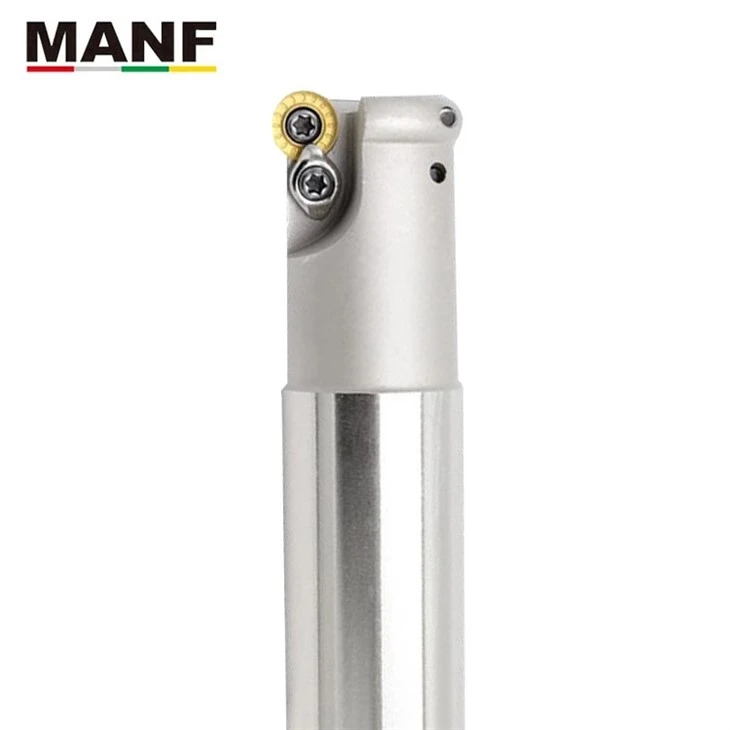

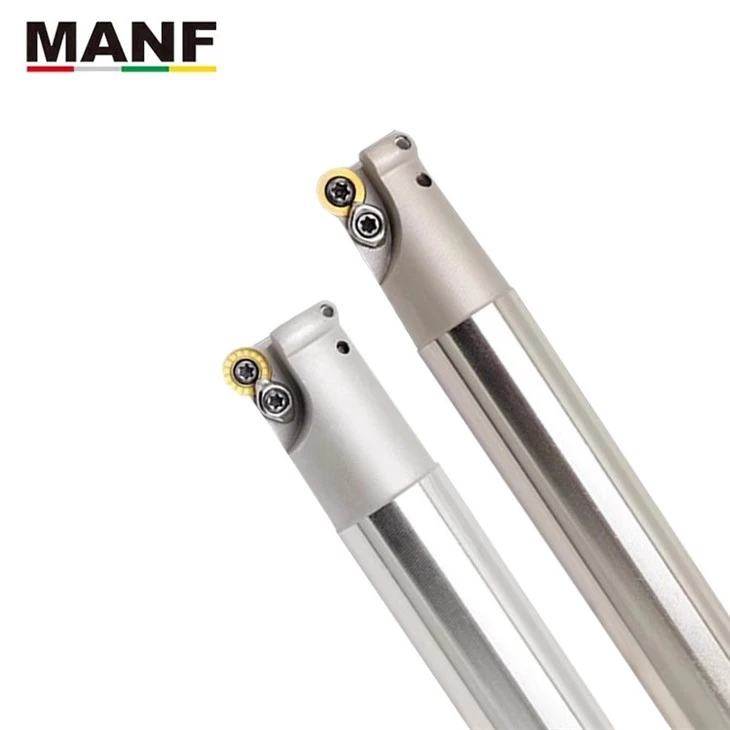

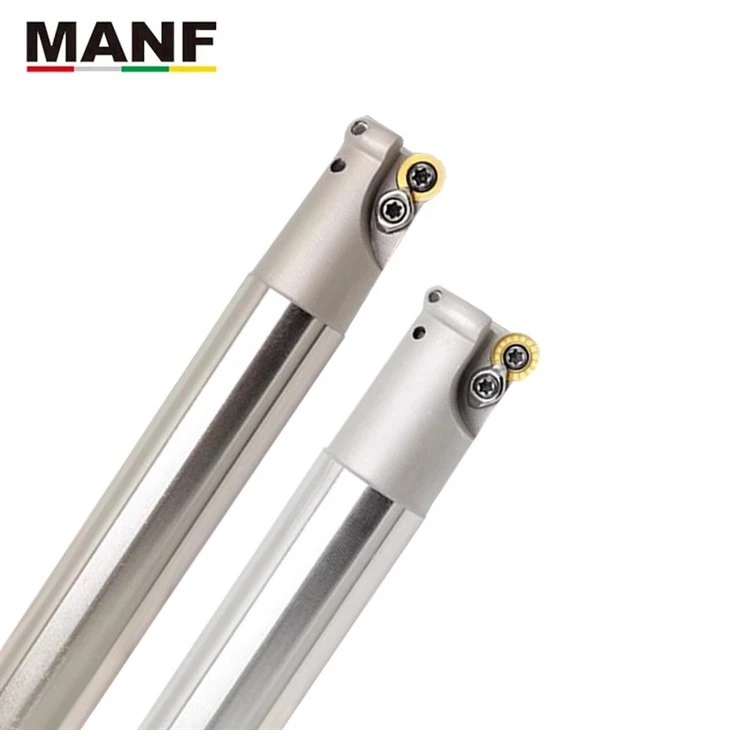

TR Round Nose Milling Cutter

TRS Round Insert End Mill

1.Brand: MANF

2. Name: Round Insert End Mill

3. Department List: TR Round nose Milling Cutter

4. Knife holder material: 42CrM0

5. Hard consumption: 42`45°

6.Tool holder accuracy: 0.02

7. Adaptable blade: RCKT/RCMT/RPKT/RPMT

8. Suitable screws: M4*9

9. Wrench: T15

10. Number of blades: 2T, 3T

11. Processing scenarios: rough machining, finishing machining, excavation processing

Model	No.of flutes	D	d	L	L1		Insert	Screw	Wrench
TR200 C24-5R25-150-2T	2	25	24	150	40		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C24-5R25-200-2T	2	25	24	200	50		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R25-150-2T	2	25	25	150	50		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R25-200-2T	2	25	25	200	60		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R25-250-2T	2	25	25	250	70		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R26-150-2T	2	26	25	150	50		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R26-200-2T	2	26	25	200	60		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R26-250-2T	2	26	25	250	70		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R30-150-2T	2	30	25	150	48		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R30-200-2T	2	30	25	200	50		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-5R30-250-2T	2	30	25	250	60		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C32-5R35-150-3T	3	35	32	150	50		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C32-5R35-200-3T	3	35	32	200	60		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C32-5R35-250-3T	3	35	32	250	70		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C32-5R35-300-3T	3	35	32	300	70		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C32-5R35-350-3T	3	35	32	350	70		RCKT10T3M0 RCMT10T3M0	LJ0409	T15
TR200 C25-6R32-150-2T	2	32	25	150	50		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C25-6R32-200-2T	2	32	25	200	60		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C25-6R32-250-2T	2	32	25	250	70		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R32-150-2T	2	32	32	150	50		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R32-200-2T	2	32	32	200	60		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R32-250-2T	2	32	32	250	70		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R35-150-3T	3	35	32	150	50		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R35-200-3T	3	35	32	200	60		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R35-250-3T	3	35	32	250	70		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R40-200-3T	3	40	32	200	60		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R40-250-3T	3	40	32	250	70		RPKT1204M0 RPMT1204M0	LJ0409	T15
TR200 C32-6R40-300-3T	3	40	32	300	70		RPKT1204M0 RPMT1204M0	LJ0409	T15







3.Perfomrance advantage:

TR Round nose Milling Cutter. Made of high-quality steel, high-efficiency earthquake-resistant alloy steel. The alloy steel selected for earthquake resistance can also effectively suppress vibration and has superior earthquake resistance. Seam-fitting and snug fit. The blade is installed without gaps and the bottom surface is close to the tool holder. Reduce resonance generated during processing and avoid blade loss caused by vibration. It effectively avoids air space and prevents friction. The screw hole position and the screw bevel form a triangular positioning, so that the blade and tool bar do not rotate during processing and the blade does not break during processing. Hardened by quenching and not easily deformed. It is not easy to deform using quenching and hardening. Can be used for powerful milling to improve efficiency.



4.Company advantage:

Kunshan Meiyaxing Hardware Machinery Co., Ltd. Committed to professionally creating CNC machining tools to make processing simple , Make products more perfect From design and R&D, production management, sales and service, we want to give you more and more out-of-the-box People's experience, this is our original intention. It is the direct branch of Hong Kong Meiya International Trading Company in China. It has its own tool brand: MANF and is engaged in CNC tool sales and operation services. We provide tungsten steel flat milling cutters, tungsten steel ball cutters, ball nose end mills, tungsten steel round nose milling cutters, round nose end mills, aluminum milling cutters, aluminum end mills, and have reached long-term agreements with many well-known manufacturers Strategic factory cooperation, both parties jointly develop, design, and produce teams, advanced equipment, and continuous innovation and progress in technical strength. They are committed to mutual cooperation and are oriented by technical services to form an interdependent industrial chain to solve various processing problems for processing and manufacturing enterprises. . If you have any questions about Manhu Knife, please feel free to call us for consultation or negotiation.
